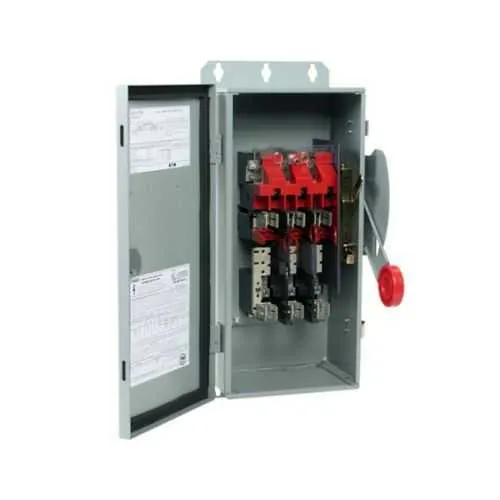

Eaton DH361FDK-GCL Fusible Safety Switch - UL Listed
Part Number: DH361FDK-GCL
Quick Summary
Eaton heavy duty fusible safety switch provides reliable isolation for industrial control panels and service entrances. Maintenance teams often contend with dust, corrosion, and time-consuming wiring when upgrading power distribution. UL Listed, NEMA 12/3R enclosure protection, and NEC 230.62 compliant barriers provide reliability in harsh environments. Designed as a three-pole, 600 V mill-duty solution, it reduces downtime and streamlines service-entrance installations. This model accepts #14-#2 Cu/Al conductors, supports a Neutral Kit for service entrances, and can be field modified to meet NEMA 3R rainproof requirements when a factory drain hole is opened. Users benefit from easy maintenance, long service life, and reduced total cost of ownership through compatible accessories and standard components.
Product Information
Extended Description
DH361FDK-GCL Eaton: Eaton Heavy duty single-throw fused safety switch, Mill-duty, dust-tight, 30 A, NEMA 12/3R, Painted galvanized steel, Class H, Three-pole, Three-wire, 600 V, Max Hp: 7.5, 10/ 15, 20 hp (1/3PH @480, 600 V), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH361FDK-GCL
UPC
782114889688
Product Length/Depth
20 in
Product Height
8.5 in
Product Width
9.5 in
Product Weight
22 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Suitable for service entrance use with a Neutral Kit installed. Can be field modified to meet NEMA 3R rainproof requirements when a factory provided drain hole is opened.
Enclosure
NEMA 12, NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Wire size
#14-2 AWG Cu/Al
Amperage Rating
30A
HP rating - max
7.5, 10/ 15, 20 hp (1/3PH @480, 600 V)
NEMA rating
NEMA 12/3R
Voltage rating
600 V
Product Category
Heavy Duty, Mill-duty
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Eaton Specification Sheet - DH361FDK-GCL
Feature: Heavy-duty, three-pole fusible safety switch design. Business Impact: Delivers fast, reliable isolation and improves protective coordination for motor circuits, reducing unplanned downtime. Application: Ideal for service entrances and industrial control panels in manufacturing and process environments. Feature: Dust-tight and weather-resilient enclosure options. Business Impact: Minimizes corrosion and dust ingress, extending component life in harsh environments and reducing maintenance cycles. Application: Dry, dusty, or outdoor plant areas requiring robust protection. Feature: Wide electrical ratings and motor support. Business Impact: Supports 30 A at 600 V and motors up to 7.5–20 hp (1/3 PH @480–600 V), enabling versatile control and scalable plant layouts. Application: Mills, conveyors, and packaging lines needing reliable motor control. Feature: Fuse class and configuration. Business Impact: Class H fusing provides predictable protection with fusible without neutral configuration, improving safety and serviceability. Application: 3-wire installations with straightforward field adjustments. Feature: Conductor compatibility and service-entrance readiness. Business Impact: Accepts #14-#2 Cu/Al, with Neutral Kit options and field NEMA 3R modification to adapt to evolving facilities. Application: Start-up projects, retrofits, and expansions in diverse industries. Feature: Certifications, warranty, and documentation. Business Impact: UL Listed with NEC 230.62 barrier compliance reduces regulatory risk and supports audit readiness. Application: Compliance-driven deployments across plant floors and distribution rooms.
Get a Quick Quote for a Eaton DH361FDK-GCL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH361FDK-GCL?
Enquire Now
FAQs
The DH361FDK-GCL is a three-pole, 600 V device designed for service entrances and industrial panels. It supports #14-#2 Cu/Al conductors and can be equipped with a Neutral Kit. The enclosure is rated NEMA 12, with option for NEMA 3R rainproofing if a drain hole is opened. Ensure appropriate mounting, clearances, and adherence to NEC 230.62 for barriers.
Yes, the DH361FDK-GCL is UL Listed. It also conforms to NEMA 12/3R enclosure ratings and NEC 230.62 barrier requirements. These certifications support compliance in commercial and industrial facilities and assist with regulatory audits and safety programs.
This model is ideal for service entrances, motor control panels, and mill duties where reliable isolation and protection are needed. It supports motors up to 20 hp (1/3 PH at 480–600 V) and is suitable for dust-prone or outdoor environments when correctly configured for NEMA 3R rainproofing.
Class H fuses offer high interrupting ratings and dependable short-circuit protection for demanding loads. The mill-duty enclosure provides rugged durability against dust, humidity, and mechanical wear, reducing maintenance frequency and extending component life in processing plants and packaging lines.
The DH361FDK-GCL can lower total cost of ownership through reduced downtime, reliable protection for critical motors, and compatibility with Neutral Kits for service entrances. Its UL listing and weather-resistant enclosure help meet compliance with minimal retrofit complexity, supporting faster project completion and long-term reliability.
