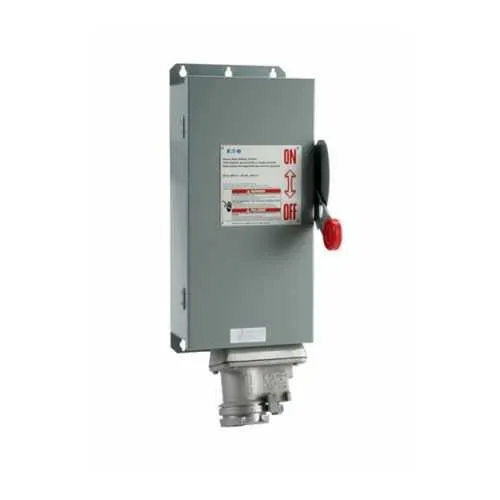

Eaton DH361FDK2WRW Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH361FDK2WRW
Quick Summary
Eaton DH361FDK2WRW heavy duty fusible safety switch isolates power for industrial machinery. When downtime, miswiring, or slow fault isolation threaten productivity, this unit’s rugged design and fast access window help teams diagnose issues quickly and safely. UL Listed, with a NEMA 12/3R enclosure and Class H fuse provisions, it is built for 600 V systems in harsh environments. Designed to streamline panel builds and service routines, it supports reliable electrical protection and circuit control while minimizing installation time and maintenance costs for automation projects. The windowed design enables visual verification of fuse status without opening the enclosure, reducing exposure and speeding maintenance. With robust galvanized steel construction and UL certification, it delivers long service life in industrial protection & circuit control applications.
Product Information
Extended Description
DH361FDK2WRW Eaton: Eaton Heavy duty receptacle safety switch, Crouse-Hinds®ARKTITE receptacle, with window, 30 A, NEMA 12/3R, Painted galvanized steel, Class H, Three-pole, Three-wire, 600 V, Max Hp: 7.5, 10/ 15, 20 hp (1/3PH @480, 600 V), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH361FDK2WRW
UPC
786685889306
Product Length/Depth
10.5 in
Product Height
29.75 in
Product Width
13.75 in
Product Weight
26 lb
Certifications
UL Listed
Enclosure
NEMA 12, NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
Heavy duty receptacle safety switch
Wire size
#14-2 AWG Cu/Al
Amperage Rating
30A
HP rating - max
7.5, 10/ 15, 20 hp (1/3PH @480, 600 V)
NEMA rating
NEMA 12/3R
Voltage rating
600 V
Feature: Heavy-duty receptacle safety switch with window. Business Impact: Facilitates quick visual fuse status checks, reducing diagnostic time and exposure during maintenance. Application: Ideal for control panels and motor circuits in conveyors and manufacturing lines. Feature: Painted galvanized steel enclosure (NEMA 12, NEMA 3R). Business Impact: Enhances corrosion resistance and versatility for indoor and sheltered outdoor environments, lowering replacement costs. Application: Suitable for harsh factory floors and dusty environments. Feature: Fuse configuration Class H, Fusible without neutral, Three-pole, Three-wire. Business Impact: Provides flexible, safe protection for 3-phase systems with straightforward wiring; minimizes field rework. Application: Controls heavy loads while maintaining compliance in electrical protection & circuit control. Feature: Electrical ratings 30A, 600 V, HP rating up to 20 hp (1/3PH @480/600 V). Business Impact: Supports motor loads with clear headroom, reducing equipment downtime and enabling scalable automation. Application: Best for mid-size motors and automation panels needing robust protection. Feature: Wire size #14-2 AWG Cu/Al and UL Listed. Business Impact: Simplifies panel wiring and procurement while meeting industry standards. Application: Fastens integration with standard conductors and proven safety protocols. Feature: Overall dimensions and weight (10.5 in depth, 13.75 in width, 29.75 in height, 26 lb). Business Impact: Predictable footprint aids in cabinet planning and retrofit projects, lowering installation time. Application: Retrofit and new builds requiring compact yet capable safety switching solutions.
Get a Quick Quote for a Eaton DH361FDK2WRW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH361FDK2WRW?
Enquire Now
FAQs
DH361FDK2WRW is compatible with standard three-pole, three-wire control panels designed for 600 V systems. It accepts #14-2 AWG Cu/Al conductors and fits a NEMA 12/3R enclosure. Ensure orientation allows the window access for quick fuse status checks, and mount according to manufacturer guidelines to maintain UL Listed compliance.
Key specs include a 30A amperage rating, 600 V maximum voltage, and a three-pole, three-wire configuration. It uses Class H fuses (fusible without neutral) and supports motors up to 20 hp on 1/3PH at 480–600 V. Enclosure rating is NEMA 12/3R, with UL Listed certification for industrial environments.
The enclosure is rated NEMA 12/3R and constructed from painted galvanized steel, offering indoor protection and sheltered outdoor capability in compliant environments. For direct exposure to rain or severe weather, confirm applicable ambient ratings and install in a weather-protected cabinet or enclosure to preserve UL Listed performance.
The integrated window enables status verification without enclosure openings, reducing maintenance time. The three-pole, three-wire setup simplifies wiring, and the use of standard #14-2 AWG conductors aligns with common panel layouts. Overall, expect faster commissioning, fewer reworks, and shorter downtime during service intervals in automation projects.
By delivering reliable 600 V protection, a durable galvanized enclosure, and UL Listed safety, the DH361FDK2WRW minimizes unplanned outages and maintenance costs. Its robust construction and straightforward wiring contribute to longer service life and lower replacement frequency, translating to a favorable total cost of ownership in control cabinets and industrial automation systems.
