Eaton DH361FDKJ Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH361FDKJ
Quick Summary
The Eaton DH361FDKJ heavy duty fusible safety switch provides reliable protection for industrial control panels and motor circuits. This device helps prevent costly downtime by quickly isolating faults and safeguarding personnel during maintenance. Key certifications and standards include UL Listed status, NEC 230.62 barrier compliance, and a sturdy NEMA 12/3R enclosure that withstands dusty, damp, and harsh environments. With a painted galvanized steel enclosure, Class J fuse provision, and fusible-without-neutral design, it offers long service life in demanding conditions. For engineers and procurement teams, this switch combines robust protection with predictable performance, easy installation, and widely available replacement fuses. The result is safer operation, easier maintenance, and improved overall equipment efficiency in industrial facilities.
Product Information
Extended Description

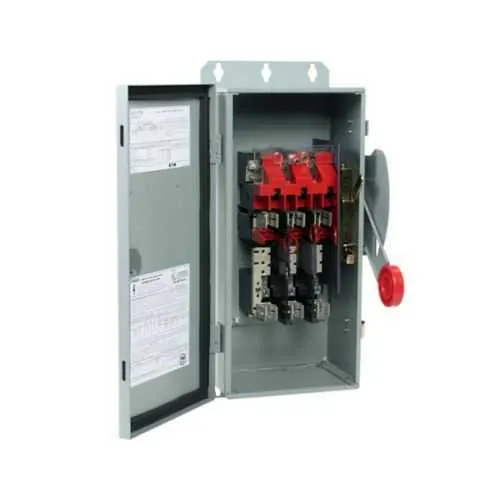

DH361FDKJ Eaton: Eaton Heavy duty single-throw fused safety switch, 30 A, NEMA 12/3R, Painted galvanized steel, Class J, Fusible without neutral, Three-pole, Three-wire, 600 V, Max Hp: 7.5, 10/ 15, 20 hp (1/3PH @480, 600 V), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH361FDKJ
UPC
782114632123
Product Length/Depth
20 in
Product Height
8.5 in
Product Width
9.5 in
Product Weight
22 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Enclosure
NEMA 12, NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class J
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Wire size
#14-2 AWG Cu/Al
Amperage Rating
30A
HP rating - max
7.5, 10/ 15, 20 hp (1/3PH @480, 600 V)
NEMA rating
NEMA 12/3R
Voltage rating
600 V
Product Category
Heavy Duty, Fusible without neutral
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Eaton Specification Sheet - DH361FDKJ
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: Three-pole, fusible without neutral design → Business Impact: Enables safe isolation in standard three-wire systems while simplifying wiring and maintenance → Application: Ideal for 3‑phase motor control panels in conveyors and pumps. Feature: 600 V, 30 A rating → Business Impact: Supports medium-voltage loads with reliable overload protection, reducing nuisance trips and equipment wear → Application: Suitable for 480–600 V motor circuits in manufacturing lines. Feature: NEMA 12/3R enclosure, painted galvanized steel → Business Impact: Provides dust, moisture, and corrosion resistance for durable field performance → Application: Suitable for harsh factory floors and washdown environments. Feature: Class J fuse configuration → Business Impact: Delivers predictable fuse coordination and fast fault disconnection → Application: Aligns with standard industrial protection schemes. Feature: Wire size #14-2 AWG Cu/Al → Business Impact: Simplifies wiring installation and spare-part compatibility → Application: Supports common control-panel wiring practices in automation projects. Feature: UL Listed, NEC 230.62 compliance → Business Impact: Ensures regulatory alignment and safe barrier protection → Application: Fast-track approval for electrical installations in regulated facilities.
