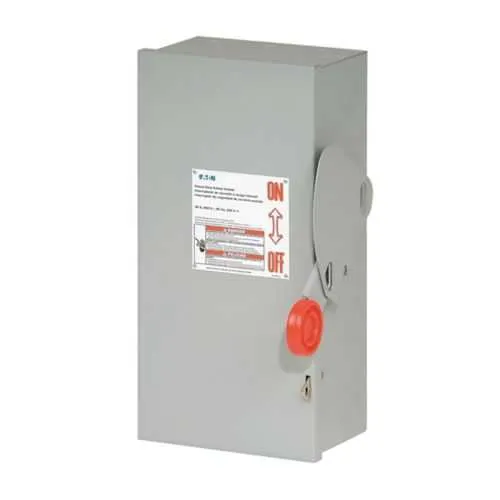

Eaton Heavy-duty Fusible Safety Switch DH361FGK-CSA - UL
Part Number: DH361FGK-CSA
Quick Summary
The Eaton Heavy-duty Fusible Safety Switch DH361FGK-CSA provides safe isolation for three-phase power in industrial panels. It is designed to prevent accidental energization during maintenance, reducing downtime and safeguarding personnel. UL Listed and CSA Certified, with NEC 230.62 barrier compliance, the unit features a NEMA 1 enclosure to withstand indoor factory environments. For installers and operators, its service-entrance readiness with the Neutral Kit option and compact footprint deliver faster installation, lower lifecycle costs, and enhanced panel reliability. The three-pole design and 3-wire configuration support balanced motor control deployments in OEM and industrial facilities. With a max hp rating up to 20 hp at 480/600 V, this switch accommodates a range of motors and drives in harsh industrial settings.
Product Information
Extended Description
DH361FGK-CSA Eaton: Eaton Heavy duty single-throw fused safety switch, 30 A, NEMA 1, Painted steel, Class H, Fusible without neutral, Three-pole, Three-wire, 600 V, Max Hp: 7.5, 10/ 15, 20 hp (1/3PH @480, 600 V), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH361FGK-CSA
UPC
786685223032
Product Length/Depth
16.5 in
Product Height
8.5 in
Product Width
12.7 in
Product Weight
18 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed CSA Certified
Catalog Notes
Suitable for service entrance use with a Neutral Kit installed
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Wire size
#14-2 AWG Cu/Al
Amperage Rating
30A
HP rating - max
7.5, 10/ 15, 20 hp (1/3PH @480, 600 V)
NEMA rating
NEMA 1
Voltage rating
600 V
Product Category
Heavy Duty, Fusible without neutral
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Eaton Specification Sheet - DH361FGK-CSA
Feature → Business Impact → Application: 30 A amperage rating with 3-pole, 3-wire configuration and 600 V maximum enables safe, coordinated protection for motor circuits up to 20 hp in manufacturing lines, reducing nuisance tripping and unplanned downtime. This translates to faster start-up after maintenance and improved equipment longevity in process industries. Feature → Business Impact → Application: Class H fuse with fusible configuration without neutral simplifies field wiring and fusing strategies, improving maintenance efficiency and reducing spare part variety for panel builders. Feature → Business Impact → Application: NEMA 1 painted steel enclosure provides indoor-rated protection, helping facilities meet site-specific requirements while simplifying installation in control panels and service entrances. Feature → Business Impact → Application: UL Listed and CSA Certified with NEC barrier compliance ensures regulatory alignment, risk reduction, and smoother audits across industrial facilities. Feature → Business Impact → Application: Neutral Kit compatibility and a compact footprint enable quick retrofits and scalable protection in evolving automation layouts across OEMs and end users. Feature → Business Impact → Application: 16.5 in length, 12.7 in width, 8.5 in height and 18 lb weight offer a balanced footprint for retrofit projects and new installations in crowded electrical rooms.
Get a Quick Quote for a Eaton DH361FGK-CSA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH361FGK-CSA?
Enquire Now
FAQs
The DH361FGK-CSA is designed for three-phase power isolation in industrial panels, service entrances, and motor control centers. It supports up to 20 hp at 480/600 V and fits inside NEMA 1 enclosures, making it suitable for indoor factory environments and OEM panel builds.
It features a 30 A amperage rating, 600 V maximum voltage, three-pole and three-wire configuration, fusible without neutral, Class H fuse, and uses #14-2 Cu/Al conductors. The device is rated for up to 20 hp at higher voltages and is compliant with NEC guidelines.
Yes, the DH361FGK-CSA is suitable for service entrance use with a Neutral Kit installed. This option enables proper neutral connections in appropriate service-entry applications, improving installation versatility and compliance.
The product is UL Listed and CSA Certified, with NEC barrier compliance. These certifications support regulatory compliance, safer maintenance practices, and easier audit readiness in industrial facilities.
The enclosure footprint is 16.5 in long, 12.7 in wide, and 8.5 in high, with an approximate weight of 18 lb. This compact size supports installation in crowded electrical rooms and within standard control panels.
