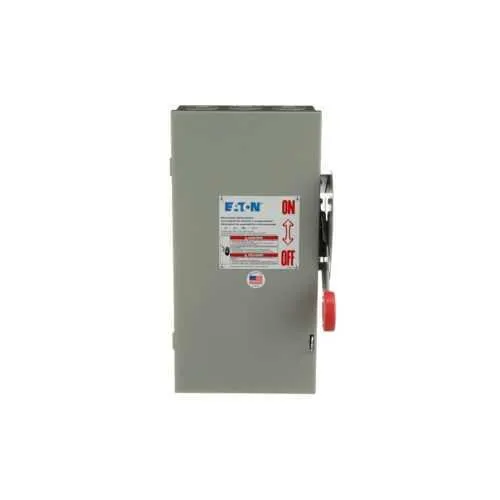

Eaton DH361FGK6G Heavy Duty Fusible Switch - UL Listed
Part Number: DH361FGK6G
Quick Summary
Eaton heavy duty fusible safety switch is a rugged solution for isolating power in industrial equipment and control panels. Customers often struggle with downtime and nuisance trips when panels lack reliable isolation and clear safety margins. It carries UL Listed certification, NEC 230.62 (C) compliant barrier, and a NEMA 1 enclosure, supporting safe, code-compliant installations. The 30A, three-pole configuration operating at 600 V delivers dependable protection for motors, drives, and control circuits. This model also aligns with common procurement drivers—reliability, serviceability, and total cost of ownership—while maintaining compatibility with standard panel hardware and installation practices.
Product Information
Extended Description
DH361FGK6G Eaton: 30A/3P HD FUSIBLE SaFETY SWITcH, 600V NEMA 1
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH361FGK6G
UPC
786685940977
Product Length/Depth
8.31 in
Product Height
16.5 in
Product Width
9.12 in
Product Weight
17 lb
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Enclosure
NEMA 1
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Type
Single-Throw
Amperage Rating
30A
NEMA rating
NEMA 1
Voltage rating
600 V
Feature → Business Impact → Application: 30A, 3P, 600 V rating provides robust overcurrent protection and clear isolation for motor circuits, reducing fault energy and downtime in demanding environments. Engineers gain predictable performance and simplified procurement with a single solution that aligns to standard 600 V panels and drive systems. Feature → Business Impact → Application: Fusible without neutral design minimizes wiring complexity in three-phase loads, lowers arc energy during switching, and improves safety in machine controls and panelboards. Feature → Business Impact → Application: NEMA 1 enclosure and compact footprint support indoor dry-location installations with straightforward mounting in electrical rooms and service panels. Feature → Business Impact → Application: UL Listed and NEC 230.62 compliant barrier deliver code-ready compliance, reducing commissioning time and enabling smoother electrical audits for machine builders and panel manufacturers. Feature → Business Impact → Application: Three-pole, single-throw configuration delivers fast, positive open/close actions and alignment with conventional motor control wiring, minimizing mis-wiring risks and maintenance calls. Feature → Business Impact → Application: With a weight of 17 lb and measured dimensions (8.31 in depth, 16.5 in height, 9.12 in width), installation footprint is predictable, enabling reliable space planning and easy retrofits in existing enclosures. Keywords integrated include heavy duty fusible safety switch, 30A panel protection, 600 V isolation, UL Listed safety device, NEMA 1 enclosure, fusible without neutral, three-pole switchgear, and NEC barrier compliance.
Get a Quick Quote for a Eaton DH361FGK6G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH361FGK6G?
Enquire Now
FAQs
The DH361FGK6G is designed for industrial electrical protection and control within 600 V systems, primarily in control panels and motor circuits. Its three-pole, fusible-without-neutral configuration suits three-phase equipment in indoor, dry environments housed in a NEMA 1 enclosure, delivering reliable isolation and safer maintenance workflows.
Three-pole operation provides balanced interruption across all phases, reducing residual arc energy and ensuring complete isolation of three-phase loads. The fusible design simplifies protection for motors and drives, while the absence of a neutral connection aligns with typical three-phase panel wiring, supporting safer, code-compliant shutoff during faults.
This switch is UL Listed and incorporates a NEC 230.62 compliant barrier, enabling safer installations and smoother electrical audits. Its NEMA 1 enclosure is optimized for indoor dry environments, which helps maintain equipment protection and compliance in standard industrial settings.
The unit has a depth of 8.31 in, height of 16.5 in, and width of 9.12 in, with an approximate weight of 17 lb. It is designed for installation in indoor panels or electrical rooms, using standard mounting practices for NEMA 1 enclosures and compatible panel hardware to fit typical control-cabinet footprints.
The DH361FGK6G offers durable construction with reliable isolation, reducing downtime from unexpected switchgear failures. Its UL/NEC-compliant design streamlines approvals, while easy field replacement and standardized dimensions minimize maintenance costs and support a lower total cost of ownership for equipment owners and panel builders alike.
