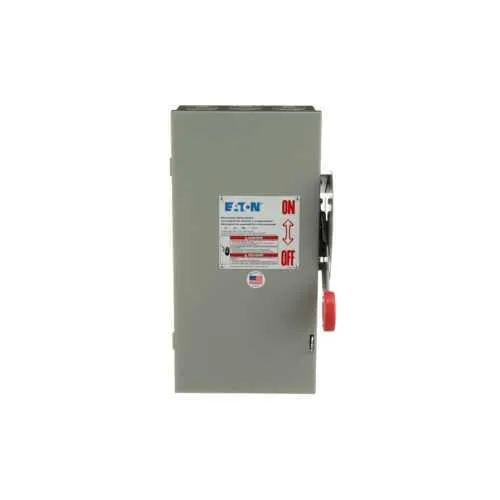

Eaton DH361FGKG Fusible Safety Switch - UL Listed
Part Number: DH361FGKG
Quick Summary
Eaton fusible safety switch protects three-phase motors and feeders from overcurrent in industrial facilities. Installers often face wiring complexity and downtime; this unit simplifies installation with a compact footprint and clear labeling. UL Listed and NEC 230.62 (C) compliant barrier ensure regulatory alignment, while the NEMA 1 enclosure supports indoor installations. The fusible-without-neutral configuration reduces wiring steps and simplifies fuse replacement, cutting maintenance time. For reliability in demanding environments, this 30A, 3-pole switch delivers dependable protection for motor control and distribution panels, aligning with factory automation expectations and helping maintain production uptime.
Product Information
Extended Description
DH361FGKG Eaton: 30A/3P HD FUSIBLE SAFETY SWITCH NEMA 3R 600V
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH361FGKG
UPC
786685940847
Product Length/Depth
8.31 in
Product Height
16.5 in
Product Width
9.12 in
Product Weight
17 lb
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Enclosure
NEMA 1
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Type
Single-Throw
Amperage Rating
30A
NEMA rating
NEMA 1
Voltage rating
600 V
Feature: Heavy-duty 30A, 3-pole, 600V fusible switch provides robust overcurrent protection for three-phase circuits. Business Impact: Reduces risk of electrical faults and unplanned downtime; ensures fast, safe isolation of all phases. Application: Ideal for motor feeders and distribution panels in manufacturing and processing facilities. Feature: Fusible without neutral simplifies wiring and fuse replacement. Business Impact: Lowers installation labor and maintenance time, accelerating commissioning and outages recovery. Application: Suitable for systems without neutral conductors or where neutral is not required for switching. Feature: NEMA 1 indoor enclosure protects against dust and incidental contact. Business Impact: Extends equipment life in general-purpose indoor environments and reduces enclosure-related failures. Application: Suitable for manufacturing floors, control rooms, and equipment rooms. Feature: UL Listed with NEC barrier compliance provides regulatory alignment. Business Impact: Simplifies compliance and audit readiness, reducing project risk and certification overhead. Application: Required for many industrial installations and panel assemblies. Feature: Compact footprint with defined dimensions (8.31 in depth, 16.5 in height, 9.12 in width) enables easy integration. Business Impact: Fits standard electrical enclosures and minimizes retrofit complexity. Application: Useful in retrofit projects and new builds where space is a concern. Feature: 3-pole single-throw design ensures simultaneous disconnect of all phases. Business Impact: Maximizes safety during maintenance and improves coordination with motor control circuits. Application: Essential for disconnecting three-phase motors and feeders in process lines.
Get a Quick Quote for a Eaton DH361FGKG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH361FGKG?
Enquire Now
FAQs
Installers should mount the DH361FGKG in a suitable indoor enclosure with access to the three input/output terminals. Connect three phase lines to the three poles, ensure the fusible links are correctly placed (fusible without neutral), and verify the 600V rating matches your system. Adhere to NEC guidelines and torque specifications for reliable contact pressure and safe operation.
Yes. The DH361FGKG is designed with NEC 230.62 (C) compliant barrier considerations in mind, supporting safe separation between personnel and energized components. Use within an appropriate indoor installation to maintain compliance, and pair with UL Listed components to simplify audits and inspections.
The unit is rated for 30A, 600V, and is a three-pole, single-throw fusible switch. It features a fusible without neutral configuration and comes in a NEMA 1 enclosure. The product is UL Listed and designed for indoor protection of motor control circuits and feeders in industrial settings.
The DH361FGKG offers a compact footprint, clear labeling, and a straightforward fusible configuration that streamlines wiring and maintenance. Its three-pole design ensures simultaneous isolation of all phases, reducing switching errors and improving safety during maintenance in motor control centers and panel assemblies.
With a robust UL Listed design and NEC-compliant barrier, the switch minimizes regulatory risk and downtime. The fusible without neutral setup reduces wiring complexity, and the unit’s durable NEMA 1 enclosure supports indoor use, leading to lower maintenance costs, faster fault isolation, and improved plant uptime over the life of the equipment.
