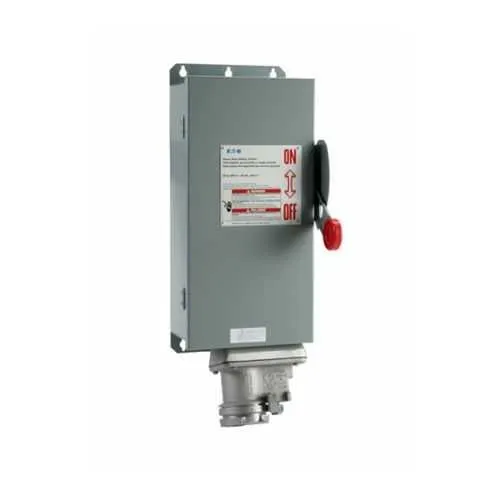

Eaton DH361FW5WRK Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH361FW5WRK
Quick Summary
Eaton heavy duty fusible safety switch provides reliable circuit isolation for industrial control panels and harsh environments. In today’s facilities, downtime and corrosion risk threaten productivity and maintenance costs. This unit is UL Listed and features a NEMA 4X stainless steel enclosure with a Class H fuse, engineered for dependable protection in demanding operations. Designed for three-pole, three-wire configurations up to 600 V, it supports motors up to 20 hp in typical 1/3‑phase setups. For integrators and maintenance teams, the DH361FW5WRK delivers rugged durability, straightforward mounting, and long-term cost savings through reduced fault exposure and easier service in harsh environments.
Product Information
Extended Description
DH361FW5WRK Eaton: Eaton Heavy duty receptacle safety switch, Appleton POWERTITE® receptacle, 30 A, NEMA 4X, 304 stainless steel, Class H, Fusible without neutral, Three-pole, Three-wire, 600 V, Max Hp: 7.5, 10/ 15, 20 hp (1/3PH @480, 600 V), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH361FW5WRK
UPC
782114193631
Product Length/Depth
30.88 in
Product Height
10.22 in
Product Width
10.12 in
Product Weight
35 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Power plugs not supplied with the receptacle
Enclosure
NEMA 4X
Enclosure material
304 stainless steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Wire size
#14-2 AWG Cu/Al
Amperage Rating
30A
HP rating - max
7.5, 10/ 15, 20 hp (1/3PH @480, 600 V)
NEMA rating
NEMA 4X (Stainless)
Voltage rating
600 V
Product Category
Heavy Duty, Harsh Environment - EnviroLine
Enclosure and material deliver corrosion resistance with a NEMA 4X 304 stainless steel housing, providing reliable performance in washdown and outdoor locations. This translates to lower maintenance costs and longer service intervals for facilities such as food processing, water treatment, and outdoor equipment. Fuse class provision with Class H protection supports selective coordination and fast fault interruption, reducing downtime and extending motor life in demanding automation lines. The 30 A at 600 V rating and HP up to 20 in 1/3‑phase systems enable scalable motor control for pumps, conveyors, and fans, simplifying panel design and reducing spare parts inventory. Three-pole, three-wire configuration with #14-2 Cu/Al wiring ensures straightforward field wiring and compatibility with standard motor starters and drives. The compact 30.88 in length, 10.22 in height, and 10.12 in width footprint facilitates easy panel mounting and predictable enclosure layouts, saving installation time and improving integration with Appleton POWERTITE receptacle ecosystems. UL Listed certification and robust stainless construction provide confidence in compliance, durability, and total cost of ownership for harsh-environment applications.
Get a Quick Quote for a Eaton DH361FW5WRK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH361FW5WRK?
Enquire Now
FAQs
This three-pole, three-wire heavy duty fusible safety switch is designed for motor control and power distribution in harsh environments—manufacturing cells, conveyors, pumps, and outdoor equipment. It handles up to 30 A at 600 V and supports motors up to 20 hp in typical 1/3-phase systems, making it ideal for robust industrial control panels.
The device uses a NEMA 4X enclosure manufactured from 304 stainless steel, delivering corrosion and washdown resistance. This construction protects the internal contacts and wiring in demanding locations, both indoors and outdoors, while providing long-term durability for facilities with strict cleanliness or exposure to moisture and chemicals.
UL Listed certification confirms compliance with electrical safety standards, while the NEMA 4X rating validates suitability for washdown and outdoor use. The fusible without neutral configuration and Class H fuse protection further support safe, code-compliant protection for motor circuits in industrial environments.
Rated for 30 A and 600 V, the DH361FW5WRK supports up to 20 hp in 1/3PH at higher voltages. It is three-pole, three-wire, with #14-2 Cu/Al wiring suitable for standard control circuits. The Class H fuse provides reliable overcurrent protection and fast interruption when faults occur.
Check the footprint: 30.88 in long, 10.22 in high, 10.12 in wide, and about 35 lb. Plan for field wiring with #14-2 Cu/Al and note that power plugs are not supplied with the receptacle. The rugged stainless enclosure supports harsh environments and simplifies panel integration for motor control and protection tasks.
