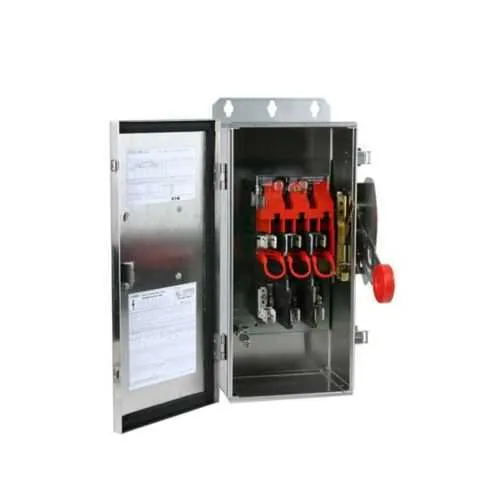

Eaton DH361FWK-GCL Heavy Duty Fusible Safety Switch - UL
Part Number: DH361FWK-GCL
Quick Summary
The Eaton DH361FWK-GCL heavy duty fusible safety switch provides reliable power isolation in demanding industrial environments. For engineers and maintenance teams, downtime and service delays can spike when enclosures corrosion or rigid field configurations impede quick protection changes. UL Listed, NEMA 4X stainless steel construction, and NEC 230.62 compliant barrier deliver rugged protection and code compliance. This model supports service entrances and mill-duty switching while offering long-term reliability and cost savings for industrial operations.
Product Information
Extended Description
DH361FWK-GCL Eaton: Eaton Heavy duty single-throw fused safety switch, Corrosion resistant, Mill-duty, 30 A, NEMA 4X, 304 stainless steel, Class H, Three-pole, Three-wire, 600 V, Max Hp: 7.5, 10/ 15, 20 hp (1/3PH @480, 600 V), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH361FWK-GCL
UPC
782114889695
Product Length/Depth
10.22 in
Product Height
24.95 in
Product Width
10.76 in
Product Weight
19 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Suitable for service entrance use. Can be field modified to meet NEMA 3R rainproof requirements when a factory provided drain hole is opened.
Enclosure
NEMA 4X
Enclosure material
304 stainless steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Wire size
#14-2 AWG Cu/Al
Amperage Rating
30A
HP rating - max
7.5, 10/ 15, 20 hp (1/3PH @480, 600 V)
NEMA rating
NEMA 4X (Stainless)
Voltage rating
600 V
Product Category
Heavy Duty, Mill-duty
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Eaton Specification Sheet - DH361FWK-GCL
The enclosure is built from 304 stainless steel with a NEMA 4X rating, delivering superior corrosion resistance in outdoor and washdown environments, which reduces maintenance costs and extends asset life in harsh sites. Business impact: lower replacement frequency and safer operations; application: outdoor equipment rooms, chemical plants, and water treatment facilities. The 30 A amperage rating and 600 V voltage rating enable reliable protection for motors and feeders, minimizing electrical faults and delaying arc-flash exposure; application: control panels and motor starter configurations. Fuse class Class H and fusible-without-neutral configuration provide flexible protection without unnecessary conductors, simplifying retrofits and reducing wiring complexity in existing layouts. Wire size supports #14-2 AWG Cu/Al, streamlining installation and enabling consistent termination across multiple circuits; application: service entrances and compact switchgear. The three-pole design with three wires ensures straightforward integration with three-phase systems, improving coordination with upstream protective devices; application: industrial power distribution. Catalog notes indicate field modification to meet NEMA 3R rainproof requirements when a drain hole is opened, offering on-site adaptability and capital cost avoidance for weather-exposed installations. Overall, the device combines rugged durability with installation flexibility to reduce downtime and optimize maintenance intervals.
Get a Quick Quote for a Eaton DH361FWK-GCL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH361FWK-GCL?
Enquire Now
FAQs
This model is designed for three-pole, three-wire installations with a 30 A rating at 600 V. Ensure proper mounting in a NEMA 4X enclosure, terminate #14-2 Cu/Al conductors, and follow NEC guidelines for service entrance protection. Verify compatibility with upstream protective devices and confirm drain hole modification if rainproofing is needed.
The switch supports 30 A and up to 600 V, with a three-pole configuration and fusible without neutral. It uses Class H fuses and accepts #14-2 AWG Cu/Al wires. The HP rating reaches 7.5 to 20 hp at 1/3 PH for 480–600 V, enabling protection for a range of motor loads.
Yes. It features a 304 stainless steel enclosure with a NEMA 4X rating, providing corrosion resistance in harsh outdoor or washdown environments. For rain-prone sites, field modification to meet NEMA 3R rainproof requirements is possible by opening a factory drain hole.
The device is UL Listed, with NEC 230.62 compliant barrier. It is intended for service entrance use and, with proper field modification, can be adapted to meet additional environmental requirements while maintaining code compliance in industrial installations.
The DH361FWK-GCL offers durable stainless steel protection, reducing corrosion-related replacement costs and downtime. Its field-modifiable rainproof capability minimizes outdoor enclosure upgrades, while the robust Class H fuse protection lowers fault propagation, contributing to lower maintenance frequency and safer, longer-lasting power isolation.
