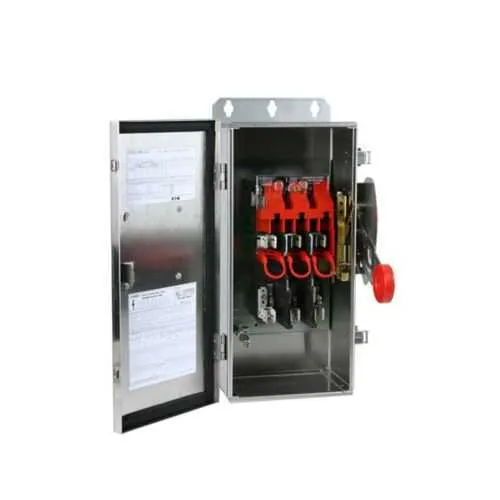

Eaton DH361FWK2WR Heavy Duty Fusible Switch - NEMA 4X
Part Number: DH361FWK2WR
Quick Summary
DH361FWK2WR heavy duty fusible safety switch protects motors in harsh industrial environments. When downtime and corrosion threaten production schedules, you need a rugged enclosure that can stand up to washdowns and exposure. This unit features a NEMA 4X 304 stainless steel enclosure, UL Listed certification, and NEC 230.62 barrier compliance to help your panels meet safety and code requirements. Its three-pole, three-wire design with Class H fuses delivers reliable overload protection for up to 20 hp motors at 480–600 V. Compatible with #14-2 AWG Cu/Al conductors and the Crouse-Hinds ARKTITE receptacle, it integrates smoothly into existing control architectures. One-year warranty from installation or eighteen months from shipment helps reduce lifecycle risk and support maintenance planning.
Product Information
Extended Description
DH361FWK2WR Eaton: Eaton Heavy duty single-throw fused safety switch, Corrosion resistant, Crouse-Hinds®ARKTITE receptacle, 30 A, NEMA 4X, 304 stainless, Class H, Three-pole, Three-wire, 600 V, Max Hp: 7.5, 10/ 15, 20 hp (1/3PH @480, 600 V), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH361FWK2WR
UPC
782113555546
Product Length/Depth
10.22 in
Product Height
24.95 in
Product Width
10.76 in
Product Weight
35 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Power plugs not supplied with the receptacle
Enclosure
NEMA 4X
Enclosure material
304 stainless steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Wire size
#14-2 AWG Cu/Al
Amperage Rating
30A
HP rating - max
7.5, 10/ 15, 20 hp (1/3PH @480, 600 V)
NEMA rating
NEMA 4X (Stainless)
Voltage rating
600 V
Product Category
Heavy Duty, Harsh Environment - EnviroLine
Feature: Corrosion-resistant NEMA 4X enclosure in 304 stainless steel. Business Impact: Extends service life in washdowns and outdoor environments, reducing maintenance cycles and replacement costs. Application: Ideal for harsh industrial facilities where exposure to moisture and chemicals is common. Feature: Three-pole safety switching with Class H fusible protection. Business Impact: Delivers reliable overload protection for motors up to 20 hp at 480–600 V, minimizing unplanned downtime and motor damage. Application: Suitable for medium-duty motor control in conveyors, pumps, and processing lines. Feature: Crouse-Hinds ARKTITE receptacle compatibility. Business Impact: Simplifies installation and enhances connection reliability, lowering field wiring time and error potential. Application: Seamless integration into existing electrical panels and control cabinets. Feature: Wiring compatibility and conductor options. Business Impact: Supports #14-2 Cu/Al and 3-wire configurations, offering flexible installation across different plant layouts. Application: Enables quick adaptation in retrofit projects and new panel builds. Feature: UL Listed and NEC barrier compliance. Business Impact: Ensures code-compliant installations with improved safety documentation, easing audits and approvals. Application: Preferred choice for regulated facilities seeking robust documentation and traceability. Feature: Durable physical footprint and warranty. Business Impact: Provides predictable replacement cycles and protection assurances with a one-year warranty from installation or 18 months from shipment. Application: Enterprise-wide asset management and lifecycle planning.
Get a Quick Quote for a Eaton DH361FWK2WR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH361FWK2WR?
Enquire Now
FAQs
DH361FWK2WR uses a NEMA 4X 304 stainless enclosure and ARKTITE receptacle compatibility, making it suitable for outdoor and washdown areas. Plan for secure mounting, proper enclosure sealing, and raceway routing to maintain corrosion resistance and code compliance. Ensure wiring is #14-2 Cu/Al and sized for 30 A protection.
The switch is rated for 30 A, 600 V, three-pole, three-wire operation with Class H fuses and a maximum 20 hp (1/3 PH at 480–600 V). It accepts #14-2 Cu/Al conductors and is UL Listed, with NEMA 4X enclosure for harsh environments.
Yes. Its 304 stainless steel, NEMA 4X enclosure provides corrosion resistance, and the ARKTITE receptacle compatibility supports reliable, safe operation in outdoor or washdown settings common to manufacturing and processing facilities.
The unit is UL Listed and NEC 230.62 barrier compliant, ensuring safety and code alignment. It also features a NEMA 4X enclosure rating and Class H fuse protection, supporting compliant motor protection in demanding environments.
The DH361FWK2WR reduces downtime through robust overload protection and corrosion resistance, lowering replacement intervals. Warranty terms (one year from installation or 18 months from shipment) support maintenance budgeting, while ARKTITE compatibility speeds installation, reducing field labor costs.
