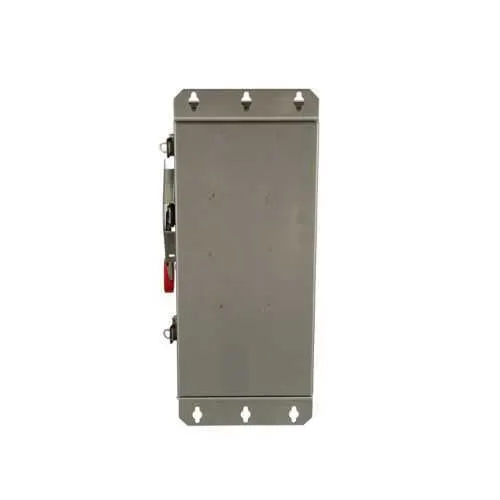

Eaton DH361FWK316 Heavy Duty Fusible Switch - UL
Part Number: DH361FWK316
Quick Summary
Eaton DH361FWK316 Heavy Duty Fusible Safety Switch protects motor circuits in industrial control panels. In high-demand environments, field maintenance and safety compliance are constant challenges, and unplanned downtime hurts productivity. Highlights include UL Listed certification, NEC 230.62 barrier compliance, and a rugged NEMA 4X enclosure with 316 stainless steel construction, ensuring corrosion resistance in washdowns. The design supports 600 V systems and 30 A loads, with Class H fuses and fusible without neutral configuration, making it a versatile choice for panel builders and maintenance teams seeking reliable protection and simple installation. Engineers will appreciate straightforward wiring and secure mounting that reduces commissioning time.
Product Information
Extended Description
DH361FWK316 Eaton: Eaton heavy duty single-throw fused safety switch, Heavy Duty Safety Switch, Single-Throw, 30A, 600V, 3P, 3W, Fusible without neutral, NEMA 4X, Grade 316SS, Class H fuses
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH361FWK316
UPC
782114687307
Product Length/Depth
10.22 in
Product Height
19.08 in
Product Width
8.76 in
Product Weight
0.01 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Enclosure
NEMA 4X
Enclosure material
316 stainless steel
Fuse class provision
Class H fuses
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
Single-Throw
Amperage Rating
30A
HP rating - max
7.5 at 480 Vac TD 1 Ph, 10 at 600 Vac TD 1 Ph, 15 at 480 Vac TD 3 Ph, 20 at 600 Vac TD 3 Ph
NEMA rating
NEMA 4X (Stainless)
Voltage rating
600 V
Product Category
Heavy Duty, Fusible without neutral
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Eaton Specification Sheet - DH361FWK316
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: 316 stainless steel enclosure and NEMA 4X rating provide corrosion and washdown-resistance, enabling installation in challenging environments. Business Impact: Extends service life, lowers corrosion-related maintenance costs, and reduces downtime in outdoor or hazardous locations. Application: Ideal for outdoor machinery, food & beverage plants, and coastal facilities where cleanliness and durability matter. Feature: Fusible without neutral configuration simplifies wiring during panel assembly. Business Impact: Speeds up installation, reduces wiring errors, and improves change-out efficiency during maintenance windows. Application: Three-pole, 30 A circuits in mid-voltage control panels. Feature: Class H fuses and UL Listed safety assurance deliver reliable protection. Business Impact: High interrupt capacity with clear regulatory compliance, lowering risk and insurance concerns. Application: Critical loads and motor circuits in industrial environments. Feature: 600 V voltage rating paired with three-pole design supports scalable control systems. Business Impact: Flexible integration with existing infrastructure and future expansion without rework. Application: Industrial automation panels and machine control enclosures. Feature: 316 stainless steel construction with NEC barrier compliance. Business Impact: Enhanced safety, easier code compliance verification, and robust performance in harsh environments. Application: Food processing, washdown zones, and water-intensive industrial facilities.
Get a Quick Quote for a Eaton DH361FWK316
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH361FWK316?
Enquire Now
FAQs
DH361FWK316 is a three-pole, fusible without neutral switch rated for 30A at 600V, with a 316 stainless steel NEMA 4X enclosure. It supports straightforward mounting and wiring in standard control panels, reducing assembly time and ensuring secure connections in both indoor and washdown environments.
Key specs include a 30A amperage rating, 600V voltage rating, and Class H fuses for reliable interrupting capability. The three-pole, fusible-without-neutral configuration simplifies circuit protection for 3-wire motor circuits, improving selectivity and preventing unnecessary power loss during fuse changes.
Yes. It features a 316 stainless steel enclosure and a NEMA 4X rating, providing excellent corrosion resistance and washdown durability. This makes it well-suited for outdoor installations, coastal facilities, and food processing environments where moisture and sanitation are critical considerations.
The unit is UL Listed, which supports regulatory compliance and safety verification. It also offers NEC 230.62 barrier compliance and a corrosion-resistant 316 stainless steel enclosure with a NEMA 4X rating, aiding code conformity and safe operation in demanding settings.
The 316SS enclosure and corrosion-resistant construction reduce maintenance and replacement costs in challenging environments. UL listing provides ongoing compliance confidence, and the simple fusible-without-neutral design minimizes wiring complexity during fuse replacements, lowering labor costs and downtime in routine maintenance.
