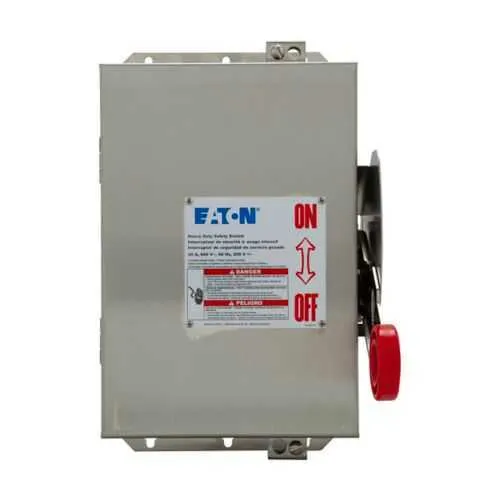

Eaton DH361FWK6316 Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH361FWK6316
Quick Summary
Eaton DH361FWK6316 heavy duty fusible safety switch provides safe isolation for motor circuits in industrial control panels. This solution addresses downtime caused by nuisance trips and wiring changes by delivering reliable, code-compliant protection. UL Listed, NEC 230.62 barrier compliance, and a NEMA 4X enclosure in 316 stainless steel deliver rugged protection in demanding environments. With 30A at 600V and a three-pole, three-wire configuration, it ensures dependable power control while maintaining safety. By integrating this switch, manufacturers gain improved equipment uptime, simplified maintenance, and clearer compliance reporting, aligning with industrial safety standards and long-term total cost of ownership goals. It also complements other Eaton protection devices, offering compatibility and installation efficiency for panel builders and OEMs.
Product Information
Extended Description
DH361FWK6316 Eaton: Eaton heavy duty single-throw fused safety switch, Single-throw, 30A, NEMA 4X, 316 Stainless steel, Fusible, 3-pole, Three-wire, "R" Fuse Kit, 7.5 at 480 Vac TD 1 Ph, 10 at 600 Vac TD 1 Ph, 10 at 240 Vac TD 3 Ph, 20 at 480 Vac TD 3 Ph
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH361FWK6316
UPC
786689385699
Product Length/Depth
10.22 in
Product Height
14.14 in
Product Width
8.76 in
Product Weight
17 lb
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Enclosure
NEMA 4X
Enclosure material
316 stainless steel
Fuse configuration
Fusible
Number Of Poles
Three-pole
Number of wires
Three-wire
Type
Single-throw
Amperage Rating
30A
NEMA rating
NEMA 4X
Voltage rating
600 V
Product Category
Heavy Duty Fusible
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Eaton Specification Sheet - DH361FWK6316
Feature 316 stainless steel enclosure with NEMA 4X rating → Business Impact robust corrosion and wash-down resistance, enabling reliable operation in harsh environments → Application outdoor substations, chemical plants, and food processing facilities. Feature Fusible, 30A, 600V → Business Impact precise overcurrent protection and safe fault isolation, reducing panel fire risk and downtime → Application motor control centers and conveyors in harsh industrial settings. Feature Three-pole, Three-wire, Single-throw → Business Impact simplified wiring, consistent phase configuration, and predictable shutdown behavior → Application standard control circuits in OEM equipment. Feature UL Listed and NEC barrier compliant → Business Impact validated safety and regulatory alignment, easing commissioning and audits → Application industrial automation panels and safety-critical installations. Feature R Fuse Kit compatibility → Business Impact flexible protection options and easier preventive maintenance, lowering spare-part stock and service time → Application retrofits and upgrades in aging installations. Feature Compact dimensions and weight (10.22 in depth, 14.14 in height, 8.76 in width, 17 lb) → Business Impact installer-friendly footprint, faster panel integration, and reduced installation costs → Application retrofit projects and new builds where space is at a premium.
Get a Quick Quote for a Eaton DH361FWK6316
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH361FWK6316?
Enquire Now
FAQs
The DH361FWK6316 is a heavy duty fusible safety switch from Eaton designed to isolate and protect motor circuits in industrial control panels. It is ideal for panel builders and OEMs needing rugged protection in harsh environments such as manufacturing floors, outdoor installations, and wash-down areas.
It provides 30A at 600V in a three-pole, three-wire configuration with a single-throw fuse setup, enclosed in a 316 stainless steel NEMA 4X housing for enhanced durability.
Yes, the DH361FWK6316 is UL Listed and features a NEMA 4X enclosure made from 316 stainless steel, suitable for demanding, wash-down environments.
Yes. The device is fusible and compatible with R Fuse Kit configurations, enabling flexible protection options and easier maintenance planning.
It improves uptime by providing reliable fault isolation, reduces maintenance costs through rugged construction and easy fuse-accessibility, and supports regulatory compliance with UL listing and NEC barrier standards.
