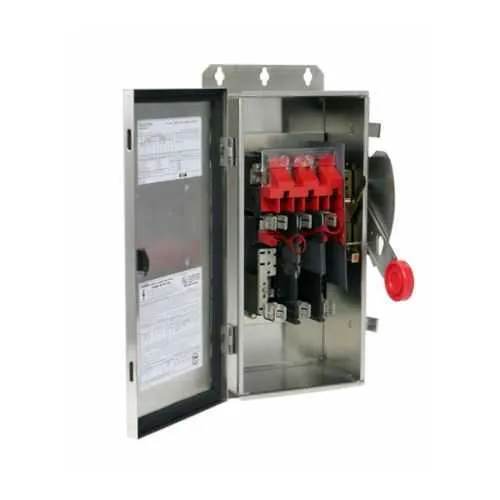

Eaton DH361FWKX Heavy Duty Fusible Safety Switch - NEMA 4X
Part Number: DH361FWKX
Quick Summary
The Eaton DH361FWKX heavy duty fusible safety switch isolates power for industrial control panels and service entrances with reliability. A corrosion-resistant EnviroLine stainless enclosure helps keep downtime to a minimum in harsh environments. UL Listed, NEC 230.62 barrier compliant, and NEMA 4X rated provide critical safety and compliance for industrial installations. Designed for three-pole, three-wire service up to 600 V, the DH361FWKX supports reliable motor protection and straightforward installation, delivering long-term ROI. For procurement and engineering teams, the combination of UL Listed safety, corrosion resistance, and service-entrance readiness reduces design time and life-cycle costs. This translates to faster installation, easier maintenance, and predictable uptime across mission-critical lines.
Product Information
Extended Description
DH361FWKX Eaton: Eaton Heavy duty single-throw fused safety switch, Corrosion resistant, 30 A, NEMA 4X, EnviroLine stainless, Class H, Fusible without neutral, Three-pole, Three-wire, 600 V, Max Hp: 7.5, 10/ 15, 20 hp (1/3PH @480, 600 V), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH361FWKX
UPC
782114224182
Product Length/Depth
10.22 in
Product Height
19.08 in
Product Width
7.73 in
Product Weight
21 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Suitable for service entrance use with a neutral or ground lug kit installed
Enclosure
NEMA 4X
Enclosure material
EnviroLine stainless
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Wire size
#14-2 AWG Cu/Al
Amperage Rating
30A
HP rating - max
7.5, 10/ 15, 20 hp (1/3PH @480, 600 V)
NEMA rating
NEMA 4X (Stainless)
Voltage rating
600 V
Product Category
Heavy Duty, Harsh Environment - EnviroLine
Enclosure and corrosion resistance: The EnviroLine stainless enclosure with a NEMA 4X rating defends internal components against moisture, dust, and chemical exposure, extending service intervals in washdown zones, outdoor installations, and challenging facilities. The result is reduced maintenance labor and fewer unplanned shutdowns, which translates to higher line uptime and safer operator environments in industries like food & beverage, chemical processing, and metal fabrication. Fuse protection and electrical isolation: The Class H fuse provision and fusible without neutral configuration deliver precise overcurrent protection and clean isolation of motor circuits. This reduces nuisance trips, protects downstream drives, and keeps production lines running. Technically, motor hp ratings of 7.5, 10/15, and 20 hp at 480–600 V can be selected for predictable performance in packaging, conveyors, and pumps. Three-pole design and wiring flexibility: The three-pole, three-wire arrangement simplifies installation and improves fault isolation, while the #14-2 AWG Cu/Al wiring specification aligns with common field wiring practices. Service entrance use is supported with a neutral or ground lug kit, enabling a flexible interface with existing electrical rooms and metering setups, reducing engineering changes. Voltage, current, and mechanical footprint: With a 600 V rating and 30 A rating, this switch accommodates mid-range motor loads and control circuits without oversized hardware. The compact footprint (10.22 in depth, 19.08 in height, 7.73 in width) and 21 lb weight ease panel integration, enabling tighter electrical rooms and simplified retrofit projects. Compliance, certification, and lifecycle value: UL Listed status, NEC 230.62 barrier compliance, and the EnviroLine stainless enclosure align with stringent industrial codes. Catalog notes support faster commissioning and lower audit risk, while corrosion resistance reduces maintenance costs and extends asset life in harsh environments.
Get a Quick Quote for a Eaton DH361FWKX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH361FWKX?
Enquire Now
FAQs
DH361FWKX supports a three-pole, three-wire configuration and is fusible without neutral, allowing flexible service entrance setups. It can be used with a neutral or ground lug kit, enabling seamless integration with existing electrical rooms and metering systems. This simplifies retrofits and new installs while maintaining robust isolation and protection.
Key specs include a 30 A amperage rating, 600 V voltage rating, and HP ratings of 7.5, 10/15, and 20 hp for a 1/3 HP configuration at 480–600 V. It uses #14-2 AWG Cu/Al wiring and features fusible protection without neutral, with a Class H fuse provision for reliable overcurrent protection.
Yes. The unit uses an EnviroLine stainless enclosure with a NEMA 4X rating, providing superior corrosion resistance and protection against washdowns, moisture, and dust. This makes it well suited for outdoor installations, food processing, chemical plants, and other harsh environments where reliability and safety are critical.
The DH361FWKX is UL Listed and NEC 230.62 barrier compliant, with a NEMA 4X-rated EnviroLine enclosure. These certifications support regulatory compliance and safety requirements for industrial installations, allowing quicker approvals and reduced engineering risk during audits and commissioning.
Eaton provides a warranty per policy 25-000: one year from installation or eighteen months from shipment, whichever occurs first. This warranty covers manufacturing defects and ensures access to support for installation questions, replacement parts, and technical guidance during commissioning and operation.
