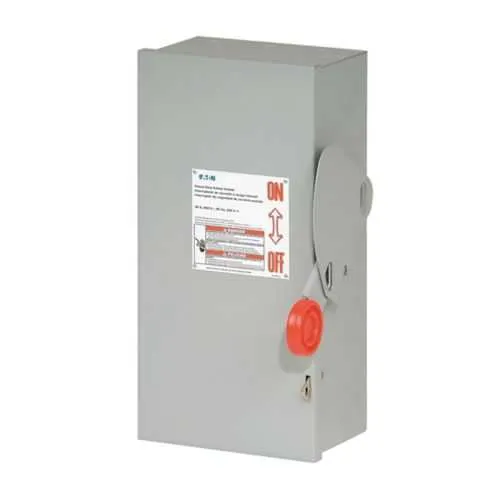

Eaton DH361NGK Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH361NGK
Quick Summary
The Eaton DH361NGK heavy duty fusible safety switch provides safe isolation for three-phase motor circuits in industrial control panels. When protection devices fail or maintenance is delayed, unplanned downtime and unsafe startups erode productivity; this switch delivers reliable tripping, straightforward replacement, and quick fault isolation. UL Listed and NEC 230.62 barrier-compliant within a NEMA 1 painted-steel enclosure ensure indoor reliability, while compatibility with Class H fuses and a 30 A rating supports scalable protection. This combination helps reduce wiring complexity and spare parts, delivering robust performance for 7.5 through 20 hp applications in modern manufacturing environments.
Product Information
Extended Description
DH361NGK Eaton: Eaton Heavy duty single-throw fused safety switch, 30 A, NEMA 1, Painted steel, Class H, Fusible with neutral, Three-pole, Four-wire, 600 V, Max Hp: 7.5, 10/ 15, 20 hp (1/3PH @480, 600 V), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH361NGK
UPC
782113205526
Product Length/Depth
16.5 in
Product Height
8.5 in
Product Width
9.5 in
Product Weight
20 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse class provision
Class H
Fuse configuration
Fusible with neutral
Number Of Poles
Three-pole
Number of wires
4
Type
Heavy duty fusible safety switch
Wire size
#14-2 AWG Cu/Al
Amperage Rating
30A
HP rating - max
7.5, 10/ 15, 20 hp (1/3PH @480, 600 V)
NEMA rating
NEMA 1
Voltage rating
600 V
Product Category
Heavy Duty, Fusible with neutral
Feature: 30 A amperage rating, 600 V voltage rating, three-pole, four-wire configuration with fusible neutral. Business Impact: Delivers robust motor protection for common 3-phase loads while enabling precise control and safe isolation in indoor panels. Application: Suitable for 7.5, 10/15, and 20 hp motors at 480/600 V, reducing nuisance tripping and downtime during routine maintenance or startup. Feature: Class H fuse provision and fusible with neutral. Business Impact: Ensures rapid, reliable protection and predictable fuse performance, lowering arc flash risk and extending motor life. Application: Ideal for high-demand industrial drives in packaging, conveyors, and pumps. Feature: NEMA 1 painted steel enclosure with NEC 230.62 barrier. Business Impact: Provides durable indoor protection against dust and incidental contact, simplifying compliance and installation. Application: Fits standard control rooms and panel shops with common mounting footprints. Feature: Wire size #14-2 AWG Cu/Al and four-wire design. Business Impact: Supports straightforward field wiring and stock compatibility, reducing installation time and troubleshooting. Application: Standard rack-and-stack wiring in compact motor control centers. Feature: Dimensions and weight (16.5 in L × 9.5 in W × 8.5 in H; 20 lb). Business Impact: Compact footprint minimizes enclosure space and enables modular expansion. Application: Suitable for alphabetized, scalable motor protection in mid-size facilities. Feature: UL Listed and documentation availability (datasheet and catalog). Business Impact: Verifies compliance and eases QA audits, with accessible specs for procurement and installation teams. Application: Industrial plants requiring formal certification trails and easy supplier reference.
Get a Quick Quote for a Eaton DH361NGK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH361NGK?
Enquire Now
FAQs
DH361NGK is a 3-pole, 4-wire unit rated 30 A at 600 V and designed for fusible with neutral configurations. Use #14-2 Cu/Al conductors, install in a NEMA 1 painted steel enclosure, and follow NEC 230.62 barrier guidelines. Mounting should align with standard control panels, ensuring proper wiring topology and fault isolation while maintaining accessibility for fuse replacement.
Key ratings are 30 A amperage, 600 V voltage, and HP range up to 20 hp (1/3 PH at 480/600 V). These support protection for mid-size motors in indoor environments, enabling safe disconnection during faults and facilitating predictable startup behavior. The Class H fuse provision adds a defined protection curve, improving reliability and maintenance planning.
Yes. The unit features a NEMA 1 painted steel enclosure and UL Listed certification, making it appropriate for indoor control panels in conveyor and pump systems. Its 30 A, 600 V rating covers common motor sizes, and the fusible-with-neutral configuration aids clean shutdown. Its compact 16.5 in L × 9.5 in W × 8.5 in H footprint supports modular integration in control rooms.
The DH361NGK is UL Listed and NEC 230.62 barrier compliant, with a NEMA 1 enclosure designed for indoor use. These certifications support regulatory compliance, safe operation, and easier QA documentation. The product’s specification sheet and catalog are readily available to aid procurement and installation teams during compliance reviews.
Warranty terms include Eaton’s policy of one year from installation or eighteen months from shipment, whichever occurs first (Eaton Policy 25-000). This protective window, plus reliable Class H fusible protection and standardized wiring, reduces unplanned maintenance, extends motor life, minimizes downtime, and lowers total cost of ownership for mid-size industrial processes.
