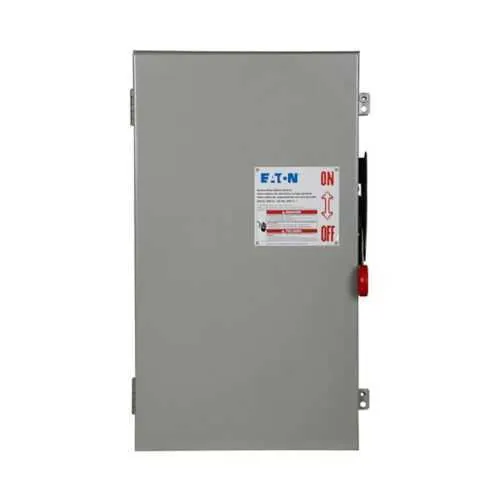

Eaton DH361NGK-CSA Heavy Duty Safety Switch - UL Listed
Part Number: DH361NGK-CSA
Quick Summary
Eaton heavy duty safety switch DH361NGK-CSA is a fusible disconnect for 600 V industrial equipment, protecting motors and feeders. Field installations often struggle with nuisance trips, space constraints, and maintenance complexity that drive downtime and operating costs. UL Listed and CSA Labeled certifications ensure North American compliance, while a NEMA 1 painted steel enclosure delivers reliable indoor protection. With Class H fuses and a compact footprint, this switch supports straightforward retrofits and reduces maintenance time in demanding electrical protection and circuit-control applications. Designed for robust performance, it also aligns with common industrial power distribution practices, enabling safer, more predictable operation.
Product Information
Extended Description
DH361NGK-CSA Eaton: Eaton Heavy Duty Safety Switch, Single-Throw, 30A, 600V, 3P 4W, Fusible w/ neutrAl, NEMA 1, PaiNted steel, Class H fuses, 7.5 hp at 480 Vac TD 1 Ph, 10 hp at 600 Vac TD 1 Ph, 15 hp at 480 Vac TD 3 Ph, 20 hp at 600 Vac TD 3 Ph, CSA Labeled
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH361NGK-CSA
UPC
786679192870
Product Length/Depth
16 in
Product Height
5.25 in
Product Width
8.06 in
Product Weight
20 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse class provision
Class H fuses
Fuse configuration
Fusible with neutral
Number Of Poles
Three-pole
Number of wires
4
Type
Single-Throw
Amperage Rating
30A
HP rating - max
7.5 at 480 Vac TD 1 Ph, 10 at 600 Vac TD 1 Ph, 15 at 480 Vac TD 3 Ph, 20 at 600 Vac TD 3 Ph
NEMA rating
NEMA 1
Voltage rating
600 V
Product Category
Heavy Duty, Fusible with neutral
Three-pole design with four conductors and fusible with neutral provides a decisive disconnect for phase-to-phase protection, enabling clear isolation of circuits and minimizing arc flash exposure. This directly reduces fault propagation and speeds service restoration in motor feeders and machine circuits operating up to 600 V. The Class H fuses offer reliable overcurrent protection across a wide HP range, supporting 7.5 HP at 480 V single-phase, 10 HP at 600 V single-phase, 15 HP at 480 V three-phase, and 20 HP at 600 V three-phase, while enabling selective coordination and maintenance efficiency. The NEMA 1, painted steel enclosure delivers indoor mechanical protection, simplifying installation in clean rooms and control panels. Certified UL Listed and CSA Labeled, the switch streamlines compliance audits and regulatory reporting. Its compact footprint and 16 in length, 8.06 in width, and 5.25 in height make retrofits easier in existing panel layouts, reducing field labor and inventory costs. Overall, the product aligns with industrial power distribution practices, providing reliable protection with a straightforward wiring approach and a reduced total cost of ownership.
Get a Quick Quote for a Eaton DH361NGK-CSA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH361NGK-CSA?
Enquire Now
FAQs
The DH361NGK-CSA is a three-pole, four-wire device designed for indoor use in NEMA 1 enclosures. It accepts Class H fuses and features fusible with neutral. Plan for a 16 in long by 8.06 in wide footprint, 5.25 in height, and a 20 lb weight to ensure proper mounting within standard control panels. Verify NEC 230.62 barrier compliance during panel integration.
The device is rated for 30 A at 600 V. HP ratings vary by configuration: 7.5 HP at 480 V single-phase, 10 HP at 600 V single-phase, 15 HP at 480 V three-phase, and 20 HP at 600 V three-phase. This makes it suitable for a range of motors and feeders in indoor industrial environments.
No, this model is specified with a NEMA 1 enclosure and painted steel to provide indoor protection. For outdoor or harsher environments, consider enclosures with higher NEMA ratings and protective coatings, or use appropriate weatherproof housings and barriers to maintain safety and compliance in exposed installations.
This switch is UL Listed and CSA Labeled, indicating compliance with key North American safety and performance standards. These certifications support regulatory approvals, reduce vendor risk in safety audits, and facilitate procurement within regulated industries such as manufacturing and processing where electrical protection devices must meet recognized standards.
The DH361NGK-CSA reduces downtime through reliable overcurrent protection and straightforward field servicing of Class H fuses. Its compact footprint simplifies retrofits in crowded panels, lowering installation labor. With durable painted steel construction and UL/CSA certifications, it minimizes warranty and compliance risks while supporting predictable maintenance schedules and lower long-term operating costs.
