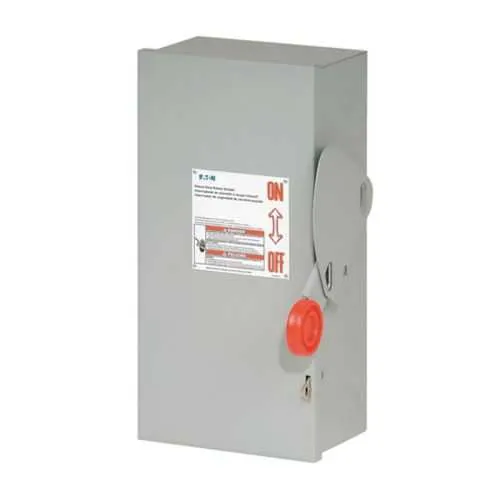

Eaton DH361NRK Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH361NRK
Quick Summary
Eaton heavy duty fusible safety switch is designed to provide reliable isolation for motor circuits and control panels in harsh industrial environments. This device delivers safe, fusible-with-neutral protection in a three-pole, four-wire configuration up to 600 V, helping reduce arc flash risk and downtime. UL Listed certification supports compliance across regulated installations, while the NEMA 3R enclosure protects against moisture and dust in outdoor or challenging locations. By pairing robust hardware with straightforward wiring, it minimizes maintenance labor and accelerates commissioning. For buyers pursuing safer, compliant, and cost-efficient protection, this switch integrates easily with existing Eaton and compatible low-voltage systems, supporting 30 A circuits and HP ratings up to 20 hp.
Product Information
Extended Description
DH361NRK Eaton: Eaton Enhanced visible blade single-throw safety switch, 30 A, NEMA 3R, Painted galvanized steel, Class H, Fusible with neutral, Three-pole, Four-wire, 600 V, Max Hp: 7.5, 10/ 15, 20 hp (1/3PH @480, 600 V), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH361NRK
UPC
782113205533
Product Length/Depth
16.7 in
Product Height
8.5 in
Product Width
9.5 in
Product Weight
12 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class H
Fuse configuration
Fusible with neutral
Number Of Poles
Three-pole
Number of wires
4
Type
Heavy duty fusible safety switch
Wire size
#14-2 AWG Cu/Al
Amperage Rating
30A
HP rating - max
7.5, 10/ 15, 20 hp (1/3PH @480, 600 V)
NEMA rating
NEMA 3R
Voltage rating
600 V
Product Category
Heavy Duty, Fusible with neutral
Three-pole, four-wire configuration with fusible with neutral simplifies wiring and improves isolation, reducing wiring errors and downtime in motor control centers. Business impact: safer installations and faster commissioning for panel builders and end users. Application: industrial automation panels and machine control where neutral switching is required. The 30 A, 600 V rating enables reliable protection for motors up to 20 hp (1/3PH at higher voltages), delivering consistent performance with measurable energy and maintenance savings. Enclosure is NEMA 3R with painted galvanized steel, offering weather resistance for outdoor and dusty environments, which translates to reduced enclosure failures and fewer field service calls. Fuse class provision Class H enhances selective protection, lowering nuisance trips and extending equipment life. Wire size accepts #14-2 AWG Cu/Al for straightforward termination, streamlining installation and reducing labor costs. UL Listed certification supports regulatory compliance and audit readiness across industrial facilities.
Get a Quick Quote for a Eaton DH361NRK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH361NRK?
Enquire Now
FAQs
The DH361NRK is designed for a three-pole, four-wire setup with a fusible-neutral configuration. Install the NEMA 3R enclosure in a suitable location, connect #14-2 AWG Cu/Al conductors to the terminals, and ensure proper alignment of the neutral conductor. Verify voltage rating of 600 V and ensure wiring complies with local codes and the UL Listed listing. Proper torque and fuse selection per Class H are essential for safe operation and reliable protection.
Key specs include a 30 A amperage rating, 600 V voltage rating, NEMA 3R enclosure, a three-pole configuration with four wires, and a HP rating up to 20 hp for 1/3-phase at higher voltages. It uses fusible with neutral, supports #14-2 AWG Cu/Al conductors, and carries UL Listed certification for compliance and safety in industrial installations.
Yes. The DH361NRK features a NEMA 3R enclosure and painted galvanized steel construction, designed to withstand outdoor and dusty or wet environments. This makes it suitable for outdoor equipment, motor control panels adjacent to industrial facilities, and other harsh locations where dependable electrical protection and enclosure integrity are required.
The DH361NRK carries UL Listed certification, confirming compliance with recognized electrical safety standards. While CE or IP ratings are not specified in the data, the UL listing and NEMA 3R enclosure provide strong regulatory and environmental protection signals for many industrial installations, helping streamline procurement and compliance audits.
Maintenance needs are minimized by a robust enclosure and reliable fuse-based protection, reducing unexpected outages. With a 30 A rating and HP up to 20 hp, it supports efficient motor protection in common 1/3 HP to mid-size pump and conveyor applications. The UL Listed rating also aids in compliance, potentially lowering audit costs and downtime while improving overall equipment availability.
