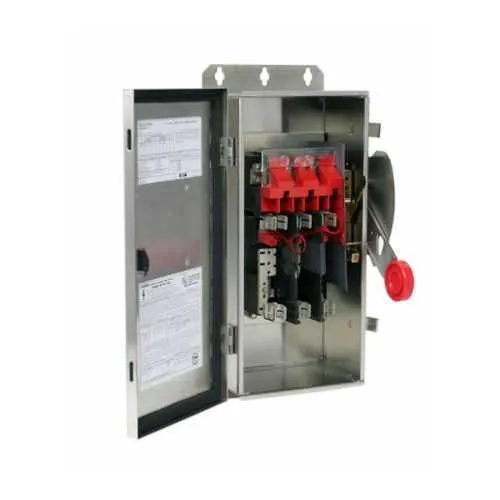

Eaton DH361NWK Heavy Duty Safety Switch - NEMA 4X
Part Number: DH361NWK
Quick Summary
Eaton DH361NWK heavy duty safety switch enables safe, controlled power isolation for industrial motors and machines. In harsh environments, maintenance teams struggle with corrosion, washdown exposure, and unplanned downtime; this unit minimizes those risks with a corrosion-resistant, 304 stainless steel enclosure and a robust NEMA 4X rating. UL Listed certification supports compliance while the three-pole, four-wire design with Class H fuse and neutral delivers reliable disconnects. With 600 V and 30 A ratings, it accommodates up to 20 hp motors using #14-2 Cu/Al wiring, helping reduce spare parts inventory and simplify control panel layouts.
Product Information
Extended Description
DH361NWK Eaton: Eaton Enhanced visible blade single-throw safety switch, Corrosion resistant, 30 A, NEMA 4X, 304 stainless steel, Class H, Fusible with neutral, Three-pole, Four-wire, 600 V, Max Hp: 7.5, 10/ 15, 20 hp (1/3PH @480, 600 V), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH361NWK
UPC
782113211770
Product Length/Depth
10.22 in
Product Height
19.08 in
Product Width
7.73 in
Product Weight
22 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Enclosure
NEMA 4X
Enclosure material
304 stainless steel
Fuse class provision
Class H
Fuse configuration
Fusible with neutral
Number Of Poles
Three-pole
Number of wires
4
Type
Heavy duty fusible safety switch
Wire size
#14-2 AWG Cu/Al
Amperage Rating
30A
HP rating - max
7.5, 10/ 15, 20 hp (1/3PH @480, 600 V)
NEMA rating
NEMA 4X (Stainless)
Voltage rating
600 V
Product Category
Heavy Duty, Fusible with neutral
Corrosion-resistant enclosure translates to longer service life in washdown zones, reducing maintenance costs and replacement parts. This means greater uptime for conveyors and pumps in manufacturing lines and process environments. The three-pole fusible switch with neutral enables true isolation in four-wire circuits, supporting safe motor control and simpler circuit protection strategies in food processing and packaging lines. NEMA 4X stainless steel construction offers rugged durability for outdoor or damp installations, lowering enclosure leaks and corrosion-related failures across facility floors and outdoor equipment corners. The Class H fuse provision with fusible contacts ensures dependable overcurrent protection, shielding motors from damaging surges and enabling predictable maintenance intervals. Wiring flexibility with #14-2 AWG Cu/Al simplifies field termination, reduces labor time during installation, and supports standard control-circuit integration for OEM and retrofit projects. UL Listed certification reinforces compliance and procurement confidence, smoothing spec adherence for contractors and end users alike.
Get a Quick Quote for a Eaton DH361NWK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH361NWK?
Enquire Now
FAQs
Installation requires a three-pole, four-wire configuration with a neutral conductor. Use #14-2 AWG Cu/Al conductors within the switch’s feed and load terminals, ensuring the outer enclosure remains sealed to preserve the NEMA 4X rating. Follow standard lockout/tagout procedures and verify UL Listed compliance during commissioning to ensure safe and compliant operation.
Key specs are: 30 A rating, 600 V maximum voltage, three-pole configuration with four wires, fuse class provision Class H, fusible with neutral, and a max horsepower rating of 7.5–20 hp depending on motor configuration (1/3 PH at 480–600 V). Wire size supports #14-2 AWG Cu/Al, and enclosure is NEMA 4X with 304 stainless steel.
Yes. The unit uses a 304 stainless steel enclosure rated NEMA 4X, designed for washdown and corrosive environments. This construction minimizes corrosion-related downtime, extends service life in damp or outdoor settings, and maintains enclosure integrity even in frequent cleaning cycles, which is a common requirement in food processing and manufacturing facilities.
The DH361NWK is UL Listed, which provides independent safety certification and helps with code compliance and procurement approvals. While other standards like IP/SIL/CE are industry-relevant, the UL Listing coupled with the NEMA 4X enclosure guarantees robust protection for motor-control disconnects in challenging environments.
The device offers predictable maintenance with corrosion-resistant stainless construction, reducing enclosure maintenance and spare parts costs over time. Its reliable isolation and protection minimize unplanned downtime for critical equipment like conveyors and pumps, improving overall asset availability and enabling faster maintenance turnaround during scheduled plant outages.
