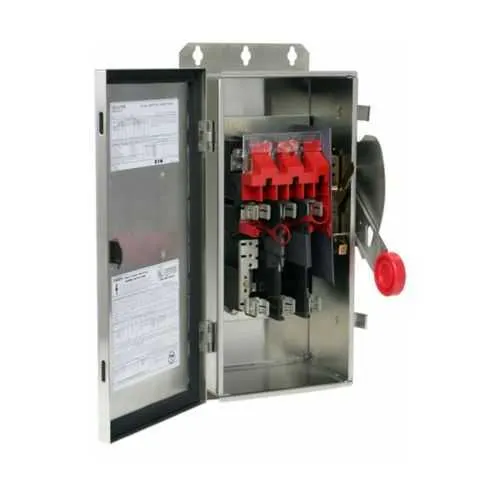

Eaton DH361NWK316 Heavy duty fusible safety switch - NEMA 4X
Part Number: DH361NWK316
Quick Summary
Eaton heavy duty fusible safety switch provides reliable power isolation for industrial machinery in harsh environments. Operators in manufacturing and processing facilities grapple with corrosion, frequent washdowns, and uptime pressures; this unit’s 316 stainless steel enclosure and corrosion-resistant design help extend service life and reduce maintenance. UL Listed certification, coupled with a NEMA 4X enclosure and NEC-compliant barrier, delivers proven safety and regulatory confidence in outdoor or challenging environments. Designed for quick installation, it supports 30 A circuits and up to 600 V, with wiring for #14-2 Cu/Al. The durable construction and clear fault isolation translate into lower total cost of ownership for OEMs and end users.
Product Information
Extended Description
DH361NWK316 Eaton: Eaton Heavy duty single-throw fused safety switch, Corrosion resistant, 30 A, NEMA 4X, Grade 316 stainless steel, Class H, Fusible with neutral, Three-pole, Four-wire, 600 V, Max Hp: 7.5, 10/ 15, 20 hp (1/3PH @480, 600 V), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH361NWK316
UPC
782116490059
Product Length/Depth
10 in
Product Height
17.88 in
Product Width
8.13 in
Product Weight
22 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Enclosure
NEMA 4X
Enclosure material
316 stainless steel
Fuse class provision
Class H
Fuse configuration
Fusible with neutral
Number Of Poles
Three-pole
Number of wires
4
Type
Heavy duty fusible safety switch
Wire size
#14-2 AWG Cu/Al
Amperage Rating
30A
HP rating - max
7.5, 10/ 15, 20 hp (1/3PH @480, 600 V)
NEMA rating
NEMA 4X (Stainless)
Voltage rating
600 V
Product Category
Heavy Duty, Fusible with neutral
Eaton DH361NWK316 features a corrosion-resistant 316 stainless steel enclosure with a robust NEMA 4X protection rating. This construction delivers superior resistance to humidity, splashes, and corrosive atmospheres, reducing downtime and maintenance costs in waterfront, food processing, chemical, or washdown environments. Field teams value predictable performance, shorter maintenance windows, and longer service intervals, especially where equipment sits over lengthy production runs or in outdoor facilities. The unit is a three-pole, four-wire safety switch with fusible with neutral configuration. This arrangement provides reliable isolation for three-phase circuits while preserving neutral paths, supporting safe motor control and drive applications. The 10-inch depth and compact footprint fit standard enclosure spaces, and the 22 lb weight offers a practical balance between rugged protection and on-site handling. Fuse class provision is Class H, delivering protective coordination and quick, clean disconnection during fault conditions. Rated at 30A and 600V, it supports motor and equipment loads up to 20 hp depending on voltage and configuration. The fusible-with-neutral design also simplifies wiring schemes in control panels and minimizes nuisance tripping in demanding industrial processes. Wiring and dimensions support straightforward installation. Accepts #14-2 AWG Cu/Al conductors, with product dimensions of 10 in depth, 17.88 in height, and 8.13 in width. The 22 lb unit is easy to handle during installation, and UL listing coupled with a NEC-compliant barrier provides regulatory confidence for new builds or panel retrofits in harsh environments. Compatibility and serviceability remain key strengths. The DH361NWK316 integrates with Eaton catalogs and spare-part inventories, offers durable, long-life operation, and is backed by a one-year warranty from the Eaton policy. With its 600 V rating, NEMA 4X enclosure, UL Listing, and corrosion-resistant enclosure materials, it helps facilities meet safety, reliability, and uptime targets across demanding industrial processes.
Get a Quick Quote for a Eaton DH361NWK316
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH361NWK316?
Enquire Now
FAQs
The DH361NWK316 is a three-pole, four-wire fusible safety switch designed for straightforward panel integration. It accepts #14-2 Cu/Al conductors, fits a compact 10 in depth enclosure, and uses a NEMA 4X, 316 stainless steel housing. This combination supports easy field wiring, safe disconnects, and reliable operation in both indoor and outdoor washdown environments, ensuring compatibility with standard industrial control panels.
This switch provides a 30A amperage rating and a 600V maximum voltage rating. It supports motor loads up to 20 hp (varies by phase and voltage), with HP ratings listed as 7.5, 10/15, and 20 hp for 1/3PH at 480V to 600V. These specifications enable precise protection for a range of three-phase motors in demanding applications.
Yes. The enclosure is 316 stainless steel with a NEMA 4X rating, providing superior corrosion resistance and protection against water ingress in outdoor or washdown environments. This makes the DH361NWK316 ideal for food processing, chemical plants, and water treatment facilities where rugged protection and reliability are essential.
The switch is UL Listed and features a NEC-compliant barrier, supporting regulatory compliance in regulated facilities. Its NEMA 4X enclosure and corrosion-resistant construction further reinforce suitability for harsh environments, while the Class H fuse provision ensures proper protective coordination for reliable electrical safety.
Warranty coverage follows Eaton policy: one year from installation or eighteen months from shipment, whichever occurs first. Maintenance requirements are minimal but should include periodic visual inspections and fuse checks. The durable 316 stainless steel housing, UL listing, and robust electrical ratings collectively contribute to lower maintenance costs and reduced downtime over the equipment’s life cycle.
