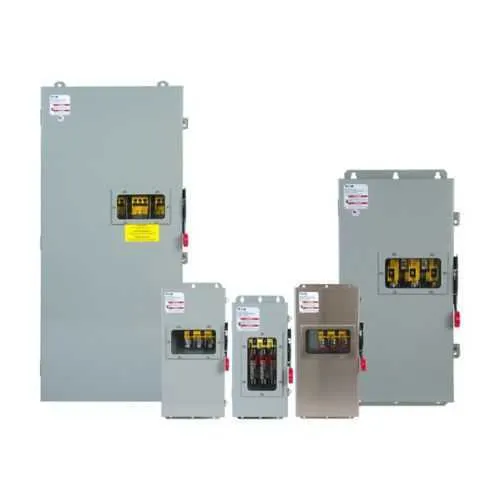

Eaton DH361NWKW Heavy Duty Fusible Safety Switch - NEMA 4X
Part Number: DH361NWKW
Quick Summary
Eaton heavy duty fusible safety switch protects motor circuits in harsh industrial environments. This device delivers reliable isolation and protection for demanding motor loads, reducing unexpected downtime and safeguarding personnel. UL Listed certification and a NEMA 4X stainless enclosure ensure dependable operation in washdown areas and corrosive settings, while Class H fuse provision delivers robust overcurrent protection. With three-pole, four-wire configuration and a neutral option, this safety switch supports versatile motor control and easy integration into existing panels. Engineered for duty-critical applications, it aligns with industrial procurement needs for compliance, longevity, and total cost of ownership.
Product Information
Extended Description
DH361NWKW Eaton: Eaton Enhanced visible blade single-throw safety switch, Enhanced visilbe blade, corrosion resistant, 30 A, NEMA 4X, 304 stainless, Class H, Neutral, Three-pole, Four-wire, 600 V, Max Hp: 7.5, 10/ 15, 20 hp (1/3PH @480, 600 V), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH361NWKW
UPC
782114022580
Product Length/Depth
23 in
Product Height
10.5 in
Product Width
12.5 in
Product Weight
22 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
For 2-pole applications; use outside poles of 3-pole switch
Enclosure
NEMA 4X
Enclosure material
304 stainless steel
Fuse class provision
Class H
Fuse configuration
Fusible with neutral
Number Of Poles
Three-pole
Number of wires
4
Type
Heavy duty fusible safety switch
Wire size
#14-2 AWG Cu/Al
Amperage Rating
30A
HP rating - max
7.5, 10/ 15, 20 hp (1/3PH @480, 600 V)
NEMA rating
NEMA 4X (Stainless)
Voltage rating
600 V
Product Category
Heavy Duty, Fusible with neutral
Feature: 30 A amperage rating and 600 V voltage rating provide robust protection for moderate to heavy motor loads. Business Impact: minimizes wiring failures and protects equipment, reducing unplanned downtime and extending motor life. Application: suitable for conveyors, pumps, and fans in aggressive environments. Feature: NEMA 4X enclosure with 304 stainless steel construction offers superior corrosion resistance. Business Impact: extends service intervals in washdown areas and chemical plants, lowering maintenance costs. Application: food & beverage processing, water treatment, and outdoor installations. Feature: Three-pole, four-wire configuration with neutral and Class H fuse provision enhances safe isolation and fault management. Business Impact: simplifies wiring, improves fault-clearing performance, and supports compliant panel integration. Application: industrial motor control centers and switchgear assemblies. Feature: Compact yet rugged footprint with dimensions 23 in deep, 12.5 in wide, 10.5 in high and 22 lb weight. Business Impact: easier installation and retrofits with minimal space impact, reducing labor time. Application: panel upgrades and new machine builds requiring reliable protection in tight spaces. Feature: UL Listed certification and documented warranty provide assurance of quality and support. Business Impact: reduces risk in procurement and simplifies supplier qualification. Application: regulated facilities and enterprise projects seeking proven safety compliance.
Get a Quick Quote for a Eaton DH361NWKW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH361NWKW?
Enquire Now
FAQs
For panel integrations, plan for a three-pole, four-wire configuration with a neutral, accommodating up to #14-2 AWG Cu/Al conductors. The enclosure is NEMA 4X and stainless steel, enabling secure mounting in washdown zones. Ensure panel space allows the 23 inch depth and 12.5 inch width to maintain accessible wiring and service clearances.
DH361NWKW supports 30 A continuous current with a 600 V rating, and a three-pole, four-wire arrangement with a neutral. It uses a Class H fuse and provides fusible protection with neutral, making it suitable for standard three-phase motor circuits up to 20 hp (per ratings) in appropriate conditions.
Yes. The device features a NEMA 4X enclosure in 304 stainless steel, delivering corrosion resistance and protection against washdown environments. This makes it well-suited for outdoor or damp industrial applications where exposure to water, steam, or chemicals is common.
The DH361NWKW is UL Listed, ensuring compliance with recognized safety standards. The NEMA 4X enclosure rating further certifies suitability for corrosive and washdown environments, while the stainless steel construction supports long service life in harsh facilities.
Maintenance is typically low due to solid-state protection and a robust fusible design. The stainless enclosure resists corrosion, reducing refurbishment costs, and UL Listing supports ongoing compliance. Overall, expect reduced downtime and longer motor life, translating to a favorable total cost of ownership in harsh industrial settings.
