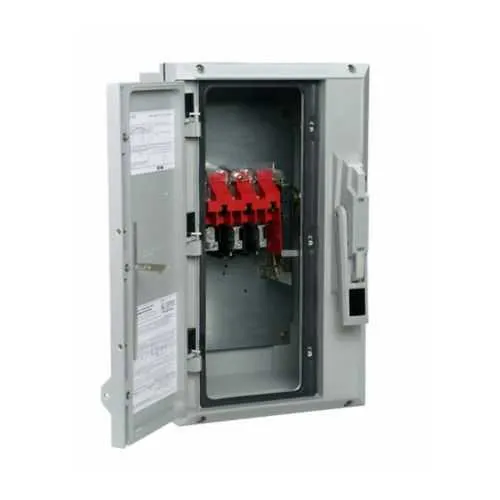

Eaton DH362FCK Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH362FCK
Quick Summary
Eaton DH362FCK is a heavy duty fusible safety switch designed for service entrances and harsh industrial environments. Downtime and unexpected arc-flash risk can drain productivity, especially in demanding facilities where quick isolation is critical. It carries UL Listed certification and NEC 230.62 compliant barriers, with a NEMA 4X, non-metallic enclosure for corrosion resistance. Built for reliability, it uses a Class H fuse, three poles, and #14-2 Cu/Al wiring to support safe, straightforward installation in low voltage protection schemes. Together with Eaton's warranty coverage and lug-kit compatibility, it provides measurable uptime improvements and long-term value for industrial facilities.
Product Information
Extended Description
DH362FCK Eaton: Eaton Heavy duty single-throw fused safety switch, Corrosion resistant, 60 A, NEMA 4X, Non-metallic, KRYDON, Class H, Fusible without neutral, Three-pole, Three-wire, 600 V, Max Hp: 20, 25/ 30, 50 hp (1/3PH @480, 600 V), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH362FCK
UPC
782114296004
Product Length/Depth
15.46 in
Product Height
19.25 in
Product Width
10.25 in
Product Weight
32 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Suitable for service entrance use with a neutral or ground lug kit installed
Enclosure
NEMA 4X
Enclosure material
Non-metallic, KRYDON
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Wire size
#14-2 AWG Cu/Al
Amperage Rating
60A
HP rating - max
20, 25/ 30, 50 hp (1/3PH @480, 600 V)
NEMA rating
NEMA 4X (Non-Metallic)
Voltage rating
600 V
Product Category
Heavy Duty, Harsh Environment - EnviroLine
Feature: NEMA 4X enclosure with non-metallic KRYDON body. Business Impact: Delivers robust corrosion resistance and long-term reliability in harsh environments, reducing maintenance cycles and unplanned downtime. Application: Outdoor switchgear, washdown areas, coastal facilities. Feature: Class H fuse provision and fusible without neutral. Business Impact: Provides precise protection and flexible configuration for motor loads, improving fault isolation and system safety. Application: Three-pole, 60 A circuits in conveyors, pumps, and packaged equipment. Feature: 60 A amperage rating with HP up to 50 hp (1/3PH @480/600 V). Business Impact: Supports a broad range of motor sizes and helps optimize energy use while ensuring reliable interruption during faults. Application: Medium to large motor drives and process equipment. Feature: #14-2 AWG Cu/Al wiring and three wires. Business Impact: Enables straightforward wiring and service-entrance compatibility, reducing install time and error potential. Application: Retrofit into existing panels or new installations with lug-kit options. Feature: UL Listed, NEC 230.62 barrier, and NEMA 4X corrosion resistance. Business Impact: Simplifies compliance and enhances safety with code-aligned barriers and durable enclosure. Application: Facilities with strict electrical codes and exposure to moisture or chemicals. Feature: Compact 15.46 in L x 19.25 in H x 10.25 in W footprint and 32 lb weight. Business Impact: Easier integration into limited spaces and reduced shipping/handling costs. Application: Control rooms, panel sections, and space-constrained line-ups.
Get a Quick Quote for a Eaton DH362FCK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH362FCK?
Enquire Now
FAQs
The DH362FCK is designed for service entrance use and can be installed with a neutral or ground lug kit. It supports three-wire, #14-2 Cu/Al wiring and a 60 A, 600 V circuit. Ensure proper clearance for the 15.46 in depth, 19.25 in height, and 10.25 in width, and verify UL Listed and NEC 230.62 barrier compliance.
This switch is rated for 60 A and 600 V with a maximum motor horsepower rating of up to 50 hp for 1/3PH configurations at 480–600 V. It is suitable for medium-size motor loads and applications requiring reliable isolation and protection.
Yes. The catalog notes indicate suitability for service entrance use with a neutral or ground lug kit installed, making retrofits and upgrades straightforward in existing service panels or new installations.
The DH362FCK is UL Listed, features NEC 230.62 compliant barriers, and comes in a NEMA 4X, non-metallic KRYDON enclosure, delivering corrosion resistance and regulatory compliance in challenging environments.
With a rugged, corrosion-resistant enclosure, Class H fuse protection, and a compact footprint, the DH362FCK reduces maintenance cycles, supports predictable uptime, and simplifies field servicing in harsh plants and washdown areas.
