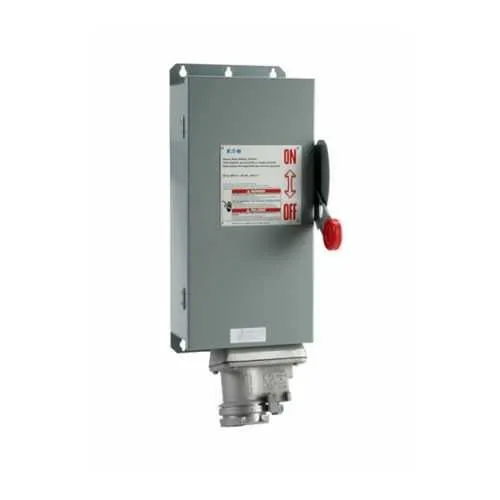

Eaton DH362FD5WRK Heavy Duty Fusible Switch - NEMA 12/3R
Part Number: DH362FD5WRK
Quick Summary
The Eaton DH362FD5WRK heavy duty fusible safety switch provides reliable circuit protection for industrial power distribution. This model minimizes installation risk by pairing a rugged NEMA 12/3R enclosure with straightforward three-pole wiring and Class H fuse provisions for #14-2 Cu/Al conductors. Users commonly encounter enclosure mismatches and incorrect fusible sizing, which can drive downtime and wiring errors; this device is designed to mitigate those pain points. Key certifications include UL Listed for electrical safety and NEMA 12/3R compatibility, ensuring performance in harsh environments. By aligning with a 60 A, 600 V rating and a three-wire configuration, it delivers scalable protection that supports motor control, improves uptime, and reduces_field__rework across industrial facilities.
Product Information
Extended Description
DH362FD5WRK Eaton: Eaton Heavy duty receptacle safety switch, Appleton POWERTITE® receptacle, 60 A, NEMA 12/3R, Painted galvanized steel, Class H, Three-pole, Three-wire, 600 V, Max Hp: 20, 25/ 30, 50 hp (1/3PH @480, 600 V), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH362FD5WRK
UPC
782113978567
Product Length/Depth
30 in
Product Height
10 in
Product Width
13.75 in
Product Weight
27 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Power plugs not supplied with the receptacle
Enclosure
NEMA 12, NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Wire size
#14-2 AWG Cu/Al
Amperage Rating
60A
HP rating - max
20, 25/ 30, 50 hp (1/3PH @480, 600 V)
NEMA rating
NEMA 12/3R
Voltage rating
600 V
Product Category
Heavy Duty, Harsh Environment - EnviroLine
Feature → Business Impact → Application: The 60 A current rating and 600 V maximum enable reliable protection for common industrial motors and control panels, translating to safer startups and fewer nuisance trips in manufacturing lines where uptime is critical. This supports applications such as conveyors and pumps in harsh environments, ensuring consistent motor protection with minimal maintenance. Feature → Business Impact → Application: NEMA 12/3R enclosure and painted galvanized steel construction deliver rugged protection against dust, moisture, and incidental contaminants, reducing corrosion risk and extending service life in outdoor or dirty factory floors. This is ideal for harsh environments like food processing or packaging lines where enclosure integrity matters for reliability. Feature → Business Impact → Application: Class H fuse provision and fusible without neutral configuration simplify fuse sizing and disconnection during maintenance, lowering field wiring mistakes and enabling fast fault isolation in emergency shutdown scenarios. This supports standard 3-phase motor circuits and aligns with common field wiring practices for #14-2 Cu/Al conductors. Feature → Business Impact → Application: Three-pole, three-wire design with Appleton POWERTITE receptacle compatibility (per extended notes) streamlines installation on modern control panels, enabling straightforward interconnections and reducing labor costs during panel upgrades or new installs. Feature → Business Impact → Application: UL Listed certification ensures regulatory compliance and safer operation, while the 20/25/30/50 hp (1/3PH @480, 600 V) range supports scalable motor protection strategies across plant floors, improving return on investment and reducing total cost of ownership. Feature → Business Impact → Application: Overall, the DH362FD5WRK delivers predictable performance, ease of maintenance, and compatibility with common industrial wiring practices, helping engineers meet safety standards and keep critical equipment online with minimal downtime.
Get a Quick Quote for a Eaton DH362FD5WRK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH362FD5WRK?
Enquire Now
FAQs
Installers should connect three incoming lines to the three poles, using #14-2 AWG Cu/Al conductors as rated. The switch is designed for a NEMA 12/3R enclosure with a Class H fuse provision and fusible without neutral configuration. Ensure the enclosure mounting aligns with the panel cutout, and verify UL Listed status for compliance. Power plugs are not supplied with the receptacle, per catalog notes, so prepare the appropriate fittings and interconnects prior to assembly.
This switch supports up to 60 A with a maximum HP rating of 20, 25/30, and up to 50 hp for 1/3PH systems at 480–600 V. It is suitable for controlling medium-size motors in manufacturing lines, conveyors, and pumps. The three-pole, three-wire configuration simplifies motor starter integration, while the 600 V rating provides headroom for typical plant power distributions.
Yes. The unit is UL Listed, confirming compliance with recognized safety standards for electrical protection devices. It features a NEMA 12/3R enclosure for protection in dusty and moderate moisture environments, and it uses Class H fuses as part of its fusible safety switch design. These attributes collectively support safer operation and regulatory alignment for industrial facilities.
The combination of a NEMA 12/3R enclosure and painted galvanized steel construction provides robust protection against dust, grime, and corrosion for harsh environments. The fusible without neutral configuration simplifies wiring, and the #14-2 Cu/Al conductors compatibility reduces the need for specialty cabling. Overall, this design minimizes downtime during maintenance and reduces wiring errors on upgrade projects.
Expect improved uptime from reliable protection and fast fault isolation, reduced field wiring errors thanks to standard conductor sizing, and simplified maintenance due to clear three-pole operation and UL Listed safety. Although exact ROI varies by application, the combination of predictable performance, scalable motor protection (up to 50 hp), and durable enclosure reduces downtime and replacement costs over the equipment lifecycle.
