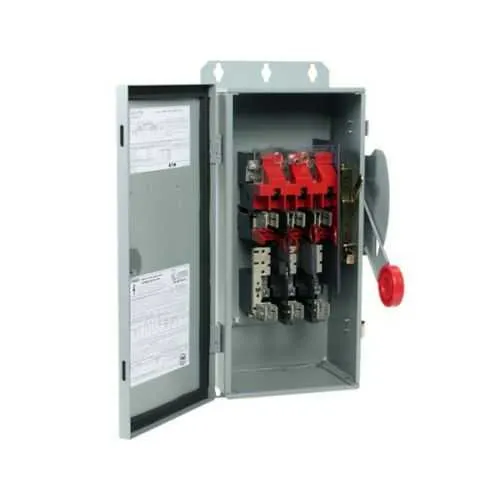

Eaton DH362FDK-GCL Heavy Duty Fusible Switch - UL Listed
Part Number: DH362FDK-GCL
Quick Summary
Eaton heavy duty fusible safety switch provides reliable circuit isolation for industrial machinery and mill-duty panels. Maintenance teams struggle with downtime, weather exposure, and compliance pitfalls; this unit's dust-tight NEMA 12/3R enclosure helps minimize outages and simplify service. UL Listed and NEC 230.62 barrier-compliant, it can be field modified for NEMA 3R rainproof service when needed. With 60 A, 600 V capability and a three-pole design, it supports safe, scalable power distribution while offering Neutral Kit compatibility for service entrances. Painted galvanized steel construction and a compact 20 x 9.5 x 8.5 in footprint fit standard industrial layouts and harsh environments.
Product Information
Extended Description
DH362FDK-GCL Eaton: Eaton Heavy duty single-throw fused safety switch, Mill-duty, dust-tight, 60 A, NEMA 12/3R, Painted galvanized steel, Class H, Three-pole, Three-wire, 600 V, Max Hp: 20, 25/ 30, 50 hp (1/3PH @480, 600 V), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH362FDK-GCL
UPC
782114889725
Product Length/Depth
20 in
Product Height
8.5 in
Product Width
9.5 in
Product Weight
22 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Suitable for service entrance use with a Neutral Kit installed. Can be field modified to meet NEMA 3R rainproof requirements when a factory provided drain hole is opened.
Enclosure
NEMA 12, NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Wire size
#14-2 AWG Cu/Al
Amperage Rating
60A
HP rating - max
20, 25/ 30, 50 hp (1/3PH @480, 600 V)
NEMA rating
NEMA 12/3R
Voltage rating
600 V
Product Category
Heavy Duty, Mill-duty
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Eaton Specification Sheet - DH362FDK-GCL
Feature: Three-pole, fusible without neutral design with Class H fuse provides robust overload protection. Business Impact: Reduces motor wear, short-circuit damage, and unplanned downtime, lowering maintenance costs in high-use machinery applications. Application: Ideal for 60 A feeds to motors and drives in mill-duty lines powered up to 600 V, enabling reliable isolation in automation schemes. Feature: NEMA 12 and NEMA 3R enclosure, dust-tight by design and field-modifiable for rainproof service. Business Impact: Improves uptime in dirty plants and outdoor spaces while simplifying weatherproofing compliance. Application: Suitable for indoor plant rooms and outdoor service yards, with drain-hole modification per catalog notes for NEMA 3R readiness. Feature: Painted galvanized steel enclosure with Class H fuse provision and three-pole, three-wire configuration. Business Impact: Delivers durable protection and straightforward wiring, reducing installation time and field adjustments. Application: Fits standard distribution layouts and service feeder installations in industrial facilities. Feature: UL Listed and NEC 230.62 barrier compliant. Business Impact: Supports regulatory audits and safety program requirements, streamlining procurement approvals. Application: Essential for electrical design and commissioning in manufacturing environments. Feature: 60 A, 600 V rating with #14-2 AWG Cu/Al wiring across three wires. Business Impact: Enables scalable power distribution with familiar wiring practices, lowering design risk. Application: Ideal for heavy-duty power feeds to motors, control panels, and automation equipment in industrial settings.
Get a Quick Quote for a Eaton DH362FDK-GCL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH362FDK-GCL?
Enquire Now
FAQs
The DH362FDK-GCL is designed for three-pole, fusible service with 60A at up to 600V. It supports service entrances with a Neutral Kit and can be field-modified for NEMA 3R rainproof operation, making it suitable for mill-floor equipment rooms, outdoor enclosures, and other harsh environments requiring reliable isolation and protection.
Key specs include a 60A amperage rating, 600V voltage rating, three-pole, three-wire configuration, and #14-2 AWG Cu/Al wire size. It uses Class H fuses and is fusible without a neutral, matching common motor feeders and control circuits in industrial facilities.
Yes. The DH362FDK-GCL supports service entrance applications when used with a Neutral Kit. It is compliant with NEC 230.62 barrier requirements and can be field modified to meet NEMA 3R rainproof needs, enhancing flexibility for varied installation scenarios.
The switch is UL Listed and NEC 230.62 barrier-compliant. These certifications provide regulatory validation for safe operation and help streamline safety reviews during procurement and commissioning in industrial plants.
Warranty coverage follows Eaton's policy: one year from installation or eighteen months from shipment, whichever comes first. This supports long-term reliability, with access to Eaton specifications and datasheets for ongoing maintenance and ROI assessments in automation projects.
