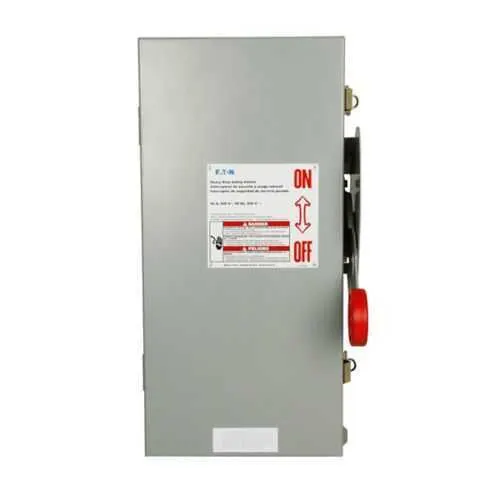

Eaton DH362FDK2WR Heavy Duty Fusible Switch - UL Listed
Part Number: DH362FDK2WR
Quick Summary
Eaton heavy duty fusible safety switch delivers safe, reliable disconnection for industrial motor and panel protection. It addresses uptime challenges by simplifying installation, reducing unplanned downtime, and supporting maintenance workflows. It includes UL Listed certification and a NEMA 12/3R enclosure for harsh environments. For integrators, its three-pole design, 60 A rating, and compatibility with #14-2 Cu/Al wiring support quick, safe installation and predictable performance. The device is designed for robust service in demanding settings, enabling facilities to meet code requirements while controlling lifecycle costs. This combination translates into improved safety, faster commissioning, and lower total cost of ownership in industrial power distribution.
Product Information
Extended Description
DH362FDK2WR Eaton: Eaton Heavy duty single-throw fused safety switch, Crouse-Hinds®ARKTITE receptacle, 60 A, NEMA 12/3R, Painted galvanized steel, Class H, Three-pole, Three-wire, 600 V, Max Hp: 20, 25/ 30, 50 hp (1/3PH @480, 600 V), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH362FDK2WR
UPC
782113207926
Product Length/Depth
10.22 in
Product Height
19.08 in
Product Width
7.73 in
Product Weight
26 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Power plugs not supplied with the receptacle
Enclosure
NEMA 12, NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Wire size
#14-2 AWG Cu/Al
Amperage Rating
60A
HP rating - max
20, 25/ 30, 50 hp (1/3PH @480, 600 V)
NEMA rating
NEMA 12/3R
Voltage rating
600 V
Product Category
Heavy Duty, Harsh Environment - EnviroLine
Feature: Heavy-duty fusible safety switch with three poles and a 60 A amperage rating. Business Impact: Provides immediate electrical isolation and clear fault path, reducing arc flash exposure and enabling reliable protection coordination. Application: Motor drives, pumps, and other three-phase equipment in manufacturing lines. The result is improved machine uptime and safer maintenance windows. Feature: NEMA 12 and NEMA 3R enclosure in painted galvanized steel. Business Impact: Delivers dust- and water-resistance, extending service life in dusty shops or outdoor locations with minimal corrosion risk. Application: Harsh environments near conveyors, washdown zones, or exterior equipment rooms. This leads to lower replacement costs and fewer field service calls. Feature: Fuse class provision Class H and fusible without neutral configuration. Business Impact: Enables precise overload protection and selective coordination with downstream devices, minimizing nuisance trips and protecting valuable assets. Application: Industrial control panels requiring reliable protection without neutral wiring. This supports compliance with electrical codes while maintaining smooth operations. Feature: Receptacle compatibility with Crouse-Hinds ARKTITE receptacle and wiring capability of #14-2 Cu/Al. Business Impact: Simplifies integration with existing components and reduces wiring complexity during installation. Application: Panel upgrades or new builds where Arktite receptacles are in use. This results in faster turnover and consistent wiring practices. Feature: Compact dimensions (10.22 in length, 19.08 in height, 7.73 in width) and 26 lb weight. Business Impact: Facilitates space planning, easier transport, and quicker on-site mounting. Application: Tight control rooms or crowded electrical closets where space is at a premium. This helps ensure fitment without compromising accessibility for maintenance. Feature: UL Listed and NEC 230.62 barrier compliance. Business Impact: Provides proven, regulator-aligned safety and reduces the risk of non-compliance penalties. Application: Facilities pursuing strict safety and electrical code adherence while maintaining production targets.
Get a Quick Quote for a Eaton DH362FDK2WR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH362FDK2WR?
Enquire Now
FAQs
Begin by confirming the enclosure is mounted in a protected location with proper clearance. Route #14-2 Cu/Al conductors to the three poles, ensuring correct phase alignment and tight terminal connections. Install the Class H fuse as specified and verify the ARKTITE receptacle interface if used. Finally, test continuity and insulation resistance, and confirm adherence to NEC 230.62 barrier requirements before returning the equipment to service.
Key specs include a 60 A amperage rating, three-pole design, 600 V voltage rating, NEMA 12/3R enclosure, Class H fuse provision, and fusible without neutral configuration. The unit accepts #14-2 AWG Cu/Al conductors and supports up to 20–50 hp (1/3PH at 480–600 V). UL Listed ensures compliance with electrical safety standards.
Yes. The DH362FDK2WR uses a NEMA 12, NEMA 3R enclosure and painted galvanized steel construction designed to withstand dust, moisture, and exposure typical of harsh environments. This makes it suitable for outdoor installations or challenging indoor areas such as manufacturing floors or washdown zones, helping extend service life and reduce maintenance frequency.
The DH362FDK2WR is UL Listed and NEC 230.62 barrier compliant. These certifications confirm adherence to recognized safety and installation standards, facilitating code-compliant integration into industrial power distribution systems and reducing the risk of compliance-related delays during audits.
The 60 A, three-pole design minimizes nuisance trips and enables precise protection, reducing wear on downstream equipment. Its rugged enclosure lowers replacement costs in harsh environments, while UL listing and barrier compliance simplify regulatory audits. Overall, the switch can shorten maintenance windows, boost uptime, and lower total cost of ownership in manufacturing settings.
