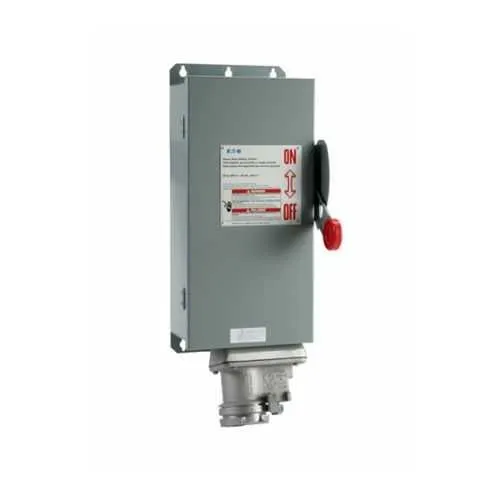

Eaton DH362FDK2WRW Heavy Duty Fusible Switch - UL Listed
Part Number: DH362FDK2WRW
Quick Summary
Eaton heavy duty fusible safety switch provides reliable isolation for industrial equipment in power distribution and service entrances. Maintenance teams often struggle with downtime caused by inadequate enclosure protection, corrosion, and mismatched wiring. UL Listed protection paired with NEMA 12/3R enclosures ensures safe, long-lasting operation in harsh environments. Designed for three-pole, 60A service, it accepts #14-2 Cu/Al wiring and supports up to 600 V systems, helping prevent nuisance trips and unplanned outages. Field-modifiable features, including the option for a rainproof NEMA 3R configuration when a drain hole is opened, simplify installation across facilities. For engineers and reliability teams, this switch delivers predictable performance and lower total cost of ownership.
Product Information
Extended Description
DH362FDK2WRW Eaton: Eaton Heavy duty receptacle safety switch, Crouse-Hinds®ARKTITE receptacle, upper window, 60 A, NEMA 12/3R, Painted galvanized steel, Class H, Three-pole, Three-wire, 600 V, Max Hp: 20, 25/ 30, 50 hp (1/3PH @480, 600 V), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH362FDK2WRW
UPC
782114792094
Product Length/Depth
30 in
Product Height
10 in
Product Width
13.75 in
Product Weight
30 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Suitable for service entrance use with a neutral or ground lug kit installed. Can be field modified to meetNEMA 3R rainproof requirements when a factory provided drain hole is opened.
Enclosure
NEMA 12, NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Wire size
#14-2 AWG Cu/Al
Amperage Rating
60A
HP rating - max
20, 25/ 30, 50 hp (1/3PH @480, 600 V)
NEMA rating
NEMA 12/3R
Voltage rating
600 V
Product Category
Heavy Duty, Fusible without neutral
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Eaton Specification Sheet - DH362FDK2WRW
Feature: 60A, 3-pole, 600V operation with fusible without neutral. Business Impact: Provides reliable circuit isolation for demanding industrial loads while enabling safe maintenance workflows. Application: Service entrances and utility-fed equipment where dependable protection is required. Feature: NEMA 12 and NEMA 3R enclosure with painted galvanized steel. Business Impact: Resists dust, moisture, and corrosion, reducing downtime and maintenance costs in harsh plants. Application: Indoor control rooms and outdoor facilities needing rainproof capability after field modification. Feature: Wire compatibility #14-2 Cu/Al and Class H fuse provision. Business Impact: Simplifies wiring harnessing and fuse protection, lowering installation time and error risk. Application: Standard electrical feeders and motor circuits in manufacturing lines. Feature: Three-pole, 60A design with 600 V rating. Business Impact: Safe, scalable protection for multi-line feeders and motor-driven loads; supports higher HP configurations. Application: Machine centers and processing lines requiring robust switching. Feature: Field-modifiable NEMA 3R rainproof option via drain hole. Business Impact: Extends service life in exposed environments without replacing the enclosure. Application: Outdoor switchgear and service entrances exposed to weather. Feature: UL Listed certification and solid warranty framework. Business Impact: Ensures regulatory compliance and predictable service costs; reduces risk of non-compliance penalties. Application: Compliance-driven facilities and maintenance programs seeking proven reliability.
Get a Quick Quote for a Eaton DH362FDK2WRW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH362FDK2WRW?
Enquire Now
FAQs
For service entrances, install the DH362FDK2WRW as a three-pole, 60A switch with 600 V rating, using #14-2 Cu/Al conductors. Ensure the enclosure is configured for NEMA 12 or NEMA 3R service as needed, and consider adding a neutral/ground lug kit if your system requires it. The device can be field modified for rainproof NEMA 3R operation by opening a drain hole at the factory provisions.
Key specs include 60A amperage rating, 600 V voltage rating, three-pole, three-wire configuration, fusible without neutral, and Class H fuse provision. The device supports HP ratings up to 20, 25/30, and 50 hp at 1/3PH when operated at 480–600 V, making it suitable for a range of industrial motors and feeders within a 60A protection scheme.
Yes, the enclosure type supports indoor-outdoor use with NEMA 12/3R ratings. For outdoor or rain-prone environments, it can be field modified to NEMA 3R rainproof requirements by opening a factory drain hole, providing a practical path to weather-ready protection without replacing the enclosure.
The DH362FDK2WRW is UL Listed, signaling compliance with essential electrical safety standards. Its design supports service entrance applications and corrosion-resistant enclosure construction, aligning with typical industry requirements for industrial protection and reliability.
The switch’s rugged galvanized steel enclosure, standard 30 in length, and field-upgrade options reduce downtime during installation and service. With a 1-year warranty (per Eaton policy) and a robust UL Listed protection profile, facilities see lower total cost of ownership through fewer unscheduled outages and streamlined maintenance.
