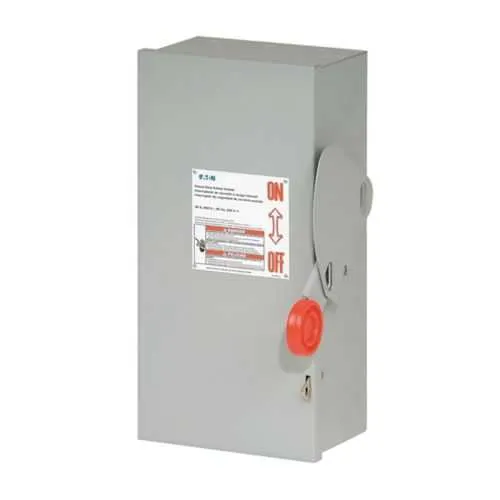

Eaton DH362FGK2 Heavy Duty Fusible Safety Switch UL Listed
Part Number: DH362FGK2
Quick Summary
The Eaton DH362FGK2 heavy duty fusible safety switch delivers reliable protection and control for industrial feeders. Many facilities struggle with safe isolation and nuisance trips in demanding electrical systems, especially when equipment lacks a compliant barrier or easy maintenance access. This unit is UL Listed and designed with NEC 230.62 compliant barrier and a NEMA 1 enclosure, providing safe service disconnects for indoor use. The rugged 60A, three-pole design supports reliable coordination for motor feeders and power panels, while compact dimensions simplify installation in crowded electrical rooms. By aligning with established standards, it enables faster procurement, standard spare parts, and lower total cost of ownership, delivering safer operation and improved uptime for manufacturing lines and processing equipment.
Product Information
Extended Description
DH362FGK2 Eaton: 60A/3P HD FUSIBLE SAFETY SWITCH 600V NEMA- 1
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH362FGK2
UPC
786685940960
Product Length/Depth
8 in
Product Height
16 in
Product Width
9 in
Product Weight
16 lb
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Enclosure
NEMA 1
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Type
HD FUSIBLE SAFETY SWITCH
Amperage Rating
60A
NEMA rating
NEMA 1
Voltage - max
600 V
Voltage rating
600 V
Feature: 60A rating with three-pole fusible configuration and 600V max support robust protection for three-phase motors and feeders. Business Impact: Enables selective coordination and rapid fault isolation, reducing downtime and arc-flash exposure. Application: Motor control centers, feeders, conveyors, and industrial equipment requiring reliable three-phase protection. Feature: NEMA 1 enclosure provides indoor protection against dust and light environmental contaminants. Business Impact: Minimizes enclosure ingress risk, extending switch life and reducing maintenance cycles. Application: Indoor electrical rooms, panels, and switchgear housings in manufacturing environments. Feature: NEC 230.62 compliant barrier aligns with code requirements for safe service disconnects. Business Impact: Improves regulatory compliance, simplifies inspection processes, and lowers project rework costs. Application: Facilities adhering to NEC safeguarding standards for service equipment. Feature: UL Listed certification confirms compliance with recognized safety standards. Business Impact: Streamlines procurement and vendor qualification, easing audit trails and supplier management. Application: Regulated industries, contractors, and OEMs seeking proven safety credentials. Feature: Fusible without neutral configuration supports clean, simplified disconnects in three-phase systems. Business Impact: Reduces wiring complexity and inventory needs while preserving protective coordination. Application: Industrial power panels and motor feeders where neutral is not required. Feature: Compact footprint with 8 in depth, 9 in width, and 16 in height weighing 16 lb. Business Impact: Easier installation in crowded electrical rooms and cabinets, enabling flexible mounting. Application: Retrofitting into existing panels and new panel installations in space-constrained environments.
Get a Quick Quote for a Eaton DH362FGK2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH362FGK2?
Enquire Now
FAQs
The DH362FGK2 is designed for indoor installations with a NEMA 1 enclosure. Mount the unit in a standard, accessible panel or cabinet space, ensuring ample clearance for wiring and ventilation. Use appropriate three-phase feeder connections, observe the 60A rating, and follow lockout/tagout procedures during installation to maintain safe operation and code compliance.
Verify 60A amperage rating, 600V maximum voltage, and three-pole configuration with fusible protection without neutral. Confirm UL Listed status and NEC 230.62 compliant barrier. Ensure the application is indoor, within a NEMA 1 enclosure, and that the switch is compatible with your control circuitry and protection coordination requirements.
Yes. The three-pole design and 60A/600V rating make it suitable for motor feeders and conveyors in manufacturing environments. Its fusible configuration supports proper coordination with upstream protection, while the UL Listing and NEC barrier compliance help meet regulatory and safety standards for continuous operation in production lines.
Cite UL Listed certification for safety compliance and NEC 230.62 compliant barrier for service disconnect safety. The NEMA 1 indoor enclosure further supports compliance with indoor protection requirements. These credentials simplify procurement audits and reduce potential non-conformance during safety reviews.
The unit’s robust build and UL/NEC-compliant design reduce downtime by ensuring reliable protection and easier fault isolation. With a compact footprint and standard wiring practices, maintenance tasks are quicker, which lowers labor costs. Improved uptime in motors and conveyors translates to higher production efficiency and a favorable return on investment.
