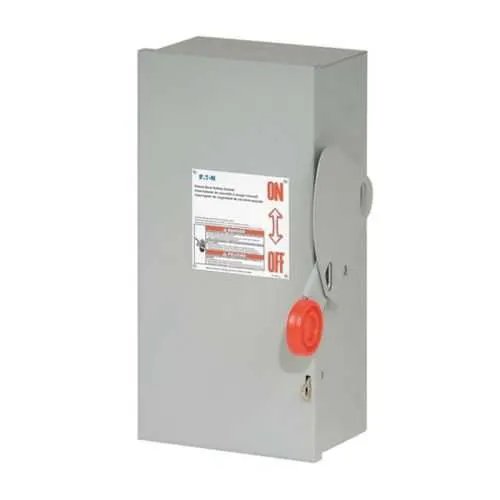

Eaton DH362FRK Safety Switch - UL Listed
Part Number: DH362FRK
Quick Summary
The Eaton DH362FRK is a heavy-duty fusible safety switch used to protect electrical feeds in service entrances and industrial panels. Facilities often deal with nuisance trips, difficult maintenance, and inadequate protection in rugged environments. UL Listed protection plus a NEMA 3R enclosure and Neutral Kit compatibility ensure reliable compliance and rugged service. Designed for 60 A loads at up to 600 V, it supports efficient installation and reduces downtime in industrial facilities. This makes it a solid choice for OEMs and maintenance teams seeking durable protection, easy field wiring, and predictable performance. With UL-listed reliability and a service-entrance-ready design, it aligns with common spec sheets and procurement workflows.
Product Information
Extended Description
DH362FRK Eaton: Eaton Enhanced visible blade single-throw safety switch, 60 A, NEMA 3R, Painted galvanized steel, Class H, Fusible without neutral, Three-pole, Three-wire, 600 V, Max Hp: 20, 25/ 30, 50 hp (1/3PH @480, 600 V), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH362FRK
UPC
782113205991
Product Length/Depth
16.5 in
Product Height
8.5 in
Product Width
9.5 in
Product Weight
12 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Suitable for service entrance use with a Neutral Kit installed
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Amperage Rating
60A
HP rating - max
20, 25/ 30, 50 hp (1/3PH @480, 600 V)
NEMA rating
NEMA 3R
Voltage rating
600 V
Product Category
Heavy Duty, Fusible without neutral
Feature 60 A amperage rating with 3-pole, three-wire configuration → Business Impact Enables safe, code-compliant feeder protection for motor and load circuits while supporting compact, standardized panel designs → Application Service entrances and industrial control panels. Feature NEMA 3R painted galvanized steel enclosure → Business Impact Provides weather- and corrosion-resistance in indoor/outdoor installations, reducing enclosure maintenance costs → Application Outdoor equipment rooms and process areas. Feature Fusible configuration without neutral using Class H fuses → Business Impact Delivers targeted short-circuit protection with predictable fault clearing and arc-flash control, lowering downtime and maintenance expenses → Application Heavy-duty motor starts and branch circuits. Feature 600 V voltage rating and HP capability up to 50 hp (1/3PH @480, 600 V) → Business Impact Supports a wide range of industrial equipment, enabling one switch to protect multiple motor loads and drives → Application Heavy machinery and conveyors. Feature Neutral Kit compatibility for service entrances (catalog notes) → Business Impact Simplifies integration into service entrances while preserving disconnect reliability and compliance → Application OEM installs and retrofit projects. Feature UL Listed certification for electrical safety and compliance → Business Impact Facilitates procurement approvals and assures ongoing regulatory alignment → Application Compliance and quality assurance in panel builds.
Get a Quick Quote for a Eaton DH362FRK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH362FRK?
Enquire Now
FAQs
The DH362FRK is a three-pole, three-wire fusible switch designed for service entrances and industrial panels. It uses a fusible configuration without neutral, requires a Neutral Kit for service entrances, and fits a NEMA 3R enclosure. Typical wiring includes #14-#2 Cu/Al conductors, with a 16.5 in depth, 9.5 in width, and 8.5 in height to suit standard enclosures.
Yes. The DH362FRK is suitable for service entrances when a Neutral Kit is installed, as noted in catalog guidance. This enables proper neutral handling for service disconnects while maintaining UL Listed safety and reliable protection in mixed-load environments.
The DH362FRK provides a 60 A amperage rating with a 600 V maximum voltage. The horsepower ratings cover 20, 25/30, and 50 hp for 1/3-phase operation at 480–600 V, making it versatile for a range of motor and feeder protections while maintaining rugged, field-proven performance.
The unit is UL Listed, guaranteeing electrical safety compliance. It features a NEMA 3R enclosure, suitable for both indoor and outdoor environments, and is designed for heavy-duty fusible protection without neutral. These certifications and ratings support reliability across industrial building floors and service entrances.
Eaton's policy offers a one-year warranty from installation or eighteen months from shipment, whichever occurs first. Routine maintenance focuses on verifying enclosure integrity, fuse status, and terminal connections, ensuring continued protection and minimizing unplanned downtime in demanding industrial settings.
