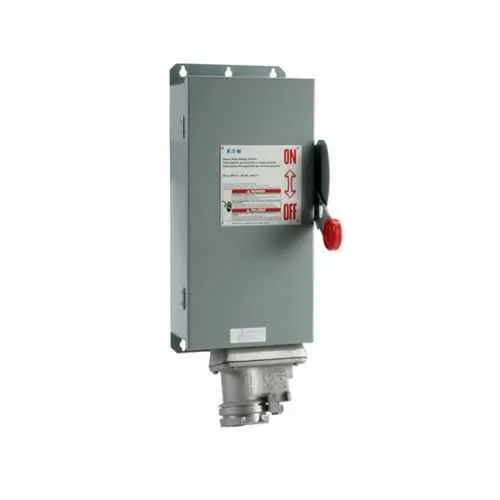

Eaton DH362FW5WRK Heavy Duty Fusible Safety Switch - UL
Part Number: DH362FW5WRK
Quick Summary
The Eaton heavy duty fusible safety switch protects electrical circuits in harsh industrial environments for motor control and power distribution. Many facilities struggle with corrosion, downtime, and maintenance hassles in outdoor or washdown areas. UL Listed certification, NEMA 4X enclosure in 304 stainless steel, and Class H fuse provisions ensure rugged protection and service life. Designed for 60 A systems at up to 600 V, it integrates seamlessly with industrial protection and control panels. This reliable switch helps reduce downtime, improve safety, and simplify procurement for engineers and maintenance teams.
Product Information
Extended Description
DH362FW5WRK Eaton: Eaton Heavy duty receptacle safety switch, Corrosion resistant, Appleton POWERTITE® receptacle, 60 A, NEMA 4X, 304 stainless steel, Class H, Three-pole, Three-wire, 600 V, Max Hp: 20, 25/ 30, 50 hp (1/3PH @480, 600 V), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH362FW5WRK
UPC
782114193655
Product Length/Depth
9.17 in
Product Height
23.6 in
Product Width
7.73 in
Product Weight
31 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Power plugs not supplied with the receptacle
Enclosure
NEMA 4X
Enclosure material
304 stainless steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Amperage Rating
60A
HP rating - max
20, 25/ 30, 50 hp (1/3PH @480, 600 V)
NEMA rating
NEMA 4X (Stainless)
Voltage rating
600 V
Product Category
Heavy Duty, Harsh Environment - EnviroLine
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Eaton Specification Sheet - DH362FW5WRK
Selling Policy 25-000 - Distribution and Control Products and Services
Enclosure and material: The 304 stainless steel NEMA 4X enclosure delivers corrosion resistance in outdoor, washdown, and harsh indoor environments, reducing maintenance frequency and replacement costs. This means longer service intervals for food processing, water treatment, and chemical processing facilities, where exposure to moisture and chemicals is common and downtime is costly. Feature → Business Impact → Application. Three-pole fusible switch with Class H fuse: The 60 A rating paired with Class H fuses provides precise overload protection, safeguarding motors up to 50 hp at 1/3PH @480-600 V and preventing nuisance trips. Application: reliable motor protection in packaging lines, conveyors, and utility feeders. Receptacle and wiring: Appleton POWERTITE receptacle (not supplied) and fusible without neutral configuration simplify field wiring and compatibility with existing panels, reducing installation time and errors. Catalog note: Power plugs are not supplied with the receptacle, so plan for compatible accessories during procurement. UL Listed and compliance: UL Listed certification supports safety compliance for industrial control circuits, with a 600 V rating suitable for high-power environments and a robust 31 lb enclosure that is straightforward to mount. Installation and footprint: With dimensions of 9.17 in depth, 23.6 in height, and 7.73 in width, engineers can fit this switch into compact control cabinets, minimizing changes to surrounding hardware and streamlining retrofits.
Get a Quick Quote for a Eaton DH362FW5WRK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH362FW5WRK?
Enquire Now
FAQs
For three-phase applications, mount the unit using its three-pole, three-wire design and connect to a compatible circuit with a 60 A, 600 V rating. Ensure the enclosure is oriented to prevent water ingress, comply with NEMA 4X requirements, and observe the fusible without neutral configuration. Note that power plugs are not supplied with the receptacle.
Key performance specs include a 60 A amperage rating, three-pole three-wire configuration, and HP protection up to 50 hp (1/3PH at 480/600 V). The Class H fuse provisions provide reliable overload protection, while the 600 V maximum voltage rating supports high-power motor control. This combination minimizes nuisance trips and extends motor life in demanding lines.
Yes. It comes in a NEMA 4X enclosure constructed from 304 stainless steel, delivering corrosion resistance suitable for outdoor, washdown, and harsh indoor environments. This enclosure combination reduces maintenance needs, protects circuitry from moisture and contaminants, and helps meet harsh-environment requirements in food processing, water treatment, and chemical processing facilities.
The DH362FW5WRK is UL Listed, confirming compliance with recognized safety standards for electrical protection devices. It is designed for 600 V systems and features a NEMA 4X stainless enclosure, aligning with regulatory expectations for harsh-environment installations. This support simplifies safety documentation and procurement for engineering teams.
Warranty runs per Eaton policy: one year from installation or eighteen months from shipment, whichever occurs first, reducing total cost of ownership. Routine maintenance is typically limited to enclosure cleanliness, fuse replacements, and wiring inspections. The robust stainless enclosure and UL-listed design help extend service intervals and minimize downtime in mission-critical applications.
