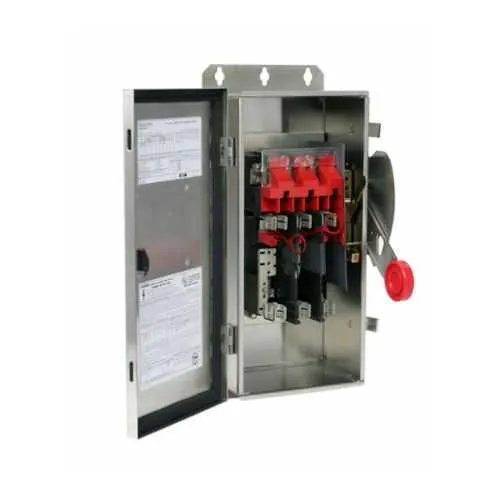

Eaton DH362FWK-GCL Heavy duty fusible safety switch - UL Listed
Part Number: DH362FWK-GCL
Quick Summary
Eaton heavy duty fusible safety switch protects motors and feeders in industrial control panels. Maintaining uptime in challenging environments can be tough, with corrosion, washdown, and field wiring complicating reliability. It carries UL Listed certification and NEC-compliant barriers, and uses a rugged NEMA 4X stainless enclosure for longevity in harsh conditions. Designed for 60 A circuits at up to 600 V with HP ratings from 20 to 50, it supports service entrances and straightforward installation in new build or retrofit projects.
Product Information
Extended Description
DH362FWK-GCL Eaton: Eaton Heavy duty single-throw fused safety switch, Corrosion resistant, Mill-duty, 60 A, NEMA 4X, 304 stainless steel, Class H, Three-pole, Three-wire, 600 V, Max Hp: 20, 25/ 30, 50 hp (1/3PH @480, 600 V), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH362FWK-GCL
UPC
782114889732
Product Length/Depth
20 in
Product Height
8.5 in
Product Width
9.5 in
Product Weight
20 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Suitable for service entrance use. Can be field modified to meet NEMA 3R rainproof requirements when a factory provided drain hole is opened.
Enclosure
NEMA 4X
Enclosure material
304 stainless steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Amperage Rating
60A
HP rating - max
20, 25/ 30, 50 hp (1/3PH @480, 600 V)
NEMA rating
NEMA 4X (Stainless)
Voltage rating
600 V
Product Category
Heavy Duty, Mill-duty
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Eaton Specification Sheet - DH362FWK-GCL
Feature: Corrosion-resistant 304 stainless steel enclosure with NEMA 4X rating. Benefit: Delivers superior protection against moisture, chemicals, and harsh washdowns, reducing corrosion-related downtime. Application: Outdoor installations and washdown areas in manufacturing facilities benefit from longer service life and lower maintenance costs. Feature: Three-pole, 60 A rating with Class H fuse and fusible without neutral configuration. Benefit: Precise coordination and reliable overcurrent protection for motor circuits, minimizing nuisance trips and safeguarding equipment. Application: Motor starters and feeders in mill environments requiring robust protection at up to 600 V. Feature: Service entrance compatibility with field-modifiable NEMA 3R rainproof option. Benefit: Flexible installation across indoor and limited outdoor locations without full enclosure replacement, lowering project risk and cost. Application: Retrofit projects and new installations requiring adaptable protection enclosures. Feature: Compact dimensions (20 in L × 9.5 in W × 8.5 in H) and 20 lb weight. Benefit: Easy installation, shipping, and space planning within control cabinets or MCC rooms. Application: Retrofit or new builds where footprint and weight constraints are critical. Feature: UL Listed with NEC barrier compliance and 1-year Eaton warranty. Benefit: Regulatory assurance and vendor-supported reliability, reducing risk in audits and maintenance planning. Application: Industrial facilities needing compliant protection devices with clear warranty coverage to justify ROI.
Get a Quick Quote for a Eaton DH362FWK-GCL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH362FWK-GCL?
Enquire Now
FAQs
DH362FWK-GCL is a three-pole, 60 A fusible switch suitable for integration with standard motor control panels and service entrances. It supports three-wire connections and a Class H fuse, with field-modifiable options for NEMA 3R rainproofing. Ensure proper clearance for the 20 inch length and provide adequate enclosure mounting, cable routing, and protective grounding per NEC requirements.
The unit is rated for 60 A with a maximum HP of 20, 25/30, 50 hp for 1/3-phase operation at 480–600 V. It uses a 600 V voltage rating and maintains protection for motor circuits and feeders up to those HP ratings. The fuse class is Class H, and the configuration is fusible without neutral, enabling reliable overcurrent protection for three-wire systems.
Yes. The enclosure is NEMA 4X and constructed from 304 stainless steel, providing corrosion resistance for outdoor or washdown environments. There is also a factory option to modify the unit for NEMA 3R rainproof service entrances if a drain hole is opened, expanding installation flexibility without full enclosure replacement.
The DH362FWK-GCL is UL Listed and designed to meet NEC 230.62 (C) compliant barrier requirements. Its NEMA 4X stainless enclosure supports corrosion protection, and the unit is suitable for service entrance use, aligning with common industrial compliance expectations and reducing audit concerns.
Regular maintenance is simplified by the durable stainless enclosure and field-proven Class H fuses, reducing unscheduled outages. The 60 A protection and HP range support common industrial loads, delivering predictable uptime, lower replacement costs, and a favorable return on investment for facilities seeking robust, compliant protection with long service life.
