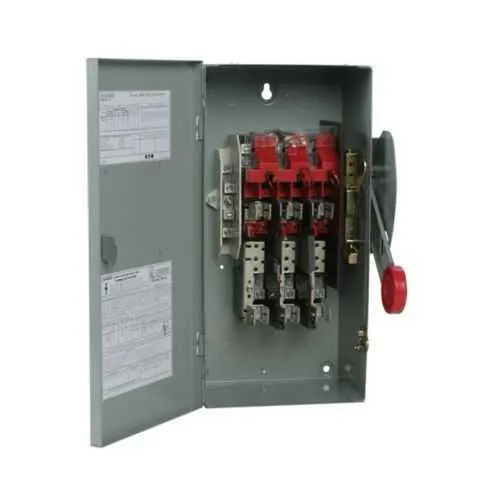

Eaton DH362NGK Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH362NGK
Quick Summary
Eaton DH362NGK heavy duty fusible safety switch provides reliable power isolation for industrial control panels and motor circuits. In practice, downtime and safety compliance can bottleneck production, especially in environments with dense wiring and frequent maintenance. UL Listed and NEC 230.62 barrier compliance anchor the device’s safety and reliability, while the NEMA 1 enclosure protects against indoor dust and incidental contact. This model supports 60 A at 600 V, with three poles and neutral, making it suitable for 480–600 V systems and up to 50 hp. With a compact footprint and straightforward installation, it integrates smoothly into existing switchgear and control panel layouts, helping reduce installation time and total cost of ownership for OEMs and integrators.
Product Information
Extended Description
DH362NGK Eaton: Eaton Heavy duty single-throw fused safety switch, 60 A, NEMA 1, Painted steel, Class H, Fusible with neutral, Three-pole, Four-wire, 600 V, Max Hp: 20, 25/ 30, 50 hp (1/3PH @480, 600 V), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH362NGK
UPC
782113206035
Product Length/Depth
5.25 in
Product Height
15.81 in
Product Width
7.75 in
Product Weight
20 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse class provision
Class H
Fuse configuration
Fusible with neutral
Number Of Poles
Three-pole
Number of wires
4
Type
Heavy duty fusible safety switch
Amperage Rating
60A
HP rating - max
20, 25/ 30, 50 hp (1/3PH @480, 600 V)
NEMA rating
NEMA 1
Voltage rating
600 V
Product Category
Heavy Duty, Fusible with neutral
Feature: Three-pole, four-wire configuration with a neutral enables complete phase protection for multi-phase equipment. Business Impact: Simplifies wiring layouts in control panels and reduces miswiring risks during maintenance. Application: Ideal for indoor motor control centers, conveyors, and pump stations operating at 480–600 V. Feature: NEMA 1 enclosure with painted steel provides indoor dust ingress protection and durable housing. Business Impact: Improves long-term reliability and reduces maintenance interruptions in typical factory environments. Application: Suitable for machine rooms and panel enclosures in moderate dust conditions. Feature: Class H fuse provision and fusible with neutral deliver high fault protection and expandable coordination with downstream devices. Business Impact: Enhances system safety, minimizes arc flash exposure, and supports selective protection. Application: Protects motors and feeders up to 60 A at 600 V in industrial lines. Feature: 600 V rating, 60 A amperage, and compact footprint (5.25 in depth, 15.81 in height, 7.75 in width). Business Impact: Eases integration into standard switchgear footprints and reduces installation time and空间 requirements. Application: Fits standard control panels and space-constrained installations in manufacturing cells. Feature: UL Listed and NEC 230.62 barrier compliance. Business Impact: Accelerates compliance verification and reduces qualification costs for panel builds. Application: Ideal for regulated facilities requiring documented safety certifications. Feature: HP rating up to 50 hp (1/3PH @480, 600 V). Business Impact: Supports larger motor loads while maintaining robust protection. Application: Suitable for conveyors, pumps, and drive assemblies in medium-voltage environments.
Get a Quick Quote for a Eaton DH362NGK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH362NGK?
Enquire Now
FAQs
The DH362NGK is a three-pole, four-wire fusible safety switch with neutral housed in a NEMA 1 painted steel enclosure. It accepts Class H fuses and is rated for 60 A at 600 V, suitable for 1/3 HP to 50 HP on 480/600 V systems. It supports indoor panel installations and standard motor control wiring.
Key specs include a 60 A amperage rating, 600 V maximum voltage, three-pole, four-wire configuration, fusible with neutral, NEMA 1 enclosure, Class H fuse provision, and UL Listing. HP rating ranges from 20 to 50 HP at 480–600 V, with a compact footprint suitable for panel layouts.
Yes. The DH362NGK is UL Listed and NEC 230.62 barrier compliant, providing documented safety certifications for panel builds. It uses a NEMA 1 indoor enclosure and a Class H fuse, aligning with common electrical protection and installation standards in manufacturing facilities.
Warranty terms follow Eaton Selling Policy 25-000, offering one year from installation or eighteen months from shipment, whichever occurs first. Eaton also provides product datasheets and technical catalogs to support installation and maintenance planning, ensuring you have up-to-date references for maintenance and parts replacement.
Choose based on amperage, voltage, and motor HP requirements. For DH362NGK, 60 A and 600 V coverage supports motors up to 50 HP (1/3PH @480/600 V). Ensure a three-pole, four-wire configuration with neutral and a NEMA 1 indoor enclosure to match panel footprint and NEC compliance for your specific application.
