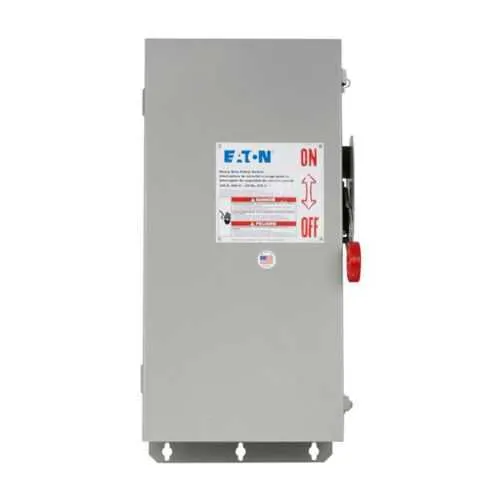

Eaton DH363FDK2YEL Heavy Duty Fusible Safety Switch - UL 98
Part Number: DH363FDK2YEL
Quick Summary
Eaton heavy duty fusible safety switch performs reliable power isolation for industrial control panels and MCCs. A common challenge is meeting strict NEC barriers and enclosure requirements while keeping installation times and total cost in check. UL 98 listing, NEC 230.62 barrier compliance, and a rugged NEMA 12 enclosure deliver proven protection in harsh electrical rooms and factory floors. This 3‑pole, 600 V, 100 A switch with fusible configuration (without neutral) simplifies compliance with safety standards while reducing downtime for fuse replacements. By integrating this solution, manufacturers and integrators gain predictable performance, easier maintenance, and a robust platform for motor control and power distribution in demanding industrial environments.
Product Information
Extended Description
DH363FDK2YEL Eaton: HD, 3P, 600V, 100A, Fusible, NEMA 12/3R Safety SWITCH, Painted Yellow
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH363FDK2YEL
UPC
786679189474
Product Length/Depth
9 in
Product Height
25.5 in
Product Width
13.25 in
Product Weight
29.5 lb
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL 98
Enclosure
NEMA 12
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Type
Single-Throw
Amperage Rating
100A
NEMA rating
NEMA 12/3R
Voltage rating
600 V
Feature: Three-pole fusible switch with 600 V operation and 100 A rating. Business Impact: Provides complete circuit isolation and protective coordination, reducing arc-flash risk and ensuring reliable power distribution. Application: Ideal for motor control centers, heavy machinery disconnects, and process lines where robust protection and quick fault isolation are essential. Feature: NEMA 12 enclosure with durable yellow finish. Business Impact: Ingress protection against dust and particulate contamination, improving uptime in harsh indoor environments. Application: Electrical rooms, manufacturing floors, and assembly lines requiring durable, low-maintenance enclosures. Feature: Fusible without neutral configuration. Business Impact: Simpler fuse strategy and replacement workflow, lowering maintenance time and spare parts inventory. Application: Feeders and branch circuits where neutral is not required for switching. Feature: UL 98 certification and NEC 230.62 barrier compliance. Business Impact: Demonstrated safety listing and regulatory alignment reduce project risk and accelerate approvals. Application: Facilities pursuing formal compliance documentation for industrial power-distribution equipment. Feature: Three-pole, single-throw design. Business Impact: Clear on/off control with straightforward integration into existing switchgear, enabling rapid commissioning. Application: New installations or retrofits in panels, motor starters, and machine disconnects.
Get a Quick Quote for a Eaton DH363FDK2YEL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH363FDK2YEL?
Enquire Now
FAQs
Retrofitting this switch into existing panels requires matching the 3-pole, single-throw configuration with a compatible NEMA 12 enclosure. Ensure the panel space accommodates the 13.25 in width, 25.5 in height, and 9 in depth, and verify the system runs at 600 V with a 100 A rating. Also confirm NEC 230.62 barrier integration for compliant safety separation.
Performance is defined by a three-pole, 100 A, 600 V fusible design suitable for motor control centers and machine disconnects. The NEMA 12 enclosure provides dust protection, while the fusible configuration helps protect circuits from overloads. UL 98 listing adds safety assurance, ensuring reliable isolation during motor startups and routine maintenance.
Yes. The DH363FDK2YEL is UL 98 listed and designed to meet NEC 230.62 barrier requirements. These certifications support safe installation in industrial facilities, enhance regulatory compliance, and simplify safety inspections. It also employs a NEMA 12 enclosure suitable for typical indoor industrial environments.
Absolutely. The NEMA 12 enclosure offers protection against dust and non-watery ingress common in factory settings. While not rated for direct water exposure, it is well-suited for electrical rooms, controlled machine bays, and indoor production areas where dust and particulate matter are present, helping maintain switch integrity and reliability.
Maintenance centers on inspecting fuse status and preparing for fuse replacement without neutral, as specified by the fusible configuration. Stock compatible 100 A fuses and follow lockout/tagout procedures during replacement. The UL 98 listing and robust NEMA 12 enclosure support safe, compliant maintenance with predictable downtime and minimal risk to personnel.
