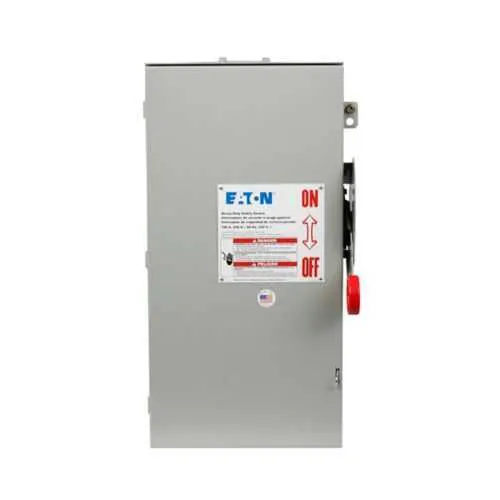

Eaton DH363FRK-CSA Heavy Duty Fusible - UL Listed
Part Number: DH363FRK-CSA
Quick Summary
The Eaton DH363FRK-CSA heavy duty fusible safety switch provides reliable power control for industrial equipment protection. This unit helps address downtime and miswiring by delivering a rugged, service-entrance-ready design that cables neatly into panels or feeders. It is UL Listed and CSA Certified, with NEC 230.62 barrier compliance and a NEMA 3R enclosure that accommodates indoor or outdoor environments. For engineers and procurement teams, this switch offers straightforward installation, robust protection, and proven compatibility with service entrance configurations, while enabling safe, compliant motor and circuit protection across diverse industrial applications.
Product Information
Extended Description
DH363FRK-CSA Eaton: Eaton Heavy duty single-throw fused safety switch, 100 A, NEMA 3R, Painted galvanized steel, Class H, Fusible without neutral, Three-pole, Three-wire, 600 V, Max Hp: 30, 40/ 60, 75 hp (1/3PH @480, 600 V), #14-#1/0 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH363FRK-CSA
UPC
786685226774
Product Length/Depth
22.5 in
Product Height
9 in
Product Width
12.75 in
Product Weight
21 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed CSA Certified
Catalog Notes
Suitable for service entrance use with a Neutral Kit installed
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Amperage Rating
100A
HP rating - max
30, 40/ 60, 75 hp (1/3PH @480, 600 V)
NEMA rating
NEMA 3R
Voltage rating
600 V
Product Category
Heavy Duty, Fusible without neutral
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Eaton Specification Sheet - DH363FRK-CSA
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: 100 A amperage rating with three poles and three wires, rated up to 600 V. Business impact: provides robust fault isolation and motor protection for demanding loads, reducing unplanned downtime and extending equipment life. Application: ideal for motor feeders, circuit protection, and control circuits in manufacturing lines and processing equipment. Feature: NEMA 3R enclosure with painted galvanized steel. Business impact: weather-resistant and durable enclosure that lowers maintenance costs and improves uptime in indoor/outdoor locations. Application: outdoor switchgear, service entrances, or areas with exposure to dust, rain, and humidity. Feature: Class H fuse provision with fusible without neutral configuration. Business impact: simplifies wiring schemes and lowers installation time and material costs while delivering reliable protection. Application: heavy-duty control panels and power-distribution cabinets. Feature: 600 V rating with HP capacity up to 75 hp (1/3 PH @ 480/600 V). Business impact: supports a wide range of motor loads, enabling flexible design and reduced part variety. Application: drive systems, conveyors, and mixers. Feature: Certifications UL Listed and CSA Certified with NEC barrier compliance. Business impact: ensures regulatory compliance, safer procurement, and easier supplier qualification. Application: industrial facilities requiring robust certification footprints. Feature: Neutral-kit compatible for service entrance use. Business impact: enables seamless integration into service entrances without rework. Application: facility electrical upgrades and new installations. Weight and dimensions provide practical handling and fit checks: 21 lb, 22.5 in length, 12.75 in width, and 9 in height. Business impact: compact footprint aids installation in crowded panels and enclosures. Application: panel builders and field technicians seeking a balance of protection and space efficiency.
Get a Quick Quote for a Eaton DH363FRK-CSA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH363FRK-CSA?
Enquire Now
FAQs
When deploying the DH363FRK-CSA in service entrances, verify the Neutral Kit compatibility for service-entry use and ensure NEC 230.62 barrier compliance. Plan for three-pole, three-wire wiring with Class H fuses and a 600 V maximum rating. Allow adequate space for the 22.5 inch depth and 12.75 inch width, and confirm mounting on a suitable surface or panel; ensure proper grounding and enclosure fit for outdoor or indoor installation.
The 100 A rating with three poles supports reliable overload protection for motors and feeders up to 75 hp at 480/600 V. This allows designers to reduce starter and protection component counts while maintaining safe startup and shutdown sequences. In practice, you’ll size upstream fusing and conductors to the 100 A rating, align with NEC requirements, and optimize protection coordination across the drive system.
Yes. The DH363FRK-CSA uses a NEMA 3R enclosure, constructed from painted galvanized steel, which offers weather resistance for outdoor and semi-exposed indoor locations. This design helps resist rain, dust, and corrosion exposure while maintaining protective isolation for safe operation. For extreme environments, confirm additional accessories and installation clearances per Eaton guidelines.
This switch is UL Listed and CSA Certified, with NEC 230.62 barrier compliance. These certifications matter because they validate electrical safety, reliability, and code conformity, reducing procurement risk and simplifying regulatory audits. The combination supports safer installation in service entrances, panels, and motor feeders across industrial facilities while aligning with common safety purchasing criteria.
Maintenance needs are minimal but important: periodic inspection of fuse integrity, enclosure seals, and terminal connections helps sustain performance. ROI comes from reduced downtime due to robust protection, lower miswiring risk, and simplified service entrance configurations. The 21 lb, compact 22.5x12.75x9 in footprint also lowers installation time and reduces space-related costs in control panels.
