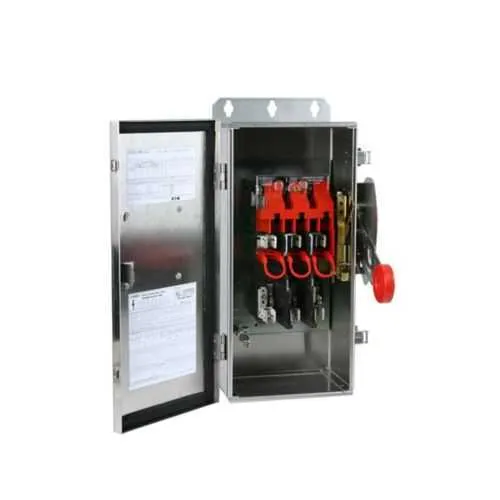

Eaton DH363FWKX Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH363FWKX
Quick Summary
Eaton heavy duty fusible safety switch is a rugged power-control solution designed for industrial environments. It provides safe, reliable switching for motors and feeders in harsh facilities, reducing downtime and risk. UL Listed, NEMA 4X stainless EnviroLine enclosure, and NEC 230.62 barrier compliance ensure installation in challenging sites. By combining corrosion resistance with a 100 A rating and three-pole configuration, it delivers dependable protection for critical equipment while enabling straightforward service entrances with lug-kit options. This device supports up to 30, 40/60, or 75 hp at 480/600 V, delivering value through longer life, easier maintenance, and safer operations.
Product Information
Extended Description
DH363FWKX Eaton: Eaton Heavy duty single-throw fused safety switch, Corrosion resistant, 100 A, NEMA 4X, EnviroLine stainless, Class H, Three-pole, Three-wire, 600 V, Max Hp: 30, 40/ 60, 75 hp (1/3PH @480, 600 V), #14-#1/0 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH363FWKX
UPC
782114224205
Product Length/Depth
10.22 in
Product Height
24.95 in
Product Width
10.76 in
Product Weight
29 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Suitable for service entrance use with a neutral or ground lug kit installed
Enclosure
NEMA 4X
Enclosure material
EnviroLine stainless
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Amperage Rating
100A
HP rating - max
30, 40/ 60, 75 hp (1/3PH @480, 600 V)
NEMA rating
NEMA 4X (Stainless)
Voltage rating
600 V
Product Category
Heavy Duty, Harsh Environment - EnviroLine
EnviroLine stainless enclosure with NEMA 4X protection translates to superior corrosion resistance, significantly reducing maintenance cycles and replacement costs in harsh sites. This means longer intervals between service and lower total cost of ownership. In practice, install in outdoor substations or washdown areas where enclosure integrity is critical. UL Listed and NEC 230.62 barrier compliance ensure regulatory alignment and project acceptance, speeding approvals and installer confidence in electrical rooms and safety enclosures. Amperage rating of 100 A with a three-pole, 600 V configuration provides clean, predictable interruption for motor feeders and service panels, enabling safe power distribution across manufacturing lines and process areas. Fuse class provision Class H and fusible without neutral simplify field wiring, improve selectivity, and reduce downtime during maintenance. HP rating up to 75 hp at 480/600 V broadens compatibility with a range of medium to high-power motors, while the compact 10.22 in depth and 24.95 in height support practical installations in limited spaces. The enclosure’s rugged design adds resilience for harsh environments, and lug-kit compatibility with service entrances enhances installation flexibility and long-term uptime.
Get a Quick Quote for a Eaton DH363FWKX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH363FWKX?
Enquire Now
FAQs
The DH363FWKX is suitable for service entrance applications with an optional neutral or ground lug kit installed. This compatibility supports compliant service entries per NEC requirements, enables straightforward a.c. distribution, and simplifies grounding schemes. When selecting lug kits, verify compatibility with the three-pole, 100 A frame and Class H fusible configuration to ensure proper protection and regulatory compliance.
The device is rated for 100 A at 600 V and is configured as a three-pole, fusible switch. It supports up to 30, 40/60, and 75 hp for 1/3 phase operation at 480/600 V. Wiring accepts #14-#1/0 Cu/Al, enabling flexible motor and feeder connections while maintaining safe, coordinated fault protection.
Yes. It features an EnviroLine stainless enclosure with a NEMA 4X rating, designed to resist corrosion and water ingress in harsh environments. This makes it well-suited for outdoor substations, chemical plants, and washdown areas, reducing maintenance frequency and extending service life in challenging facilities.
The DH363FWKX carries UL Listed certification and NEC 230.62 barrier compliance, supporting safe installation and regulatory acceptance. Its NEMA 4X enclosure and EnviroLine material further reinforce suitability for harsh environments and industry-standard protection requirements in electrical installations.
The corrosion-resistant EnviroLine stainless enclosure and rugged construction reduce maintenance downtime and component replacements in harsh settings. With UL Listing, NEC compliance, and a straightforward lug-kit installation for service entrances, facilities can realize lower lifecycle costs, longer intervals between service, and safer, more reliable power switching across critical production lines.
