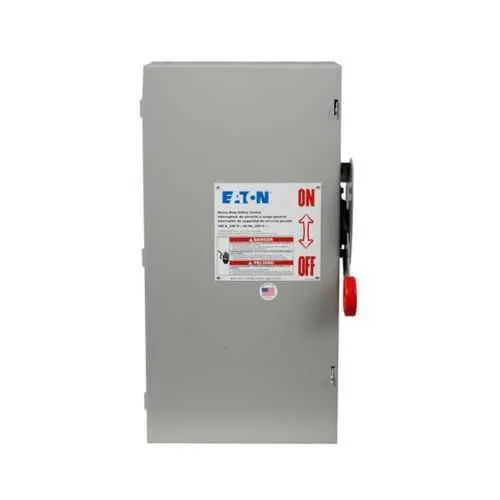

Eaton DH363NGKG Heavy-Duty Fusible Switch - UL Listed
Part Number: DH363NGKG
Quick Summary
Eaton DH363NGKG heavy-duty fusible switch protects electrical feeders in industrial control panels. When downtime or nuisance trips cost time and money, you need dependable isolation with straightforward maintenance. This unit carries UL Listed certification and NEC 230.62 barrier compliance, and it uses a rugged NEMA 1 enclosure to withstand indoor industrial environments. Designed for 100A, 3P circuits at up to 600V, it integrates smoothly with standard bus and control systems, supporting fast procurement and predictable performance.
Product Information
Extended Description
DH363NGKG Eaton: 100A/3P HD FUSIBLE SAFETY SWITCH 240V NEMA 4X STAinLESs
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH363NGKG
UPC
786685940861
Product Length/Depth
8.5 in
Product Height
22.5 in
Product Width
12.5 in
Product Weight
23 lb
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Enclosure
NEMA 1
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Type
Single-Throw
Amperage Rating
100A
NEMA rating
NEMA 1
Voltage rating
600 V
Feature → Business Impact → Application: 100A amperage rating in a three-pole, single-throw fusible switch provides reliable fault isolation and protects sensitive motor and feeder circuits, reducing unplanned downtime in manufacturing lines. This rigorously rated device translates to measurable reliability gains for control cabinets and distribution panels, enabling predictable startup and safer maintenance maneuvers in automotive, food & beverage, and general industrial environments. Feature → Business Impact → Application: Fusible without neutral simplifies wiring and reduces installation time, lowering labor costs while ensuring clean separation of circuits during service events in machine rooms and electrical closets. Feature → Business Impact → Application: NEMA 1 indoor enclosure with UL Listed certification delivers robust environmental protection and regulatory confidence, streamlining procurement and compliance audits for panel builders and system integrators. Feature → Business Impact → Application: 600 V voltage rating supports a broad range of plant distribution schemes, enabling a single switch to serve multiple feeders and easing spare parts planning. Feature → Business Impact → Application: NEC 230.62 barrier compliance adds a safety boundary within panels, mitigating arc-flash exposure during maintenance and improving overall safety programs in heavy industries. Feature → Business Impact → Application: Compact dimensions (8.5 in depth, 12.5 in width, 22.5 in height) and a 23 lb weight simplify retrofits and on-site installation in constrained spaces, assisting project managers with accurate space planning and logistics.
Get a Quick Quote for a Eaton DH363NGKG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH363NGKG?
Enquire Now
FAQs
Ideal for indoor control panels and motor feeder applications in industrial facilities where safe, code-compliant isolation is required. Its NEMA 1 enclosure and fusible no-neutral configuration simplify wiring and keep service areas organized while meeting NEC 230.62 barrier requirements.
It is a 100A, three-pole, single-throw fusible switch rated for up to 600 V, with a 240 V nominal operating range. Enclosure is NEMA 1, certified UL Listed, and components are designed for indoor electrical panels with fusible protection.
Yes, it supports 240V nominal systems and is rated for up to 600V, making it suitable for a wide range of industrial feeders and panel distributions without needing voltage-compatible adapters.
The unit is UL Listed and complies with NEC 230.62 barrier requirements. It also features a NEMA 1 enclosure for indoor installation, aligning with common regulatory and safety standards in general industrial environments.
Plan for an 8.5 in depth, 12.5 in width, and 22.5 in height footprint with a 23 lb weight. These dimensions support straightforward mounting in standard control cabinets and indoor panels, with space for wiring and service access.
