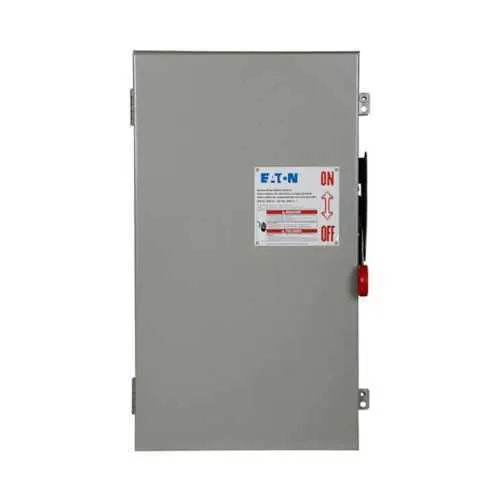

Eaton DH364FRKLLV Auxiliary Power Switch - UL Listed
Part Number: DH364FRKLLV
Quick Summary
Eaton DH364FRKLLV auxiliary power switch enables reliable, centralized control of 200A circuits in industrial distribution panels. This design reduces the risk of unsafe disconnections and panel faults during maintenance by delivering clear, visible blades and robust mechanical interlock. The unit carries UL Listed certification and a NEMA 3R enclosure, ensuring safe operation in demanding environments, while its Class H fuse provision and fusible without neutral configuration support proper fault interruption. Built for three-pole, three-wire systems, this heavy-duty K-Series device aligns with standard panel layouts and simplifies field installs. For buyers, it translates to improved uptime and lower lifecycle costs.
Product Information
Extended Description
DH364FRKLLV Eaton: Eaton auxiliary power switch, Enhanced visible blades, 200 A, NEMA 3R, Painted galvanized steel, Class H, Fusible without neutral, Three-pole, Three-wire, 600 V, #6-250 kcmil Cu/Al
Product Name
Eaton auxiliary power switch
Catalog Number
DH364FRKLLV
UPC
786685689951
Product Length/Depth
27.66 in
Product Height
6.14 in
Product Width
16.66 in
Product Weight
38 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Amperage Rating
200A
Voltage rating
600 V
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Product Category
Heavy-duty safety switch
Series
K-Series
Special features
Enhanced visible blades
Feature: 200A, 600V ratings provide ample headroom for common industrial feeders; Benefit: reduces the likelihood of nuisance trips while allowing safe, code-compliant isolation of power; Application: service disconnects in motor control centers and distribution panels. Feature: NEMA 3R enclosure with painted galvanized steel; Benefit: weather resistance and durable enclosure integrity in indoor/outdoor environments; Application: outdoor control panels and rugged factory floors. Feature: Enhanced visible blades; Benefit: improved operator visibility during line-up and disconnection, reducing misoperation risk; Application: safe maintenance and quick verification of switch position. Feature: Three-pole, fusible without neutral; Benefit: simplified wiring and precise protection of all phases without neutral complexity; Application: high-current, three-phase motor circuits. Feature: Cu/Al conductor compatibility up to #6-250 kcmil; Benefit: flexible feeder connections and reduced cabling costs; Application: large-diameter feeder systems and service entrances. Feature: K-Series compatibility; Benefit: seamless integration with Eaton’s protection and control ecosystem for standardized maintenance and spare-part availability; Application: panel builders seeking consistent component families for uptime and procurement efficiency.
Get a Quick Quote for a Eaton DH364FRKLLV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH364FRKLLV?
Enquire Now
FAQs
For installation, mount the three-pole fusible switch in a compatible enclosure, ensure Cu/Al conductors up to #6-250 kcmil are securely terminated, and follow the NEMA 3R protection guidelines. Verify the 600 V rating aligns with your system voltage and ensure proper clearance around the enhanced visible blades for safe operation.
The DH364FRKLLV is UL Listed and designed as a three-pole, fusible switch with a NEMA 3R enclosure and Class H fuse provisions. Its fusible without neutral configuration simplifies wiring while maintaining robust short-circuit protection, aligning with common industrial safety and electrical protection standards.
This switch is ideal for heavy-duty motor control centers, service disconnects for large feeders, and industrial distribution panels. Its enhanced visible blades, rugged NEMA 3R enclosure, and high current rating make it well-suited for outdoor or harsh indoor environments requiring reliable isolation and protection.
Key certifications and ratings include UL Listed certification and a NEMA 3R enclosure. The device is rated for 200A and 600V, with Class H fuse provision. While not providing IP, SIL, or CE data in the current spec, the UL listing and enclosure rating support common compliance needs in US industrial applications.
The DH364FRKLLV reduces maintenance risk with enhanced blade visibility and robust enclosure protection, minimizing unplanned outages. Its compatibility with Cu/Al conductors up to #6-250 kcmil streamlines wiring, while UL Listed safety reduces compliance overhead. Over time, this can lower downtime, extend mean time between failures, and simplify spare-parts inventory through K-Series compatibility.
