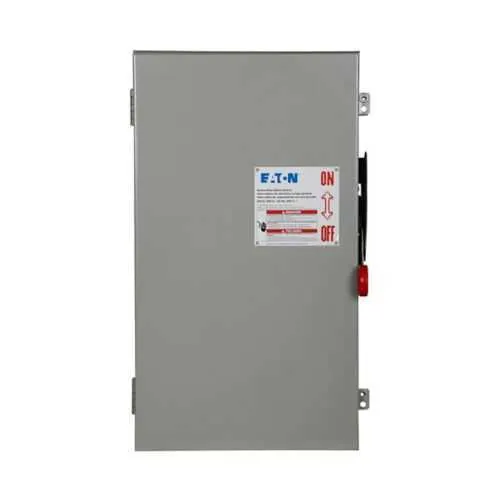

Eaton DH364NRKLLV Auxiliary Power Switch - UL Listed
Part Number: DH364NRKLLV
Quick Summary
Eaton auxiliary power switch reliably controls three-phase power in industrial panels and switchgear. Operators and maintenance teams often struggle with mislabeling, slow fault isolation, and weather exposure that drive downtime. UL Listed and built in a rugged NEMA 3R enclosure with a Class H fuse provision help ensure code compliance and outdoor performance. Three-pole, four-wire configuration and fusible-with-neutral design support safe, predictable operation across large feeders. Coupled with the K-Series design, this solution delivers robust protection and straightforward compatibility for Cu/Al conductors up to #6-250 kcmil, reducing spare parts and installation time. This translates to faster commissioning, easier maintenance, and improved system uptime in demanding environments.
Product Information
Extended Description
DH364NRKLLV Eaton: Eaton auxiliary power switch, Enhanced visible blades, line/load labels, 200 A, NEMA 3R, Painted galvanized steel, Class H, Fusible with neutral, Three-pole, Four-wire, 600 V, #6-250 kcmil Cu/Al
Product Name
Eaton auxiliary power switch
Catalog Number
DH364NRKLLV
UPC
786685689968
Product Length/Depth
30 in
Product Height
9.5 in
Product Width
18 in
Product Weight
52 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Amperage Rating
200A
Voltage rating
600 V
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class H
Fuse configuration
Fusible with neutral
Number Of Poles
Three-pole
Number of wires
4
Type
Heavy duty fusible safety switch
Product Category
Heavy-duty safety switch
Series
K-Series
Special features
Enhanced visible blades, line/load labels
Feature: High-current rating and voltage capability. Business Impact: Enables reliable service of large three-phase loads with minimal voltage drop and reduced risk of nuisance trips. Application: Motor control centers, main distribution panels, and outdoor substations where 200A at 600V performance is required. Feature: Rugged NEMA 3R enclosure. Business Impact: Provides weather resistance and durable operation in harsh environments, lowering replacement costs and downtime. Application: Outdoor installations, service entrances, and exposed panel areas. Feature: Class H fuse provision and fusible with neutral. Business Impact: Improves fault isolation and selective coordination, reducing arc flash exposure and unnecessary outages. Application: Critical power feeds and safety-conscious industrial circuits. Feature: Enhanced visibility blades and line/load labels. Business Impact: Speeds maintenance and reduces miswiring, improving first-time fixes and operator safety. Application: Field service and commissioning crews in dense switchgear environments. Feature: K-Series heavy-duty design with Cu/Al compatibility. Business Impact: Ensures long service life, simplified spares management, and easy integration with #6-250 kcmil conductors. Application: Large industrial feeders and mixed-metal installations in industrial plants.
Get a Quick Quote for a Eaton DH364NRKLLV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH364NRKLLV?
Enquire Now
FAQs
The DH364NRKLLV supports a three-pole, four-wire configuration rated at 200A and 600V, with fusible protection that includes a neutral. It accepts Cu/Al conductors from #6 to 250 kcmil, making it suitable for motor control centers, main distribution panels, and outdoor feeder connections. This compatibility simplifies panel design and reduces stock complexity for large facilities.
This unit uses a NEMA 3R enclosure with painted galvanized steel, delivering weather resistance for outdoor or harsh indoor environments. Plan for proper mounting clearances, secure enclosure grounding, and correct labeling of line/load terminals. The unit weighs about 52 lb, so use appropriate lifting methods and check for compatibility with nearby devices in the K-Series family.
The DH364NRKLLV is UL Listed, ensuring compliance with recognized electrical safety standards for industrial switchgear. Its NEMA 3R enclosure supports outdoor conditions, and the device uses Class H fusing to meet safety and reliability expectations. This combination supports code compliance in commercial and industrial installations where safety certifications are a requirement.
Enhanced visible blades and line/load labeling accelerate fault finding and routine maintenance, lowering downtime. The fusible-with-neutral design and Class H fuse provide predictable protection, helping to minimize unplanned outages. Its robust construction and Cu/Al conductor compatibility reduce spare-part variety and replacement costs, contributing to lower total cost of ownership over time.
Ideal for motor control centers, outdoor substations, and heavy-duty power distribution in manufacturing and processing facilities. The three-pole, four-wire configuration supports three-phase loads up to 200A at 600V, while the NEMA 3R enclosure enables reliable performance in exposed environments. Use in new builds or retrofit projects that require rugged protection and code-compliant safety switching.
