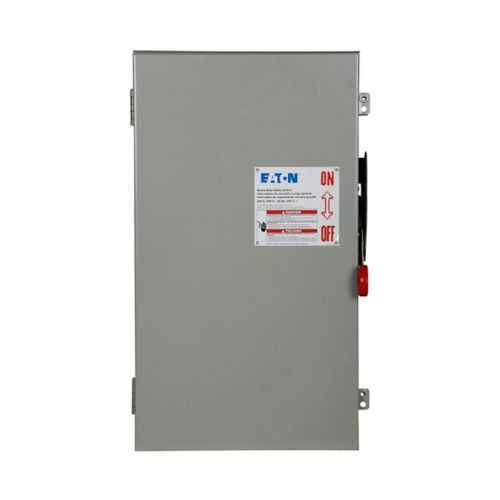

Eaton DH365FRKLLV Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH365FRKLLV
Quick Summary
Eaton heavy duty fusible safety switch is a robust power-distribution device designed to interrupt fault currents in industrial controls. Many maintenance teams struggle with switches that fail in harsh environments or require costly service. It carries UL Listed certification, NEC 230.62 barrier compliance, and a NEMA 3R enclosure, providing durable performance in outdoor and harsh indoor spaces. With a 400 A, 600 V rating, it protects feeders and motors while supporting straightforward field wiring and reliable operation. Enhanced visible blades and line/load labeling improve safety during servicing, helping reduce downtime and compliance risk in industrial power systems. Designed for three-pole, Class H fuse configurations and a fusible-without-neutral design, it integrates easily with Eaton K-Series products to streamline installer workflows.
Product Information
Extended Description
DH365FRKLLV Eaton: Eaton Heavy duty single-throw fused safety switch, Enhanced visible blades, line/load labels, 400 A, NEMA 3R, Painted galvanized steel, Class H, Three-pole, Three-wire, 600 V, (2)#1/0-(2)300 kcmil; or (1)#1/0-(1)750 kcmil Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH365FRKLLV
UPC
786685689982
Product Length/Depth
12.63 in
Product Height
45.19 in
Product Width
23 in
Product Weight
120 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Amperage Rating
400A
NEMA rating
NEMA 3R
Voltage rating
600 V
Product Category
Heavy-duty safety switch
Series
K-Series
Feature: 400 A amperage rating supports high-load feeders and motor circuits. Benefit: Enables safe, reliable interrupt capability for demanding industrial applications, reducing the risk of thermal damage and downtime. Application: Plant-wide motor control centers and main feeders in manufacturing facilities. Feature: NEMA 3R enclosure with painted galvanized steel construction. Benefit: Weather-resistant, durable enclosure suitable for outdoor and damp indoor environments, lowering corrosion-related maintenance costs. Application: Outdoor switchgear installations and exposed industrial control panels. Feature: Class H fuse provision with fusible without neutral configuration. Benefit: Superior short-circuit protection and simplified wiring paths, reducing nuisance trips and ensuring compliant isolation. Application: 3-pole, 600 V circuits feeding heavy machinery. Feature: Enhanced visible blades and line/load labeling. Benefit: Safer maintenance, faster identification, and fewer mis-wiring incidents during servicing. Application: Routine service and replacement of fuses in live systems. Feature: Three-pole, three-wire design with conductor sizing flexibility (up to (2) 300 kcmil Al or (1) 750 kcmil Al equivalent). Benefit: Flexible installation for large feeders without custom fabrication, improving installation speed and reducing labor costs. Application: Large electrical distribution feeds and motor circuits in industrial plants.
Get a Quick Quote for a Eaton DH365FRKLLV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH365FRKLLV?
Enquire Now
FAQs
The DH365FRKLLV is a three-pole, fusible safety switch designed for 400 A at 600 V in a NEMA 3R enclosure. Plan for a tall, floor-standing installation with clearance for conductor terminations and access to line/load labeling. Ensure compatibility with standard Eaton K-Series accessories and follow NEC guidelines for barrier spacing.
Verify a 400 A current rating, 600 V voltage rating, three-pole, three-wire configuration, and Class H fuse provision. Confirm fusible without neutral operation and ensure conductor sizes up to (2) 300 kcmil Al or (1) 750 kcmil Al equivalents. Also check UL Listed certification and NEC 230.62 barrier compliance.
Yes. It features a NEMA 3R enclosure with painted galvanized steel construction, offering weather resistance for outdoor installations and damp indoor spaces. This makes it appropriate for exterior feeders and protection of critical electrical equipment in challenging environments.
The unit is UL Listed and NEC 230.62 barrier compliant. It uses a NEMA 3R enclosure and is designed for safe operation in industrial settings, aligning with common safety and electrical installation standards for heavy-duty safety switches.
The DH365FRKLLV's enhanced visibility features, clear line/load labeling, and robust Class H fuse design reduce maintenance time and mis-wiring risk. Its durable enclosure minimizes corrosion-related upkeep, and its compatibility with Eaton K-Series products supports streamlined spare parts and faster fault isolation, contributing to lower downtime and improved total cost of ownership.
