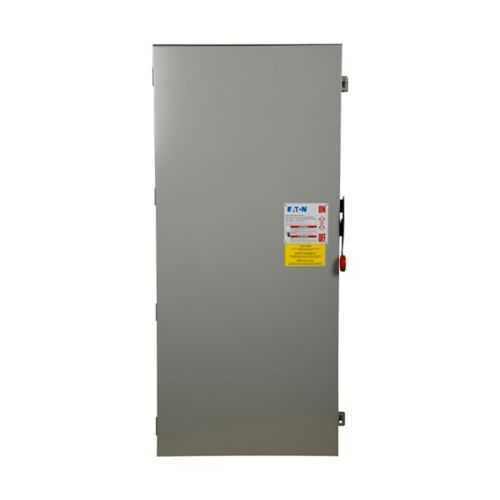

Eaton DH367NRK Heavy Duty Fusible Safety Switch - UL Listed, NEMA 3R
Part Number: DH367NRK
Quick Summary
The Eaton DH367NRK heavy duty fusible safety switch provides primary isolation for three-phase power systems up to 800 A and is ideal for protecting large motors and critical loads. Engineers often battle downtime and safety risks when switching high-current feeds or managing complex wiring in rugged environments; this unit addresses those challenges with robust protection and straightforward installation. With UL Listed certification, a NEMA 3R enclosure, and NEC 230.62 compliant barrier, it delivers proven safety and code compliance. The design supports 480/600 V systems and up to 500 hp, offering tangible value for industrial electrical protection while aligning with maintenance and procurement efficiency goals. Fit-for-purpose performance and long-term reliability translate to lower operating costs and higher plant uptime.
Product Information
Extended Description
DH367NRK Eaton: Eaton Heavy duty single-throw fused safety switch, 800 A, NEMA 3R, Painted galvanized steel, Class L, Fusible with neutral, Three-pole, Four-wire, 600 V, Max Hp: 500, 500 hp (3PH @480/600 V), (4)#1/0-(4)750 kcmil Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH367NRK
UPC
782113639277
Product Length/Depth
57.5 in
Product Height
12.38 in
Product Width
27.5 in
Product Weight
210 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class L
Fuse configuration
Fusible with neutral
Number Of Poles
Three-pole
Number of wires
4
Type
Heavy duty fusible safety switch
Amperage Rating
800A
HP rating - max
500, 500 hp (3PH @480/600 V)
NEMA rating
NEMA 3R
Voltage rating
600 V
Product Category
Heavy Duty, Fusible with neutral
Feature → Business Impact → Application: 800 A amperage rating with Class L fuse and fusible with neutral enables coordinated protection for large motor circuits, reducing nuisance fuse operations and improving safety during isolation. This translates to higher equipment availability and lower maintenance costs on 480/600 V motor feeders across manufacturing lines. Feature → Business Impact → Application: NEMA 3R enclosure built from painted galvanized steel provides durable outdoor and harsh-environment protection, minimizing corrosion risk and maintenance while enabling installation in outdoor substations and exposed plant areas. Feature → Business Impact → Application: Three-pole, four-wire configuration with a neutral simplifies wiring schemes for standard three-phase systems, streamlining installation and making retrofits or expansions straightforward in warehouses and process facilities. Feature → Business Impact → Application: NEC 230.62 compliant barrier and UL Listed certification deliver regulatory alignment and safer work practices, reducing project risk and speeding approvals for new builds or upgrades. Feature → Business Impact → Application: Max HP rating of 500 hp (3PH @480/600 V) and 600 V rating support high-demand drives, delivering predictable protection for large motor loads in packaging, textile, and water treatment applications. Feature → Business Impact → Application: Overall dimensions (57.5 in length, 27.5 in width, 12.38 in height) and a 210 lb weight provide a clear installation footprint, improving planning accuracy for equipment rooms and outdoor areas and informing crane/rigging needs when deploying in new or upgraded facilities.
Get a Quick Quote for a Eaton DH367NRK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH367NRK?
Enquire Now
FAQs
Yes. The DH367NRK is designed as a three-pole, four-wire switch with a fusible neutral configuration, rated at 600 V for 3-phase power and compatible with neutral connections in standard 600 V distribution schemes. It supports up to 800 A and integrates with common motor feeder architectures.
Key ratings include 800 A amperage, 600 V voltage, and 500 hp max for 3-phase loads at 480/600 V. These specs enable protection for large motors and high-load feeders, delivering reliable isolation, short-circuit protection coordination, and efficient fault clearance in demanding industrial environments.
Yes. The unit comes in a NEMA 3R enclosure with painted galvanized steel, designed for outdoor and harsh indoor environments. This enclosure safeguards against rain, dust, and corrosion, reducing maintenance needs and extending service life in outdoor substations and exposed plant applications.
The DH367NRK is UL Listed and NEC 230.62 (C) compliant, with a barrier that supports safe and code-aligned installations. These certifications help streamline approvals, ensure personnel safety, and support compliance during audits and inspections.
By providing robust protection for large motor loads, reducing nuisance trips, and offering a durable outdoor enclosure, the DH367NRK minimizes downtime and maintenance costs. Its documented warranty and reliable performance help justify capital expenditure through improved uptime and longer service intervals.
