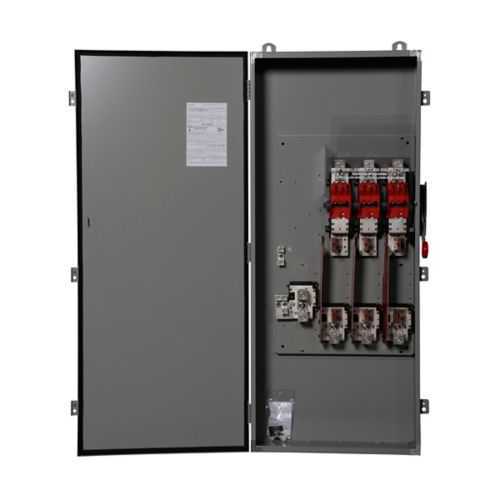

Eaton DH368FDKV Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH368FDKV
Quick Summary
Eaton heavy duty fusible safety switch provides safe isolation for high‑demand industrial power systems. It reduces downtime by delivering reliable disconnection during routine maintenance or fault events. UL Listed, NEC 230.62 compliant barriers, and a NEMA 12/3R enclosure deliver robust safety and installation confidence. With a three‑pole configuration rated at 1200 A and 600 V, it scales to demanding control panels and switchgear in manufacturing and processing environments. The design supports easy field serviceability and compatibility with HDSS requirements, helping today’s facilities meet code while lowering maintenance costs and extending equipment life. This combination of safety, reliability, and industrial automation alignment makes it a practical choice for energy management and risk reduction.
Product Information
Extended Description
DH368FDKV Eaton: Eaton Heavy duty single-throw fused safety switch, Enhanced visible blades, 1200 A, NEMA 12/3R, Painted galvanized steel, Class L, Fusible without neutral, Three-pole, Three-wire, 600 V, (4)#1/0-(4)750 kcmil Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH368FDKV
UPC
786685972343
Product Length/Depth
72 in
Product Height
21 in
Product Width
48 in
Product Weight
455 lb
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Heavy Duty Safety Switch (HDSS)
Enclosure
NEMA 12, NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class L
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Amperage Rating
1200A
NEMA rating
NEMA 12/3R
Voltage rating
600 V
Feature: NEMA 12 and NEMA 3R enclosure provides robust protection against dust, moisture, and incidental exposure. Business Impact: Increases equipment uptime and lowers corrosion risk, reducing maintenance cycles. Application: Suitable for indoor plant rooms and outdoor enclosures near damp or dusty production lines. Feature: Fusible configuration without neutral with Class L fuse provision. Business Impact: Simplifies fault isolation and enhances selectivity, improving overall protection coordination. Application: Large motor feeders and critical circuits in heavy industry. Feature: Three-pole, three-wire design rated at 1200 A and 600 V. Business Impact: Supports higher current loads with fewer devices, lowering panel footprint and installation time. Application: Motor control centers and main feeders in continuous‑process environments. Feature: Heavy Duty Safety Switch (HDSS) designation and UL Listed certification. Business Impact: Meets stringent safety standards and eases regulatory validation during audits. Application: Facilities requiring formal compliance and documented maintenance processes. Feature: NEC 230.62 (C) compliant barrier. Business Impact: Reduces personnel exposure risk and helps teams maintain compliance during service work. Application: Industrial plants with centralized power distribution and maintenance crews. Feature: 4#1/0 to (4)750 kcmil Al/Fuses capacity and 600 V rating. Business Impact: Supports large conductor sizes and future expansion without component changes. Application: High‑amperage feeders and large‑motor protection in manufacturing facilities.
Get a Quick Quote for a Eaton DH368FDKV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH368FDKV?
Enquire Now
FAQs
The DH368FDKV is a three‑pole, three‑wire heavy duty fusible safety switch designed for 600 V systems. It accepts large conductor sizes (up to 750 kcmil aluminum) and is compatible with NEMA 12/3R enclosures. For retrofit projects, verify panel space, ensure proper neutral handling per Class L fuse provisions, and follow UL safety guidelines during disconnect installation. Proper wiring practices and torque specs from Eaton’s data sheet should be followed to ensure reliable operation and code compliance.
The device is rated for 1200 A and 600 V, with a three‑pole configuration and fusible without neutral. This allows protection for high‑current feeders and large motors. When selecting fuses, ensure Class L attributes are matched to the load characteristics, and confirm that conductor sizing and overcurrent protection align with NEC 230.62 requirements for safe, coordinated protection in your installation.
Yes. The DH368FDKV features a painted galvanized steel enclosure rated for NEMA 12 and NEMA 3R conditions, making it suitable for dusty or damp environments commonly found in manufacturing, packaging, and processing facilities. Its HDSS designation and UL listing provide confidence for installations requiring rigorous safety and reliability standards, including panelboards and motor control centers.
This switch is UL Listed and includes NEC 230.62 (C) compliant barriers, ensuring worker safety during live maintenance and compliant panel labeling. The NEMA 12/3R enclosure further supports protection against environmental factors. These certifications help streamline inspections and audits, while enabling engineers to demonstrate code compliance during project handovers.
Routine maintenance focuses on inspecting enclosure integrity, fuse status, and electrical connections per manufacturer recommendations. The 1200 A, 600 V rating supports fewer components for large capacity installations, potentially reducing spare parts and maintenance time. Over time, the UL listing and robust enclosure design contribute to lower lifecycle costs by minimizing unscheduled downtime and extending service intervals.
