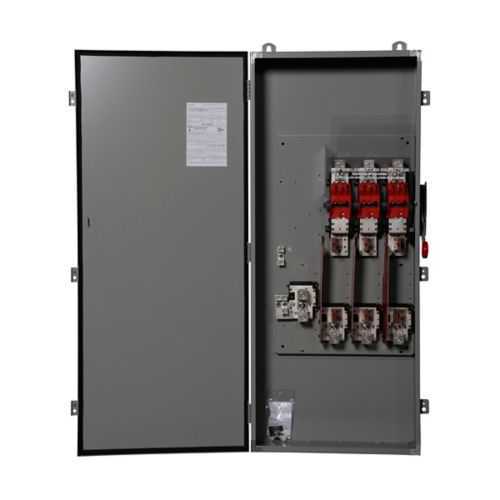

Eaton DH368FGKV Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH368FGKV
Quick Summary
Eaton heavy duty fusible safety switch provides rugged isolation for high-voltage applications in industrial facilities. Facing downtime from unscheduled outages and risky live-line work, you need a maintenance-friendly, robust safety switch. UL Listed certification, NEC 230.62 compliant barrier, and a NEMA 1 enclosure ensure safety, reliability, and installability in demanding environments. This model also features a Class L fuse provision and heavy-duty construction, delivering durable protection for 600 V circuits and 1200 A service. For engineers and maintenance teams, it translates to faster service, safer disconnections, and consistent performance in harsh production conditions.
Product Information
Extended Description
DH368FGKV Eaton: Eaton Heavy duty single-throw fused safety switch, Enhanced visible blades, 1200 A, NEMA 1, Painted steel, Class L, Fusible without neutral, Three-pole, Three-wire, 600 V, (4)#1/0-(4)750 kcmil Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH368FGKV
UPC
786685972350
Product Length/Depth
72 in
Product Height
21 in
Product Width
48 in
Product Weight
465 lb
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Heavy Duty Safety Switch (HDSS)
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse class provision
Class L
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Amperage Rating
1200A
NEMA rating
NEMA 1
Voltage rating
600 V
Feature → Business Impact → Application: The DH368FGKV is a three-pole, fusible without neutral design, enabling safe, isolated shutdown for large motors and feeders. This minimizes arc flash exposure during maintenance and reduces downtime, supporting safer plant startup and quicker fault clearance in industrial power distribution. Application: large manufacturing facilities with high-current motor loads and critical feeders, where dependable 600 V isolation is essential. Feature → Business Impact → Application: Painted steel NEMA 1 enclosure provides durable enclosure protection against dust and incidental moisture. Benefit: enhanced enclosure integrity in demanding shop floors and lifting environments, lowering maintenance costs and extending service life. Application: general-purpose electrical protection panels in harsh environments. Feature → Business Impact → Application: UL Listed certification and NEC 230.62 barrier compliance deliver regulatory confidence and safer panel integration. Benefit: streamlines compliance documentation for audits and reduces design-to-install time. Application: electrical distribution systems in manufacturing, data centers, and processing plants. Feature → Business Impact → Application: Class L fuse provision supports selective protection and standardized fuse kits, improving fault isolation and spare-part compatibility. Benefit: reduces total cost of ownership by simplifying maintenance and stock planning. Application: medium to large electrical feeders where precise fuse coordination matters. Feature → Business Impact → Application: 1200 A amperage rating with 600 V operation supports heavy-duty load handling and scalable power distribution. Benefit: supports future capacity expansion without replacing the switch, improving ROI. Application: large motors, conveyors, and heavy equipment upstream of switchgear in industrial environments.
Get a Quick Quote for a Eaton DH368FGKV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH368FGKV?
Enquire Now
FAQs
The DH368FGKV is a three-pole, fusible safety switch designed for a NEMA 1 painted steel enclosure. It supports three wiring conductors and a fusible configuration without neutral, suitable for 600 V systems up to 1200 A. For installation, ensure proper clearances for a 72 in depth unit and confirm panel space alignment with standard utility and motor control centers.
Key ratings include a 1200 A amperage rating and a 600 V voltage rating. It features a three-pole, three-wire configuration with Class L fuse provision. The unit is UL Listed and designed for heavy-duty disconnect applications, providing reliable shutoff and isolation for large motors and feeders.
Yes. It comes in a NEMA 1 painted steel enclosure, offering protection against dust and incidental moisture typical of factory floors. Its heavy-duty build, UL listing, and NEC 230.62 barrier compliance make it well-suited for large plant power distribution, motor control, and critical process lines.
This model is UL Listed and complies with NEC 230.62 barrier requirements, which helps ensure safe separation of conductors and improved maintenance safety. The NEMA 1 enclosure further supports general indoor installation and aligns with common industry practices for electrical protection in industrial facilities.
The unit’s heavy-duty construction, Class L fuse provision, and clear blade visibility reduce maintenance time and fault investigation. Its durable enclosure and standardized fuse coordination simplify spares and replacements, delivering lower downtime and improved return on investment over the life of large-scale electrical installations.
