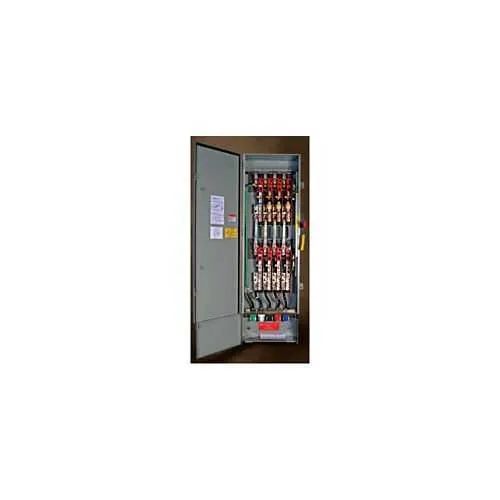

Eaton DH368NRKLPR QuickConnect Safety Switch - UL
Part Number: DH368NRKLPR
Quick Summary
Eaton DH368NRKLPR QuickConnect Safety Switch provides reliable heavy-duty electrical isolation for industrial power distribution panels. Many facilities struggle with unsafe lockout procedures, maintenance downtime, and exposure to harsh outdoor conditions. UL Listed, NEMA 3R enclosure rating, and a 600V capacity help you meet regulatory requirements while protecting personnel and equipment. In practice, this switch enables fast wiring, robust isolation, and long service life, reducing downtime and total cost of ownership for electrical protection and circuit control in demanding environments. This combination of rugged construction and Eaton engineering delivers tangible value for OEMs, plant engineers, and maintenance teams seeking dependable, serviceable protection for motors and feeders.
Product Information
Extended Description
DH368NRKLPR Eaton: Eaton quick connect heavy-duty safety switch,Posi-Lok reverse pin,1200A,NEMA 3R,Three-pole,Series K,600V,Heavy-duty,Double throw,Fusible with solid neutral
Product Name
Eaton quick connect heavy duty safety switch
Catalog Number
DH368NRKLPR
UPC
786679185063
Product Length/Depth
89.39 in
Product Height
29.62 in
Product Width
42.62 in
Product Weight
945 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Connector plugs are typically not provided, but may be special ordered
Special features
Posi-Lok, reverse pin
Type
Double Throw
Eaton Switching Devices
Eaton Switching Devices
Eaton Switching Devices
Eaton Switching Devices
Eaton Specification Sheet - DH368NRKLPR
Feature 1200A current capacity with 600V rating, three-pole, double-throw design, fusible with solid neutral, and Posi-Lok reverse pin; Business Impact Delivers high-current handling with secure, fail-safe isolation for large motors and feeders, reducing fault duration and improving system reliability; Application Use in heavy-duty power distribution within manufacturing lines and outdoor facilities where robust switching and durable construction are required. Feature QuickConnect wiring with field-friendly installation and connector plugs typically not provided; Business Impact Speeds commissioning and simplifies field wiring while maintaining a solid, code-compliant disconnect; Application Ideal for retrofit or new builds in industrial environments seeking fast maintenance access without compromising safety. Feature NEMA 3R enclosure rating supports outdoor and damp locations; Business Impact Improves environmental resilience and uptime in harsh plants; Application Suitable for outdoor switchgear housings and exposed installations. Feature UL Listed certification confirms compliance with safety standards; Business Impact Facilitates regulatory acceptance and reduces risk during audits; Application Essential for facilities pursuing formal electrical protection compliance. Feature Fiduciary warranty terms and Eaton reliability add business value; Business Impact Lowers long-term maintenance costs and extends component life; Application End-user maintenance planning and service budgeting benefit from predictable support timelines.
Get a Quick Quote for a Eaton DH368NRKLPR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH368NRKLPR?
Enquire Now
FAQs
This three-pole, double-throw safety switch is rated 1200A at 600V and uses Posi-Lok reverse pin connections for secure wiring. Expect to accommodate a NEMA 3R enclosure in both indoor and outdoor environments. Note that connector plugs are typically not provided and may require a separate order. Verify cabinet cutouts, mounting hardware, and alignment with Series K components to ensure a seamless retrofit or new-build integration.
With 1200A capacity and 600V rating, the DH368NRKLPR supports high-demand motors and feeders while maintaining robust isolation. Its fusible with solid neutral design and double-throw operation improve fault isolation and fault-path control. The Posi-Lok reverse pin enhances secure disengagement, reducing arcing risk during switching. These features collectively boost reliability and uptime in demanding industrial applications.
Yes. The NEMA 3R enclosure rating provides weather- and moisture-resistance, allowing dependable operation in outdoor or damp locations. UL Listed certification further confirms safety compliance. The 1200A/600V specification supports heavy-duty applications such as outdoor motor control centers and exposed conveyors, while still fitting within rugged plant layouts.
The DH368NRKLPR is UL Listed, signaling adherence to recognized safety standards for electrical equipment. Its NEMA 3R enclosure rating supports outdoor and damp locations, aligning with common industrial installation codes. These certifications help with passing safety audits, insurance requirements, and customer specifications for compliant electrical protection and circuit control solutions.
Maintenance focus centers on secure electrical connections and reliable isolation performance. Connector plugs are typically not provided, so plan for any required field wiring components. The 18-month shipment or one-year installation warranty reduces risk, while UL/NEMA 3R compliance reduces downtime during inspections. Overall, expect lower maintenance costs and longer service life for heavy-demand applications.
