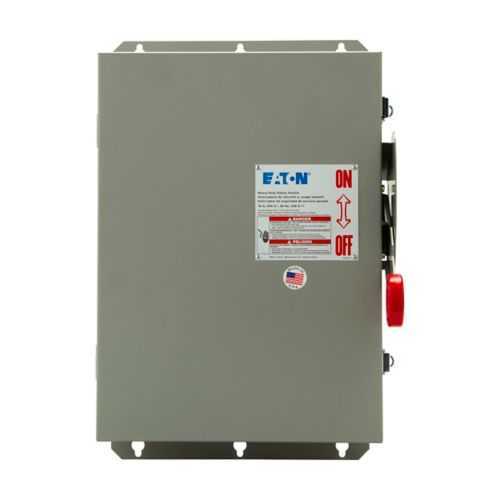

Eaton DH462FDK Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH462FDK
Quick Summary
The Eaton DH462FDK Heavy Duty Fusible Safety Switch provides reliable power control for 60 A circuits in demanding industrial environments. With maintenance windows shrinking and downtime costs rising, engineers need a safe, serviceable solution that minimizes fuse replacements and fault exposure. UL Listed protection paired with a NEMA 12/3R enclosure and Class H fuse provisions supports reliable operation in dirty, high-humidity environments. This four-pole, 600 V-rated switch is ready for integration with 480/600 V drives and four-wire circuits, delivering predictable protection and simplified spare-part planning for industrial control gear.
Product Information
Extended Description
DH462FDK Eaton: Eaton Enhanced visible blade single-throw safety switch, 60 A, NEMA 12/3R, Painted galvanized steel, Class H, Fusible without neutral, Four-pole, Four-wire, 600 V, Max Hp: 40, 50/ 30, 50 hp (480,600 V @1/3PH), 600 V, #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH462FDK
UPC
786685234953
Product Length/Depth
25.5 in
Product Height
9 in
Product Width
13.25 in
Product Weight
40 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Enclosure
NEMA 12, NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Four-pole
Number of wires
4
Type
Heavy duty fusible safety switch
Amperage Rating
60A
HP rating - max
40, 50/ 30, 50 hp (480,600 V @1/3PH)
NEMA rating
NEMA 12/3R
Voltage - max
600 V
Voltage rating
600 V
Product Category
Heavy Duty, Fusible without neutral
Feature: 60 A amperage rating and HP compatibility up to 40, 50/30, 50 hp at 480/600 V. Business Impact: Provides robust motor protection for common industrial loads, reducing nuisance tripping and enabling predictable maintenance cycles. Application: Suitable for pumps, fans, and conveyors in manufacturing lines. The outcome is improved equipment uptime and safer shutdown procedures. Long-tail keywords: heavy duty fusible switch, 60A control, motor protection for 480/600 V systems. Feature: Four-pole, four-wire design with fusible without neutral and Class H fuse provision. Business Impact: Enables simple segregation of phases and reliable protection without neutral connections, lowering wiring complexity and mis-wiring risks. Application: Conventional control panels and starter assemblies in harsh environments. The result is faster installation and fewer field-validation calls. Long-tail keywords: four-pole safety switch, fusible without neutral, Class H fuse, safe panel integration.Feature: NEMA 12, NEMA 3R enclosure in painted galvanized steel. Business Impact: Delivers proven enclosure protection against dust, moisture, and corrosion, extending service life in challenging facilities. Application: Outdoor or damp plant rooms, wash-down areas, and exposed installations. Long-tail keywords: NEMA 12 enclosure, corrosion-resistant steel, harsh-environment switchgear.Feature: UL Listed certification with robust mechanical construction and a 600 V rating. Business Impact: Assures compliance with electrical safety standards, easing audits and regulatory acceptance. Application: Industrial control circuits up to 600 V; motor control centers and switchgear assemblies. Long-tail keywords: UL Listed safety switch, 600 V rated switch, electrical safety standard compliance.Feature: Dimensions and weight (25.5 in L x 13.25 in W x 9 in H; 40 lb). Business Impact: Compact enclosure footprint simplifies retrofit projects and reduces shipping/handling costs. Application: Factory floor installations with space constraints; retrofit projects in legacy lines. Long-tail keywords: compact safety switch, 4-pole enclosure size, 60A control hardware.
Get a Quick Quote for a Eaton DH462FDK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH462FDK?
Enquire Now
FAQs
Install the four-pole, fusible switch with no neutral connection as specified. Ensure the enclosure is mounted in a clean, dry location and that Phase A, B, C are correctly wired to the three live terminals while the fourth conductor completes the four-wire circuit. Verify 600 V rating and fuse class (Class H) before energizing.
Yes. The switch is rated for up to 600 V and supports motor loads up to 40–50 HP at 480/600 V (1/3 phase). This makes it suitable for a range of industrial drives and pumps, while maintaining safe, protected startup and shut-off sequences.
The DH462FDK is UL Listed and housed in a NEMA 12, NEMA 3R painted galvanized steel enclosure. This combination provides dependable electrical safety certification along with protection against dust, moisture, and corrosion in many industrial environments.
Its NEMA 12/3R enclosure, Class H fuse provision, and fusible-without-neutral design minimize exposure during maintenance, while UL Listing assures compliance. The unit’s 40 lb weight and 25.5 x 13.25 x 9 in footprint simplify installation and fuse replacement in confined spaces.
By reducing nuisance trips, enabling faster fuse changes, and improving system reliability, this switch lowers downtime costs and extends equipment life. The robust enclosure and compliance features also minimize audit findings and maintenance overhead over the product’s lifecycle.
