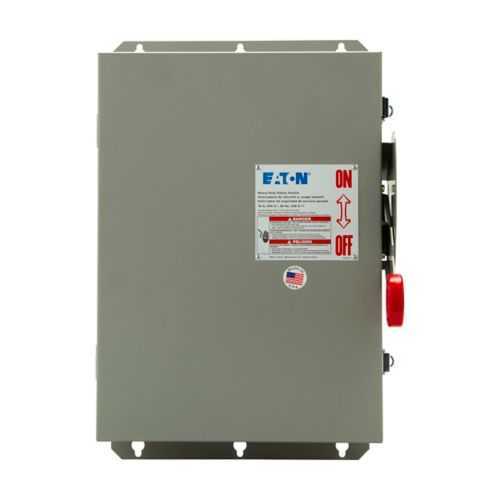

Eaton DH462FGK Fusible Safety Switch - UL Listed
Part Number: DH462FGK
Quick Summary
Eaton DH462FGK Fusible Safety Switch provides reliable heavy-duty electrical isolation for three-phase power in industrial control panels. When panel access or downtime is a pain point, this rugged solution reduces nuisance outages and speeds maintenance with a straightforward, safe shutdown. The unit is UL Listed and housed in a NEMA 1 painted steel enclosure, featuring Class H fusing for robust protection in interior environments. With a 60 A rating and 600 V capability, it scales from motor control to power distribution, delivering greater uptime and streamlined procurement for industrial facilities.
Product Information
Extended Description
DH462FGK Eaton: Eaton Heavy duty single-throw fused safety switch, 60 A, NEMA 1, Painted steel, Class H, Fusible without neutral, Four-pole, Four-wire, 600 V, Max Hp: 40, 50/ 30, 50 hp (480,600 V @1/3PH), 600 V, #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH462FGK
UPC
782113206066
Product Length/Depth
29 in
Product Height
9 in
Product Width
17 in
Product Weight
25 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Four-pole
Number of wires
4
Type
Heavy duty fusible safety switch
Amperage Rating
60A
HP rating - max
40, 50/ 30, 50 hp (480,600 V @1/3PH)
NEMA rating
NEMA 1
Voltage - max
600 V
Voltage rating
600 V
Product Category
Heavy Duty, Fusible without neutral
Feature: Four-pole, four-wire design supporting up to 60A and 600V. Business Impact: Provides complete isolation of three-phase circuits, reducing fault propagation and enabling faster, safer maintenance across production lines. Application: Motor control panels and industrial power distribution where reliable phase separation is essential. Feature: Class H fuse provision and fusible without neutral configuration. Business Impact: Optimizes fuse selection for high-inrush or motor-start loads, improving protection while minimizing nuisance trips. Application: Start-up sequences in pump and conveyance systems, where dependable interrupting capability matters. Feature: NEMA 1 enclosure with painted steel construction. Business Impact: Enclosure protection suitable for interior, clean environments, reducing corrosion risk and maintenance needs. Application: Indoor factory automation rooms and control cabinets. Feature: 60A rating, 40/50 hp (480/600 V @ 1/3PH) performance. Business Impact: Supports a broad range of motor sizes without replacement switches, lowering total cost of ownership and simplifying parts stocking. Application: Medium-sized motors in packaging, material handling, and process lines. Feature: UL Listed certification and warranty. Business Impact: Compliance assurance for safety programs and procurement approvals, plus a one-year warranty from installation or 18 months from shipment. Application: Compliance-driven projects and asset refresh programs in industrial facilities.
Get a Quick Quote for a Eaton DH462FGK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH462FGK?
Enquire Now
FAQs
The DH462FGK is a four-pole, four-wire interior switch with a 29 inch depth, 17 inch width, and 9 inch height footprint. Allow additional space for wiring, service access, and torque during mounting. Follow standard panel practices for interior electrical protection and safe lockout/tagout procedures.
Yes. The unit is rated 60A and 600V, with a maximum horsepower of 40–50 hp depending on voltage (480/600 V @ 1/3PH). It is designed for interior, three-phase motor control applications and can be integrated into common plant power distributions.
The DH462FGK carries UL Listed certification and uses a NEMA 1 painted steel enclosure. These credentials support compliance with safety standards, simplify procurement approvals, and provide confidence in safe operation within indoor industrial environments.
Eaton provides a one-year warranty from the date of installation or eighteen months from shipment, whichever occurs first (Eaton policy 25-000). This coverage supports maintenance planning and protects against early product issues in industrial settings.
By providing a reliable means to safely isolate power and interrupt fault currents, a fusible safety switch minimizes arc exposure and accelerates lockout/tagout procedures. This leads to faster maintenance, safer troubleshooting, and reduced downtime in manufacturing lines and packaging systems.
