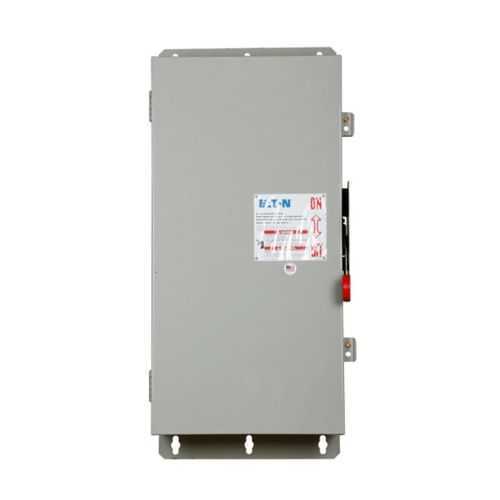

Eaton DH464FDK Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH464FDK
Quick Summary
Eaton DH464FDK is a heavy duty fusible safety switch designed for main power distribution in industrial motor circuits. This solution addresses common panel protection challenges such as space constraints, wiring complexity, and unexpected fuse changes that drive downtime. It carries UL Listed certification and supports NEMA 12/3R enclosure configurations, with four poles and Class H fuse provisions for reliable protection. The design also accommodates field modification to meet NEMA 3R rainproof requirements when a factory drain hole is opened, enabling weather-resilient installations. By combining rugged construction with straightforward installation and a strong warranty, this switch delivers tangible business value—reducing maintenance intervals and ensuring safer, compliant operation in demanding environments.
Product Information
Extended Description
DH464FDK Eaton: Eaton Heavy duty single-throw fused safety switch, 200 A, NEMA 12/3R, Painted galvanized steel, Class H, Fusible without neutral, Four-pole, Four-wire, 600 V, Max Hp: 125, 150/ 40 hp (480,600 V @3PH/250 Vdc), 600 V, #6-300 kcmil Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH464FDK
UPC
782113206981
Product Length/Depth
37.5 in
Product Height
11.5 in
Product Width
19 in
Product Weight
58 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Can be field modified to meetNEMA 3R rainproof requirements when a factory provided drain hole is opened
Enclosure
NEMA 12, NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Four-pole
Number of wires
4
Type
Heavy duty fusible safety switch
Amperage Rating
200A
HP rating - max
125, 150/ 40 hp (480,600 V @3PH/250 Vdc)
NEMA rating
NEMA 12/3R
Voltage - max
600 V
Voltage rating
600 V
Product Category
Heavy Duty, Fusible without neutral
200 A amperage rating with four-pole design enables high-load motor circuits to be protected with a compact form factor. The business impact is reduced fuse maintenance and safer switching sequences, minimizing downtime in machine lines and control panels. This is ideal for motor control centers and heavy machinery feeders in manufacturing plants. NEMA 12/NEMA 3R enclosure and painted galvanized steel enclosure provide weather and dust resistance, which translates into lower corrosion-related maintenance and longer service life. Field modification capability to meet NEMA 3R rainproof requirements adds installation flexibility in exposed locations. Fusible without neutral configuration and Class H fuse provisions simplify sourcing and field adaptation, reducing spare parts inventory while maintaining high fault isolation. 600 V ratings and #6-300 kcmil copper/aluminum conductor compatibility enable scalable solutions for diverse drive systems and power distribution schemes. UL Listed certification and four-wire, four-pole arrangement improve safety compliance and ease of integration with existing protective relays and control logic. A one-year warranty from installation (or eighteen months from shipment) provides financial protection against early failures and supports asset lifecycle planning. Installation considerations: 37.5 in depth, 11.5 in height, 19 in width, and a weight of 58 lb help with fit checks and mounting calculations in panel spaces, while the drain hole option supports field modifications in adverse climates.
Get a Quick Quote for a Eaton DH464FDK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH464FDK?
Enquire Now
FAQs
DH464FDK is designed for four-pole, four-wire configurations and fits standard industrial panel footprints that require a NEMA 12/3R enclosure. It supports field modifications to meet weatherproof requirements and aligns with common control relay schemes, easing retrofits and new installations alike while reducing wiring complexity.
The unit is rated for 200 A with a maximum of 600 V, featuring four-pole, four-wire configuration and fusible without neutral. It uses Class H fuses and is UL Listed, supporting copper and aluminum conductors from #6 to 300 kcmil. The enclosure is NEMA 12/NEMA 3R compatible, providing robust protection in diverse environments.
Yes. While standard installation is NEMA 12, the DH464FDK can be field modified to meet NEMA 3R rainproof requirements by opening a factory drain hole. This enables outdoor or damp-location service without compromising safety or performance, making it suitable for exposed plant areas.
The DH464FDK carries UL Listed certification, confirming adherence to stringent safety standards. Its NEMA 12/3R enclosure rating and four-pole, four-wire configuration support compliant protection for industrial panels, drive systems, and motor protection schemes within controlled industrial environments.
The 58 lb heavy-duty design reduces handling risk during maintenance, while the Class H fusible configuration minimizes downtime during fuse changes. The product warranty—one year from installation or eighteen months from shipment—offers asset protection and predictable lifecycle budgeting, contributing to lower total cost of ownership in chronic maintenance environments.
