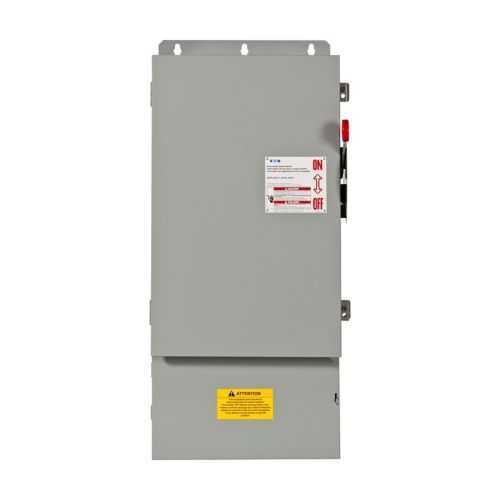

Eaton DH464SNGKLC Heavy Duty Safety Switch - UL Listed
Part Number: DH464SNGKLC
Quick Summary
The Eaton DH464SNGKLC is a heavy-duty safety switch for reliable power isolation in industrial equipment. Engineers face costly downtime and unsafe wiring when selecting disconnects that don’t match harsh factory environments. UL Listed certification ensures safety compliance, while the rugged NEMA 1 enclosure supports indoor applications in demanding spaces. Designed for compatibility with Cam-Lok connectors and Series K configurations, it offers fast installation and reliable maintenance in an industrial setting. This combination supports safer shutdowns, reduces spare parts inventory, and aligns with industrial safety programs. For procurement teams, the compact footprint (18.57 in depth, 40.89 in height, 13.68 in width) simplifies cabinet design and installation planning. This makes it a practical choice for OEMs and industrial integrators aiming for safer, faster deployments.
Product Information
Extended Description
DH464SNGKLC Eaton: Eaton Quick Connect Safety Switch, Heavy Duty, Single-Throw, 200A, 600V, 4P, Fusible with switched neutral, Series K, NEMA 1, Cam-Lok
Product Name
Eaton quick connect heavy duty safety switch
Catalog Number
DH464SNGKLC
UPC
786685374246
Product Length/Depth
18.57 in
Product Height
40.89 in
Product Width
13.68 in
Product Weight
140 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Special features
Cam-Lok
Type
Heavy Duty, Single-Throw
Amperage Rating
200A
Number Of Poles
Four-pole
Voltage rating
600 V
Enclosure
NEMA 1
Fuse configuration
Fusible with switched neutral
Series
Series K
Commercial Distribution, Switching Devices, Volume 2, Tab 1
ARMS Enclosed Circuit Breaker
ARMS Enclosed Circuit Breaker
ARMS Enclosed Circuit Breaker
ARMS Enclosed Circuit Breaker
Eaton Specification Sheet - DH464SNGKLC
Feature: Heavy-duty four-pole design delivering 200A at 600V with fusible wiring and a switched neutral. Business Impact: Provides robust electrical isolation and arc-flash protection, reducing downtime and maintenance risk in demanding environments. Application: Ideal for large motor loads in switchgear and control panels where reliable fault isolation is critical. Long-tail keywords: heavy duty safety switch, 200A safety switch, fusible with switched neutral. Feature: Cam-Lok quick-connect capability and Series K compatibility. Business Impact: Speeds up field wiring and reduces installation time, lowering total installed cost. Application: Machinery lines and process equipment that require rapid replacement or maintenance. Long-tail keywords: Cam-Lok connectors, Series K safety switch, quick-connect wiring. Feature: NEMA 1 enclosure with UL Listed certification. Business Impact: Provides dust protection and proven safety compliance for indoor installations, simplifying procurement and audit readiness. Application: Indoor control cabinets and electrical rooms in manufacturing facilities. Long-tail keywords: NEMA 1 enclosure, UL Listed, indoor protection. Feature: Defined dimensions and weight for cabinet integration. Business Impact: Predictable footprint enables smoother panel design and less retrofitting, cutting integration risk. Application: Data centers, food and beverage lines, and packaging machinery where space is optimized. Long-tail keywords: 18.57 in depth, 40.89 in height, 13.68 in width, 140 lb weight. Feature: Warranty and support terms. Business Impact: Clear ownership and service expectations reduce long-term maintenance surprises and support costs. Application: OEM contracts and aftermarket service planning. Long-tail keywords: Eaton warranty 25-000, one year from installation, 18 months from shipment.
Get a Quick Quote for a Eaton DH464SNGKLC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH464SNGKLC?
Enquire Now
FAQs
The DH464SNGKLC is designed as a four-pole, 200A, 600V fusible safety switch with switched neutral, compatible with Cam-Lok connectors and Series K configurations. It fits indoor NEMA 1 environments and supports straightforward mounting in standard control cabinets. When planning installation, verify cabinet depth (18.57 in) and width (13.68 in) to ensure clearances and wiring access for safe, code-compliant commissioning.
Key specs include a 200A amperage rating, 600V voltage rating, four poles, and a fusible with switched neutral configuration. The product is UL Listed and housed in a NEMA 1 enclosure for indoor use. It weighs about 140 lb and has dimensions that support integration into medium- to large-scale control panels and switchgear assemblies.
Yes. With four poles, 200A rating, and 600V capability, it is well-suited for motor control centers and large equipment disconnects. The Cam-Lok wiring option and Series K compatibility simplify field wiring, while the NEMA 1 enclosure ensures robust indoor protection. Its fusible with switched neutral configuration also supports coordinated protection strategies.
The DH464SNGKLC carries UL Listed certification, indicating compliance with established safety standards for electrical equipment. While designed for indoor, indoor cabinet installations with a NEMA 1 enclosure, always cross-check with your local regulatory requirements and plant safety programs to ensure full conformance in your specific deployment.
Maintenance expectations center on routine inspection of connections and fuse status, with the rugged Series K platform supporting long service life in demanding environments. ROI comes from reduced downtime, safer operator procedures, and predictable warranty terms (one year from installation or 18 months from shipment), which helps control long-term ownership costs and parts planning.
