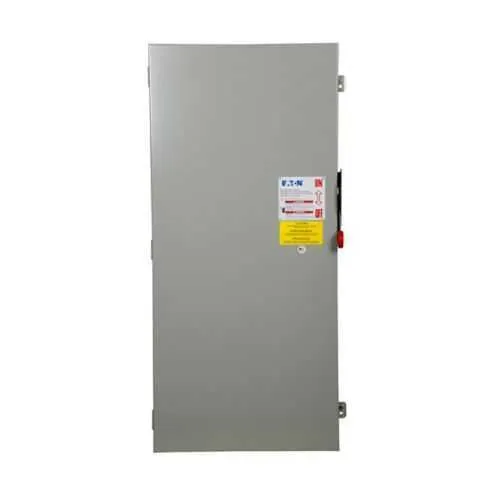

Eaton DH466FGK Heavy duty fusible safety switch - UL Listed
Part Number: DH466FGK
Quick Summary
Eaton DH466FGK heavy duty fusible safety switch provides safe isolation for 3‑phase motor circuits in industrial control panels. In the field, uptime suffers when protection enclosures are hard to access, wiring configurations are scattered, or maintenance requires invasive work. This UL Listed device uses a NEMA 1 painted steel enclosure and Class H fuse provision to deliver reliable protection in interior environments, while supporting up to 600 V and 600 A. With its robust construction, it pairs well with standard control gear and provides clear compatibility for panel builders and OEMs seeking durable, compliant motor protection that scales with line current and HP ratings.
Product Information
Extended Description
DH466FGK Eaton: Eaton Heavy duty single-throw fused safety switch, 600 A, NEMA 1, Painted steel, Class H, Fusible without neutral, Four-pole, Four-wire, 600 V, Max Hp: 400, 500 hp (480,600 V @3PH), 600 V, (1)#2-(1)600 kcmil; and (1)#1/0-(1)750 kcmil Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH466FGK
UPC
782113952222
Product Length/Depth
58 in
Product Height
12 in
Product Width
27.5 in
Product Weight
155 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Four-pole
Number of wires
4
Type
Heavy duty fusible safety switch
Amperage Rating
600A
HP rating - max
400, 500 hp (480,600 V @3PH)
NEMA rating
NEMA 1
Voltage - max
600 V
Voltage rating
600 V
Product Category
Heavy Duty, Fusible without neutral
High-current protection for large motors helps minimize fault energy and protects critical drive trains. The DH466FGK is rated for up to 600 A and supports 400–500 hp (480/600 V, 3-phase), enabling reliable isolation of large motors on conveyors, pumps, and presses. This translates to longer motor life, reduced maintenance, and improved plant uptime in demanding manufacturing environments. Four-pole, fusible without neutral design simplifies wiring for multi-line circuits and ensures a complete disconnect across all phases, reducing the risk of linger energization during maintenance. This also streamlines installation in control panels and switchgear assemblies, delivering a safer, faster commissioning process with fewer field wiring errors. The NEMA 1 enclosure in painted steel provides interior protection suitable for dry, indoor environments, while the Class H fuse provision delivers fast-acting protection for short-circuit events. This combination supports compliance with common electrical codes and reduces the total cost of ownership by limiting corrosion and maintenance needs. UL Listed certification underpins safety and reliability, complemented by a one-year warranty (or 18 months from shipment per policy), giving technicians confidence during installation and service. Users benefit from reduced risk and clearer procurement specifications when specifying motor-disconnect gear for new builds or retrofits. Conductor termination accepts substantial feeder sizes, including up to (#2–600 kcmil) Al and (#1/0–750 kcmil) Al configurations, enabling flexible feeder design and future system expansion without replacing switchgear. This reduces retrofit costs and supports long-term electrical corridor planning. Overall, the DH466FGK combines robust protection, straightforward installation, and scalable current handling to support uptime, safety, and compliance in industrial power-distribution and motor-control applications.
Get a Quick Quote for a Eaton DH466FGK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH466FGK?
Enquire Now
FAQs
The DH466FGK is rated for 600 V and designed for 3-phase motor circuits, with a four-pole, four-wire configuration and fusible protection without neutral. It supports up to 400–500 hp at 480/600 V, enabling straightforward integration into standard industrial drives and control panels while maintaining safe disconnection and ease of maintenance.
Best suited for high-power, indoor motor protection in manufacturing environments, including conveyors, pumps, and heavy machinery. With a 600 A rating and HP range up to 400–500 hp at 480/600 V, it provides reliable isolation and protection for large motors, reducing outage duration and protecting drive systems during faults.
Yes, the DH466FGK is UL Listed, confirming safety compliance for industrial installations. It uses a NEMA 1 painted steel enclosure, suitable for interior applications, and designed to withstand routine facility conditions while maintaining protector integrity and ease of access for maintenance.
The device supports large feeder terminations, including up to #2–600 kcmil aluminum and #1/0–750 kcmil aluminum options. This provides flexibility for high-current feeders and future upgrades, reducing the need for conductor rework and enabling scalable motor circuits within existing switchgear.
Warranty follows Eaton’s policy: one year from installation or 18 months from shipment, whichever occurs first. Official datasheets and specifications are available from Eaton's catalog pages, including the DH466FGK product sheet, ensuring accurate installation guidance and performance expectations.
