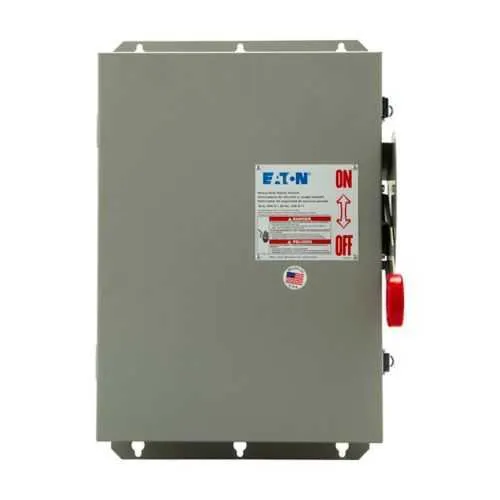

Eaton DH466FGKV Heavy Duty Fusible Switch - UL Listed
Part Number: DH466FGKV
Quick Summary
Eaton heavy duty fusible safety switch provides reliable power isolation for industrial equipment and commercial installations. Downtime and protection gaps cost money when protection devices are hard to service or install, leading to longer repairs. UL Listed certification supports safe operation in demanding environments, and the rugged NEMA 1 enclosure protects against indoor dust and incidental moisture. This product aligns with electrical protection and circuit control strategies, delivering strong reliability for OEMs and maintenance teams. By choosing a documented, field-ready switch like DH466FGKV, teams gain faster installation, safer operation, and predictable lifecycle costs in heavy industrial settings.
Product Information
Extended Description
DH466FGKV Eaton: Eaton Heavy duty single-throw fused safety switch, Enhanced visible blade, 4 blade, 600 A, NEMA 1, Cartridge, Four-pole, Four-wire, 600 V, Max Hp: 400, 500 hp (480,600 V @3PH), 600 V, (1)#2-(1)600 kcmil; and (1)#1/0-(1)750 kcmil Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH466FGKV
UPC
786680181146
Product Length/Depth
58 in
Product Height
12 in
Product Width
27.5 in
Product Weight
155 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Enhanced Visible-Blade (No Window)
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse class provision
Cartridge
Fuse configuration
Fusible without neutral
Number Of Poles
Four-pole
Number of wires
4
Type
Heavy duty fusible safety switch
Amperage Rating
600A
HP rating - max
400, 500 hp (480,600 V @3PH)
NEMA rating
NEMA 1
Voltage - max
600 V
Voltage rating
600 V
Application
Heavy commercial and industrial
Series
K
Enhanced Visible-Blade design delivers immediate status visibility, reducing misoperations and improving operator safety in crowded control panels. Business impact: faster fault diagnosis and reduced downtime, especially during lockout/tagout procedures. Application: ideal for heavy-duty switchgear in manufacturing and processing facilities where reliability is critical. The 600 A amperage rating and four-pole, four-wire configuration support high-power motors and complex distribution schemes, delivering consistent performance with less wiring complexity. Business impact: minimized arc-flash exposure and fewer nuisance trips, enabling higher line uptime. Application: suitable for large conveyors, pumps, and extrusion lines in metalworking and plastics facilities. Cartridge fuse provision with fusible without neutral configuration simplifies maintenance and field replacement. Business impact: reduced maintenance time and stocking costs. Application: main service switches and motor control centers. NEMA 1 enclosure and painted steel construction offer indoor protection against dust and incidental moisture. Business impact: durable protection for indoor industrial environments. Application: control panel retrofits and new installations requiring rugged protection. The four-pole design and 4 wires enable straightforward integration with standard industrial control circuits. Business impact: faster wiring, clear fault paths, and easier compliance checks. Application: panel builders and OEM equipment enclosures. Warranty and UL Listed certification provide assurance of long-term support and regulatory alignment. Business impact: predictable support terms and safer operation across plant sites. Application: enterprise-wide electrical protection strategies and service contracts.
Get a Quick Quote for a Eaton DH466FGKV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH466FGKV?
Enquire Now
FAQs
The DH466FGKV is a four-pole, four-wire unit designed for indoor NEMA 1 installations. When retrofitting or panel-building, ensure cabinet clearance for the 58 in depth and 27.5 in width, and allow proper space for cartridge fuse access. Verify compatible bus connections and fuse cartridge availability to minimize downtime during commissioning.
Key ratings include a 600 A amperage, 600 V maximum voltage, and a four-pole four-wire configuration. It supports up to 400–500 hp at 480–600 V three-phase, making it suitable for large motors and heavy protection duties in industrial settings.
Yes. The DH466FGKV is rated for 600 V and is configured for heavy-duty, four-pole operation with cartridge fuses, aligning with industrial drive and protection schemes used in heavy machinery and processing lines.
The DH466FGKV carries UL Listed certification, which supports safety and compliance in industrial environments. In addition, its NEMA 1 enclosure and cartridge fuse configuration align with standard industry practices for indoor protection and maintenance efficiency.
The enhanced visible blade provides clear, immediate status indication without needing a viewing window. This reduces misoperations during testing or maintenance, shortens fault-diagnosis cycles, and supports safer lockout/tagout procedures across production lines.
