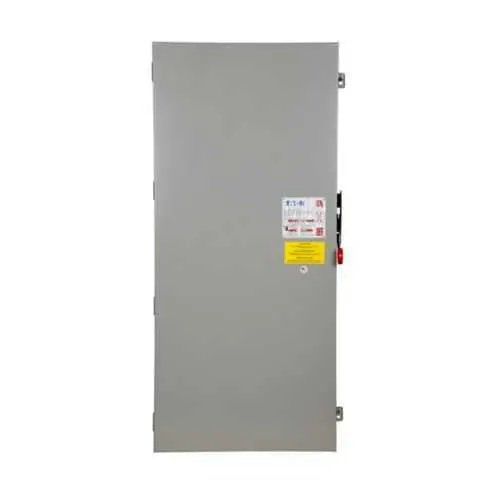

Eaton DH467FGK Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH467FGK
Quick Summary
Eaton heavy duty fusible safety switch isolates large three-phase circuits in industrial power distribution. Downtime and safety compliance challenges cost plants time and money, especially when switching high-current loads. UL Listed certification and an indoor NEMA 1 enclosure with Class L fusing support reliable, compliant isolation across 800 A circuits up to 600 V. For engineers and technicians, this device pairs with four-pole, four-wire layouts, delivering straightforward installation and long-term operational stability. In retrofit projects, the DH467FGK helps minimize wiring complexities while meeting plant-wide safety and reliability targets, supporting ongoing maintenance and simple spare-part planning. It is suited for high-current protection in 800 A motor feeders, with a clear path to compliance for industrial norms and safety audits.
Product Information
Extended Description
DH467FGK Eaton: Eaton Enhanced visible blade single-throw safety switch, 800 A, NEMA 1, Painted steel, Class L, Fusible without neutral, Four-pole, Four-wire, 600 V, 600 V, (4)#1/0-(4)750 kcmil Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH467FGK
UPC
786685234908
Product Length/Depth
57.5 in
Product Height
12.38 in
Product Width
27.5 in
Product Weight
204 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse class provision
Class L
Fuse configuration
Fusible without neutral
Number Of Poles
Four-pole
Number of wires
4
Type
Heavy duty fusible safety switch
Amperage Rating
800A
HP rating - max
500 at 480 Vac TD 3 Ph, 500 at 600 Vac TD 3 Ph
NEMA rating
NEMA 1
Voltage - max
600 V
Voltage rating
600 V
Product Category
Heavy Duty, Fusible without neutral
An 800 A amperage rating provides headroom for large motor loads, enabling fewer parallel devices and simplified protection coordination. This translates to measurable uptime improvements and reduced spare-part inventory in manufacturing facilities. Applications include heavy machinery lines, conveyors, and pump stations in industrial power distribution. The four-pole, four-wire configuration simplifies control circuits, reduces wiring complexity, and improves fault clearance for safer operation on three-phase systems. The NEMA 1 painted steel enclosure protects indoor equipment from dust and incidental contact, easing installation on standard racks or switchgear rooms. Class L fuse design offers selective coordination, helping protect critical feeders while isolating faults quickly to minimize process disruption. With a 600 V rating and a HP rating up to 500 at 480 Vac or 600 Vac, the switch supports common plant voltages, improving compatibility and reducing design trade-offs.
Get a Quick Quote for a Eaton DH467FGK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH467FGK?
Enquire Now
FAQs
The DH467FGK provides safe isolation for large motor and process line circuits in industrial power distribution. With an 800 A rating, four-pole, four-wire configuration, and a 600 V capacity, it supports high-current protection for three-phase systems. Its rugged NEMA 1 enclosure and Class L fusing simplify installation, maintenance planning, and compliance checks across plant floor environments.
Yes. The four-pole, four-wire design is specifically intended for three-phase power networks. It supports up to 800 A and 600 V, with a HP rating up to 500 at both 480 Vac and 600 Vac TD 3 Ph configurations, making it suitable for high-load motor feeders, conveyors, and heavy equipment in industrial facilities.
The DH467FGK carries UL Listed certification, indicating electrical safety compliance for industrial use. It also employs a NEMA 1 indoor enclosure for basic environmental protection. The Class L fuse configuration contributes to selective coordination, improving fault isolation and safety during maintenance and audits.
Key dimensions are 57.5 in (length/depth) by 27.5 in (width) by 12.38 in (height), with a weight of 204 lb. It is designed for indoor mounting in switchgear rooms or equipment rooms, compatible with four-pole, four-wire layouts. Ensure proper mounting surface, space for wiring, and adherence to UL and local electrical codes during retrofits or new installations.
The DH467FGK follows Eaton’s standard warranty policy: one year from the date of installation or eighteen months from the date of shipment, whichever occurs first. This coverage supports replacement or repair for manufacturing defects and ensures long-term reliability in plant environments.
