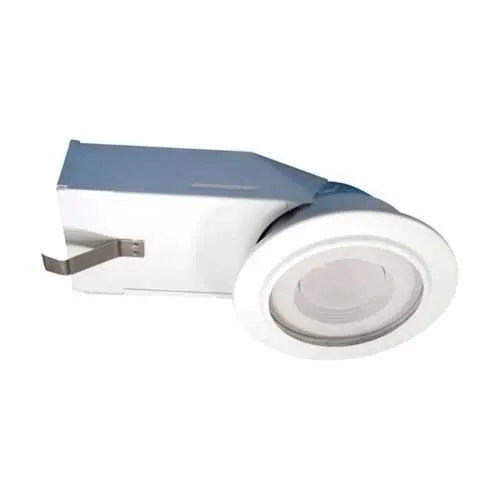

Eaton DLL14 DL down light - 120-277 VAC, 14W NEC/CEC
Part Number: DLL14
Quick Summary
Eaton DLL14 DL down light provides efficient recessed lighting for industrial and marine interiors. When reliable illumination is non-negotiable, retrofit delays and inconsistent performance can derail projects. This luminaire adheres to NEC/CEC standards and is rated for Ordinary/Non-Hazardous locations, with a rugged zinc-coated steel housing to resist corrosion. Engineers appreciate the predictable form factor—12.44 in long, 4 lb weight—which simplifies ceiling installations and retrofit work. With 120–277 VAC and 50/60 Hz compatibility, you can standardize on a single driver stock, reducing inventory and procurement time while delivering consistent, energy-efficient lighting across facilities.
Product Information
Extended Description
DLL14 Eaton: Eaton Crouse-Hinds series Pauluhn Meridian DL down light, 50/60 Hz, Zinc coated steel, 120-277 Vac, 14W
Product Name
Eaton Crouse-Hinds series Pauluhn Meridian DL down light
Catalog Number
DLL14
UPC
662276390034
Product Length/Depth
12.44 in
Product Height
3.94 in
Product Width
4.94 in
Product Weight
4 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Wattage
14W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Material
Zinc coated steel
Eaton Crouse-Hinds DLL14 3D drawing
Crouse-Hinds series Pauluhn DL LED Marine Interior Recessed Lights flyer
Crouse-Hinds series Pauluhn DL LED Recessed Lights catalog page
Eaton Specification Sheet - DLL14
Zinc-coated steel housing delivers corrosion resistance in humid or marine environments, reducing maintenance cycles and downtime in harsh applications. This structural durability directly translates to lower lifecycle costs and fewer field repairs in shipyards, offshore facilities, and industrial plants. The DLL14’s electrical footprint is streamlined for 120-277 VAC and 50/60 Hz, enabling a single, widely available driver strategy that cuts spare parts and inventory complexity while simplifying installation in new-builds or retrofits. At 14W, the luminaire provides energy-efficient operation with lower heat output, contributing to improved indoor air quality and reduced cooling loads in confined spaces. NEC/CEC compliance and Ordinary/Non-Hazardous location ratings help ensure code-conforming performance in commercial, manufacturing, and non-hazardous marine environments. The compact 12.44 inch length and 4 lb weight support easy retrofit in tight ceiling plenums, with straightforward mounting and wiring. Availability of CAD drawings and literature accelerates engineering approvals and project timelines, helping teams meet aggressive installation schedules without compromising safety or reliability.
Get a Quick Quote for a Eaton DLL14
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DLL14?
Enquire Now
FAQs
DLL14 is a recessed LED down light with a 12.44 in length, 4.94 in width, and 3.94 in height, weighing 4 lb. For installation, ensure the area is Ordinary/Non-Hazardous and wired to 120-277 VAC with a 50/60 Hz supply. Use proper ceiling cutouts, secure mounting, and verify NEC/CEC compliance. The fixture’s compact footprint supports retrofit in tight plenums and standard electrical boxes.
DLL14 operates at 120-277 VAC with a 50/60 Hz frequency rating and consumes 14W. This combination enables a single-driver approach, reducing inventory complexity and wiring variations. The wide voltage range supports diverse supply conditions, while the low wattage minimizes heat generation and energy costs, contributing to reliable, long-term operation in industrial and marine interiors.
DLL14 features a zinc-coated steel housing and is designed for Ordinary/Non-Hazardous locations, making it suitable for marine interior applications where corrosion resistance and reliable recessed lighting are needed. While not rated for hazardous areas, its robust construction supports demanding non-hazardous settings such as shipyards, warehouses, and manufacturing floors.
DLL14 complies with NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations. This ensures code-compliant performance in typical commercial and industrial interiors, aligning with regulatory requirements while delivering energy-efficient LED illumination for maintenance-friendly operation.
The 14W LED down light delivers low power consumption and reduced cooling loads, contributing to energy savings over time. Its zinc-coated housing resists corrosion in humid environments, lowering maintenance frequency. A compact footprint and lightweight design simplify installation and retrofit projects, shortening project timelines and reducing labor costs. Access to CAD drawings and literature also accelerates engineering approvals and procurement decisions.
