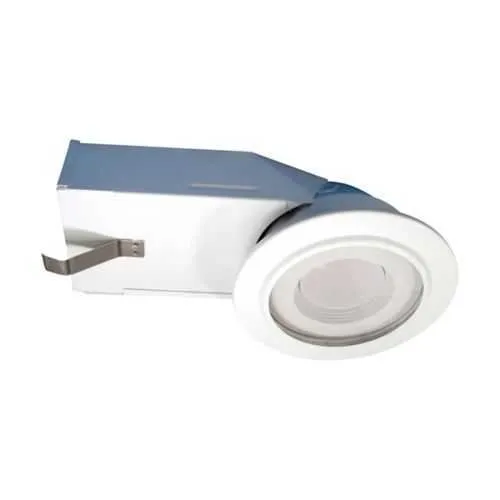

Eaton DLL14-35K DL Down Light - 3500K Color Temperature

Part Number: DLL14-35K
Manufacturer
Eaton
Part number
DLL14-35K

Quick Summary

Eaton DLL14-35K DL down light provides efficient recessed illumination for industrial facilities and commercial spaces. This fixture helps address frequent maintenance and downtime costs by delivering reliable performance in a compact form. It complies with NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations, simplifying code adherence in typical factory or warehouse environments. With a 120–277 VAC supply and 50/60 Hz operation, it pairs with common power distributions while delivering consistent color at 3500K. The 12.44 inch length, 3.94 inch height, and 4.94 inch width support versatile ceiling layouts, and at about 4 pounds installation is straightforward for retrofit projects. This makes energy-efficient LED recessed lighting a practical choice for industrial lighting and commercial applications, boosting uptime and reducing operating costs.

Product Information

Extended Description

DLL14-35K Eaton: Eaton Crouse-Hinds series Pauluhn Meridian DL down light, 50/60 Hz, Zinc coated steel, 3500K, 120-277 Vac, 14W
Product Name
Eaton Crouse-Hinds series Pauluhn Meridian DL down light
Catalog Number
DLL14-35K
UPC
662276579514
Product Length/Depth
12.44 in
Product Height
3.94 in
Product Width
4.94 in
Product Weight
4 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Wattage
14W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Material
Zinc coated steel
Special features
3500K
Feature → Business Impact → Application: The DLL14-35K uses a low 14W power draw while supporting a wide 120-277 VAC range and 50/60 Hz frequency, reducing energy consumption and inventory complexity for facilities with varied power distribution. This translates to lower operating costs and simpler procurement across warehouses and light-industrial spaces. Application: ideal for retrofit projects in manufacturing floors and distribution centers where energy efficiency and reliable performance are critical. Feature → Business Impact → Application: Zinc-coated steel housing provides robust durability and corrosion resistance in indoor environments, extending luminaire life in maintenance corridors and racking areas. Application: suitable for command centers, shops, and maintenance bays where physical abuse and moisture exposure are minimal but reliability matters. Feature → Business Impact → Application: The compact form factor—12.44 in length, 3.94 in height, 4.94 in width—along with a 4 lb weight simplifies installation and retrofit in standard ceilings, reducing labor time and disruption. Application: aligns with contractor workflows during facility upgrades and new builds in industrial and commercial settings. Feature → Business Impact → Application: Color temperature of 3500K delivers a neutral white light that enhances color rendering and productivity in work environments, supporting better accuracy in assembly, inspection, and packing tasks. Application: supports general-purpose LED recessed lighting in warehouses, workshops, and light manufacturing areas. Feature → Business Impact → Application: NEC/CEC compliance and Ordinary/Non-Hazardous Location rating simplify regulatory planning and reduce risk during project approvals, guaranteeing fit-for-purpose performance in typical operating conditions. Application: essential for facilities aiming to meet code requirements while minimizing risk during audits and inspections.

Get a Quick Quote for a Eaton DLL14-35K

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton DLL14-35K? Enquire Now

FAQs

DLL14-35K measures 12.44 in long, 3.94 in high, and 4.94 in wide with an approximate 4 lb weight, making retrofit and new-installations straightforward in typical ceiling bays. It requires a standard power source within 120-277 VAC and 50/60 Hz service. Ensure proper in-ceiling mounting and an appropriate junction box to meet NEC/CEC requirements and maintain the Ordinary/Non-Hazardous Location rating.
The DLL14-35K operates at 14W with a voltage rating of 120-277 VAC and a frequency of 50/60 Hz. This broad voltage range reduces the need for multiple part numbers and simplifies inventory while delivering energy-efficient illumination suitable for long operating hours in warehouses and manufacturing spaces.
DLL14-35K is rated for Ordinary/Non-Hazardous Locations per the product specifications. It is not intended for hazardous environments. For compliance, ensure the installation site and mounting conditions align with NEC/CEC requirements and verify local codes for any location-specific constraints.
DLL14-35K adheres to NEC/CEC standards and is certified for Ordinary/Non-Hazardous Locations. This alignment helps streamline code compliance during design reviews and commissioning in standard industrial and commercial facilities.
LED recessed solutions like DLL14-35K typically deliver long service life and reduced maintenance compared with legacy technologies, lowering replacement frequency and labor costs. Its low 14W draw, wide voltage range, and standard form factor further contribute to favorable total cost of ownership in manufacturing, warehousing, and office-adjacent spaces.
