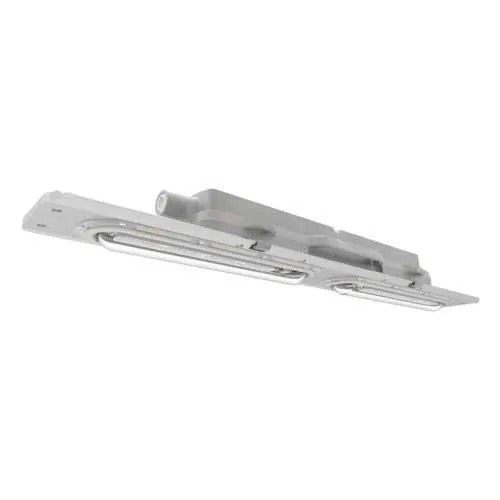

Eaton DLLA4-UNV1-S903-EM1-P-M2 LED Fixture - IP66/IP67

Part Number: DLLA4-UNV1-S903-EM1-P-M2
DLLA4-UNV1-S903-EM1-P-M2
Manufacturer
Eaton
Part number
DLLA4-UNV1-S903-EM1-P-M2
Category

Quick Summary

Eaton DLLA4-UNV1-S903-EM1-P-M2 LED fixture provides high-efficiency linear lighting for hazardous-location industrial applications. Installers often struggle with downtime, limited access, and code compliance when upgrading luminaires in Class I Division 2 and Zone 2 environments. This fixture carries NEC/CEC standards, IP66/IP67 protection, and a NEMA 4X rating to withstand demanding conditions in chemical plants, refineries, and offshore facilities. Designed for flush-ceiling mounting, it also integrates emergency battery backup to reduce downtime, while delivering 8000 lumens at 135 lm/W for dependable, long-life illumination in tough spaces. The result is safer operations, lower maintenance costs, and faster retrofits in industrial facilities requiring rugged, compliant lighting solutions.

Product Information

Extended Description

DLLA4-UNV1-S903-EM1-P-M2 Eaton: Eaton Crouse-Hinds series Pauluhn DLLA linear LED, Cool white, 3/4" entries, Painted gray epoxy, 4 ft, Polycarb lens, 8000 lm, 135 lm/W, Copper-free alum, Flush ceil mt, Wide, >0.94 PF, Integral emerg battery, 120-277 Vac, 127/250 Vdc, 59W
Product Name
Eaton Crouse-Hinds series Pauluhn DLLA linear LED light fixture
Catalog Number
DLLA4-UNV1-S903-EM1-P-M2
UPC
786689717100
Product Length/Depth
39 in
Product Height
4.42 in
Product Width
7.13 in
Product Weight
23.5 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 2 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66 IP67
Lamp type
LED
Color temperature
Cool white
Lamp length
4 ft
Lumens
8000
Lumens per watt
135
Optical distribution
Wide
Mounting Method
Flush ceiling
Voltage rating
120-277 Vac, 127/250 Vdc
Frequency rating
50/60 Hz
Lens material
Polycarbonate
Entry size
3/4"
Finish
Painted gray epoxy
Material
Copper-free aluminum
Wattage
59W
Power factor
> 0.94
Special features
Integral emergency battery back-up
Crouse-Hinds series Pauluhn DLLA LED Linear brochure Crouse-Hinds series Pauluhn DLLA Linear LED catalog page Champ MLLA and Pauluhn DLLA Linear LED and Champ VMVL Intelligent LED Fixtures UL certification (Marine) Champ MLLA and Pauluhn DLLA Linear LED and Champ VMVL Intelligent LED Fixtures UL certification (Marine) Champ MLLA and Pauluhn DLLA Linear LED and Champ VMVL Intelligent LED Fixtures UL certification (Marine) IF 1947 - DLLA-M2 Linear LED with Emergency Battery Back-up IF 1947 - DLLA-M2 Linear LED with Emergency Battery Back-up IF 1947 - DLLA-M2 Linear LED with Emergency Battery Back-up Pauluhn DLLA LED Linear Pauluhn DLLA LED Linear
Feature: Hazardous-location rated LED linear fixture with Class I Division 2, Zone 2, Class II Division 2, and Class III approvals. Benefit: Ensures code-compliant installation in high-risk areas, reducing risk and facilitating permit-ready projects. Application: Chemical processing plants and oil-and-gas facilities where rugged protection is mandatory. Feature: IP66/IP67 and NEMA 4X protection. Benefit: Provides robust ingress resistance to dust, water, and jets, extending service life in washdown and harsh environments. Application: Marine terminals, onshore/offshore facilities, and outdoor industrial spaces. Feature: Integral emergency battery back-up. Benefit: Maintains critical lighting during power interruptions, improving safety and compliance with life-safety requirements. Application: Emergency egress and safety illumination in hazardous locations. Feature: High-efficiency LED performance: 8000 lumens at 59W (135 lm/W). Benefit: Lower energy consumption, cooler operation, and reduced total cost of ownership over the fixture’s life. Application: General area lighting and task illumination in factories and plants. Feature: 4 ft length with 3/4" entries and flush ceiling mounting. Benefit: Easy installation in restricted ceilings with minimal footprint, simplifying retrofits. Application: Replacements in existing droop-ceiling layouts and new hazardous-location projects requiring a slim, flush profile. Feature: Copper-free aluminum housing, polycarbonate lens, painted gray epoxy finish. Benefit: Corrosion resistance in harsh environments and long-lasting optical clarity. Application: Chemical processing, washdown environments, and marine facilities.

Get a Quick Quote for a Eaton DLLA4-UNV1-S903-EM1-P-M2

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton DLLA4-UNV1-S903-EM1-P-M2? Enquire Now

FAQs

The DLLA4-UNV1-S903-EM1-P-M2 is designed for flush ceiling mounting with a 39 inch length and a 3/4 inch entry size. Its copper-free aluminum housing and polycarbonate lens support rugged indoor or outdoor installations, while the 4 ft form factor fits common industrial ceilings. For installation, ensure proper clearance for the integrated emergency battery and prepare raceways during wiring on 120-277 Vac circuits. The weight is 23.5 lb, so use appropriate mounting hardware and supports rated for hazardous locations.
This luminaire is rated for Hazardous/Classified Locations with NEC/CEC standards compliance, including Class I Division 2 and Zone 2, Class II Division 2, and Class III. It also carries a NEMA 4X rating and IP66/IP67 protection, making it suitable for environments with dust, water exposure, and washdowns. When pairing with control gear, verify compatibility with 50/60 Hz supply and ensure installation adheres to local electrical codes.
Yes. The fixture’s IP66/IP67 protection, NEMA 4X rating, and hazardous-location approvals (Class I Div 2, Zone 2) make it ideal for offshore platforms and chemical processing facilities. The polycarbonate lens, copper-free aluminum housing, and epoxy gray finish resist corrosion and moisture. Its flush ceiling mounting and integrated emergency battery back-up support reliable operation during power interruptions in hostile environments.
The integral emergency battery back-up maintains illumination during power outages, enabling safe egress and continuity in critical areas. This reduces downtime, supports code-required life-safety provisions, and lowers risk-related costs. The long-life LED design reduces maintenance cycles, while energy efficiency (8000 lm at 59 W) lowers ongoing electricity expenses, contributing to a favorable total cost of ownership in hazardous locations.
Verify lumen output (8000 lm), power (59 W), color temperature (Cool white), voltage range (120-277 Vac, 127/250 Vdc), frequency (50/60 Hz), lens material (polycarbonate), and finish (painted gray epoxy). Confirm ratings IP66/IP67, NEMA 4X, and hazardous-location approvals (Class I Div 2, Zone 2, Class II Div 2, Class III). Also ensure the 3/4 inch entry size and flush ceiling mounting fit your ceiling and wiring space.
