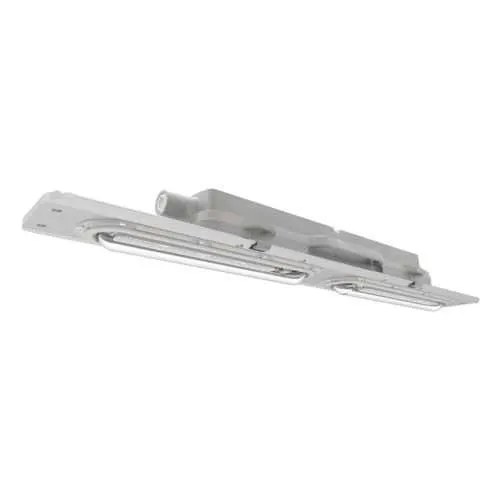

Eaton DLLAW4-UNV1-M2 LED Linear Light Fixture - IP67

Part Number: DLLAW4-UNV1-M2
DLLAW4-UNV1-M2
Manufacturer
Eaton
Part number
DLLAW4-UNV1-M2
Category

Quick Summary

The Eaton DLLAW4-UNV1-M2 LED linear light fixture provides robust hazardous-location illumination for industrial facilities. Plant downtime and unreliable lighting in tough environments cost time and money, so reliability is essential. It carries NEC/CEC compliance, Hazardous/Classified Locations ratings, and IP67/IP66 protection along with NEMA 4X construction. With 8000 lumens at 59 watts and a high efficacy of 135 lm/W, it reduces energy use while improving visibility across wide workspaces. Designed for flush ceiling mounting in a 4 ft configuration, it streamlines retrofits and speeds installation. This combination delivers long service life and predictable maintenance planning for plant managers.

Product Information

Extended Description

DLLAW4-UNV1-M2 Eaton: Eaton Crouse-Hinds series Pauluhn DLLA linear LED fixture, Warm white, 3/4" entries, Natural aluminum finish, 4 ft, Clear glass lens, 8000 lm, 135 lm/W, Copper-free alum, Flush ceiling mount, Wide, >0.94 PF, 120-277 Vac, 127/250 Vdc, 59W
Product Name
Eaton Crouse-Hinds series Pauluhn DLLA linear LED light fixture
Catalog Number
DLLAW4-UNV1-M2
UPC
786689775469
Product Length/Depth
39 in
Product Height
4.42 in
Product Width
7.13 in
Product Weight
23.5 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Zone 2 Class III Class I, Division 2 Class II, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP67 IP66
Lamp type
LED
Color temperature
Warm white
Lamp length
4 ft
Lumens
8000
Lumens per watt
135
Optical distribution
Wide
Mounting Method
Flush ceiling
Voltage rating
120-277 Vac, 127/250 Vdc
Frequency rating
50/60 Hz
Lens material
Glass
Entry size
3/4"
Finish
Natural aluminum
Material
Copper-free aluminum
Wattage
59W
Power factor
> 0.94
Crouse-Hinds series Pauluhn DLLA LED Linear brochure Crouse-Hinds series Pauluhn DLLA Linear LED catalog page Champ MLLA and Pauluhn DLLA Linear LED and Champ VMVL Intelligent LED Fixtures UL certification (Marine) Champ MLLA and Pauluhn DLLA Linear LED and Champ VMVL Intelligent LED Fixtures UL certification (Marine) Champ MLLA and Pauluhn DLLA Linear LED and Champ VMVL Intelligent LED Fixtures UL certification (Marine) IF 1943 - Champ Linear DLLA M2 LED Light Engine Fixtures IF 1943 - Champ Linear DLLA M2 LED Light Engine Fixtures IF 1943 - Champ Linear DLLA M2 LED Light Engine Fixtures Pauluhn DLLA LED Linear Pauluhn DLLA LED Linear
Feature: High-efficiency LED engine delivering 8000 lumens at 59 watts. Business Impact: Lowers energy costs and reduces heat load in busy production zones. Application: warehouses, production lines, and large-area industrial spaces in hazardous locations. Feature: Wide optical distribution with a glass lens for consistent illumination. Business Impact: Improves worker safety and reduces the need for additional fixtures or rework. Application: assembly areas, access corridors, and control rooms. Feature: Copper-free aluminum housing with natural aluminum finish and NEMA 4X/IP67/IP66 protection. Business Impact: Superior corrosion resistance and durable performance in wet or dusty environments, extending service life and reducing maintenance. Application: offshore rigs, chemical plants, and Class I Zone 2 locations. Feature: 3/4" entry and universal power tolerance 120-277 Vac, 127/250 Vdc at 50/60 Hz. Business Impact: Flexible integration with existing electrical infrastructure and controls; smoother retrofits and multi-power installations. Application: retrofit projects and new builds in mixed-power facilities. Feature: Flush ceiling mounting and 39 in body with 4 ft lamp length. Business Impact: Streamlined installation, clean ceiling aesthetics, and easier access for maintenance. Application: industrial ceilings and service corridors requiring unobtrusive illumination.

Get a Quick Quote for a Eaton DLLAW4-UNV1-M2

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton DLLAW4-UNV1-M2? Enquire Now

FAQs

The DLLAW4-UNV1-M2 supports a wide input range of 120-277 VAC and 127/250 VDC, operating at 50/60 Hz. This versatility enables straightforward retrofits into existing electrical infrastructures without requiring new transformers or power conditioning. It also supports mixed-power environments, simplifying procurement and installation across multi-site facilities.
This fixture is designed for Hazardous/Classified Locations with NEC/CEC compliance and NEC hazardous ratings including Class I, Zone 2; Class III; Class I, Division 2. It carries NEMA 4X protection and IP67/IP66 ratings for water and dust exclusion, ensuring reliable operation in challenging environments and facilitating regulatory approval.
Yes. The unit is designed for flush ceiling mounting with a durable glass lens and rugged aluminum housing. Its IP67/IP66 ratings protect against dust and moisture, making it ideal for dusty or damp industrial spaces while maintaining uniform illumination and minimal maintenance needs.
Plan for 3/4" entry wiring and ensure power feeds are rated for 120-277 VAC or 127/250 VDC. The flush-ceiling mounting simplifies alignment and reduces fixture protrusion, while the 4 ft lamp length supports long continuous runs. Verify a 39 in body length specification is suitable for the ceiling space and confirm mounting points align with structural supports.
With 59W input and 8000 lumens at up to 135 lm/W, the DLLAW4-UNV1-M2 delivers substantial energy savings compared to older luminaires. The LED design offers long service life and reduced maintenance in hazardous environments, minimizing downtime and lowering total cost of ownership over the fixture’s lifespan.
